Pressure Sensors
List of Pressure Sensors with TEDS

TEDS(Transducer Electronic Data Sheet)

What is TEDS system?

TEDS (Transducer Electronic Data Sheet) is a general term for the description format defined by IEEE standard. It allows the sensor-specific information to be read/written electronically from/to EEPROM incorporated in the sensor.

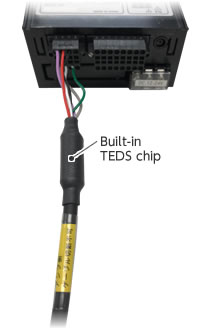

Writes information to the TEDS chip located at the end of sensor cable or inside of connector.
Chip information:
TEDS data / Rated capacity (unit) / Rated output of sensor / Max. excitation voltage / Input terminal resistance / Calibration date

  • Reads the sensor information at power ON to perform calibration.
  • Sensor information can be displayed and rewritten.
TEDS display

TEDS-compatible amplifiers

VGM4/VGMH

Model designation example

For models with TEDS, add -T to the model number, and specify the cable end treatment (Connector or Loose)

For VPRF Rated capacity 1MPa, Cable on sensor side, With TEDS

VPRF-1MPS-T(Cable 3 m, Standard connectors) Example: SK-S3-3M-T

Rated capacity 1MPa, Satndard connector on sensor side, With TEDS

VPRF-1MP-T(Cable 3 m, Loose wires on sensor side) Example: KN-S3-3M-T

Compatible list

Model VGMH VGM4
Amplifier side standard connectors Loose wires on amplifier side Loose wires on amplifier side
VPRT(F) VGMH
Connection example
*Image is for illustration purposes.

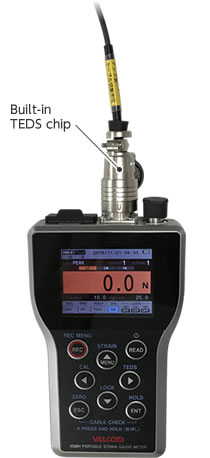

VGMH
Connection example
*Image is for illustration purposes.

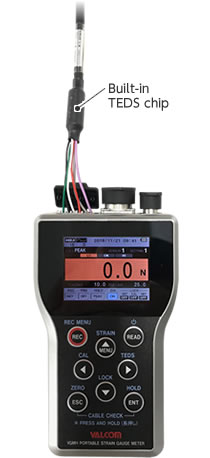

VGM4
Connection example
*Image is for illustration purposes.
VPRQ(F)
VPVT(F)
VPVQ(F)
VPG-2TH
VPRS
VPRF
VFM
VF
VTRF
VPGFS
VPGFM
VPRF2
VPRH2
VPRH

*Explosion-proof is not supported

Wiring connection diagram

Wiring connection diagram
