Specialized manufacturer of Digital Pressure Meters and Load Cells

VALCOM CO.,LTD.

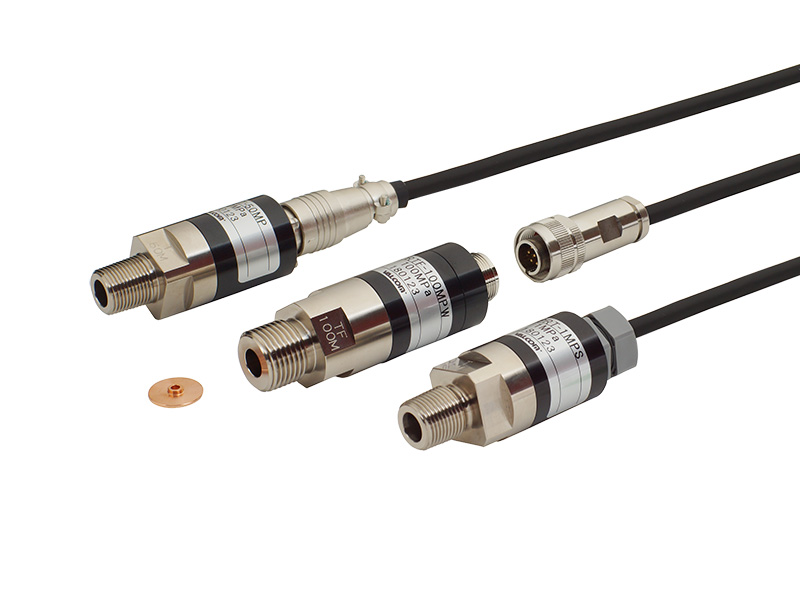

High Accurate Pressure Transducer for Middle High Pressure
VPRT(F) series
1MPa–100MPa

  • High accuracy (Nonlinearity: ±0.2%R.C.)
  • Sensor machined integral with diaphragm offers durability and long life.
  • Pressure port diameter is as large as 9.5 mm, which allows less sludge or fluid to accumulate
Measured medium Water, oil, gases or other media that will not corrode 15-5PH (precipitation-hardened stainless steel).
Pressure Type Positive and compound pressures can be measured.
Rated capacity 1–100MPa

Specifications

Rated output 1.53mV/V ±0.153mV/V
(1MPa,2MPa:1.53mV/V +0.688mV/V-0.20mV/V)
Non Linearity ±0.2%R.C. (1MPa:±0.3%R.C.)
Hysteresis ±0.2%R.C. (1MPa:±0.3%R.C.)
Excitation;Recommended 6V
Excitation; Maximum 15V
Input Terminal Resistance 373.6±5Ω
Output Terminal Resistance 350±5Ω
Insulation Resistance 1000MΩ or more (DC50V)
Compensated Temperature Range
(Temperature of medium to be measured)
−20–70°C (No condensation or freezing)
Safe Temperature Range
(Temperature of medium to be measured)
−30–80°C (No condensation or freezing)
Safe Overload Rating 150%R.C.
Ultimate Overload Rating 200%R.C.
Temperature Effect on Zero Balance ±0.2%R.C./10°C
Temperature Effect on Load ±0.2%R.C./10°C
Fastening Torque;Recommended 1MPa–5MPa:20N·m,
10MPa–50MPa:40N·m, 100MPa:80N·m
Fastening Torque;Maximum 1MPa–5MPa:30N·m,
10MPa–50MPa:60N·m, 100MPa:120N·m
Connection Screw Selectable: R3/8 and G3/8
(100MPa: Selectable R1/2 and G1/2)
Pressure Port Material 15-5PH (Precipitation hardening stainless steels)
Cable 4-core shielded (oilproof) cable 3m(Standard) φ6mm
Weight Approx. 200g (Cable not included)
Accessories Test report 1 copy, Copper packing(×1) (G screw only)

Model Selection

Example

Selection Check Model Specifications
1.Model   VPRT High Accurate Pressure Transducer for Middle High Pressure
*Connection screw: R3/8 (100MPa: R1/2)
  VPRTF High Accurate Pressure Transducer for Middle High Pressure
*Connection screw: G3/8 (100MPa: G1/2)
2.Rated Capacity (R.C.)   1MP 1MPa
  2MP 2MPa
  5MP 5MPa
  10MP 10MPa
  20MP 20MPa
  50MP 50MPa
  100MP 100MPa
3.Cable Connection   Blank Standard connector Equivalent to IP40
  W Waterproof connector Equivalent to IP56
  S Pigtail Equivalent to IP54
4.Length (Cable)   3m 3m Standard
  5m 5m
  10m 10m
  □□m Other length *Contact our sales office for other cable lengths.

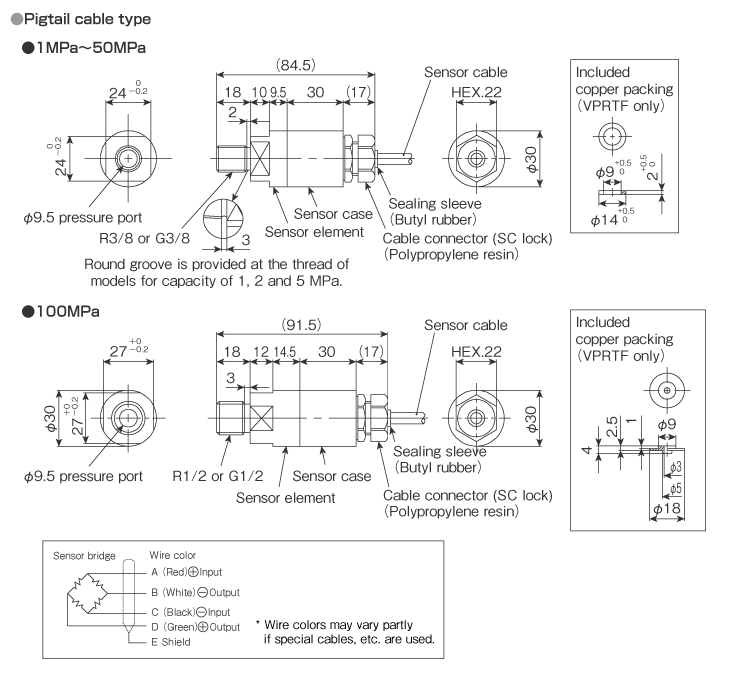

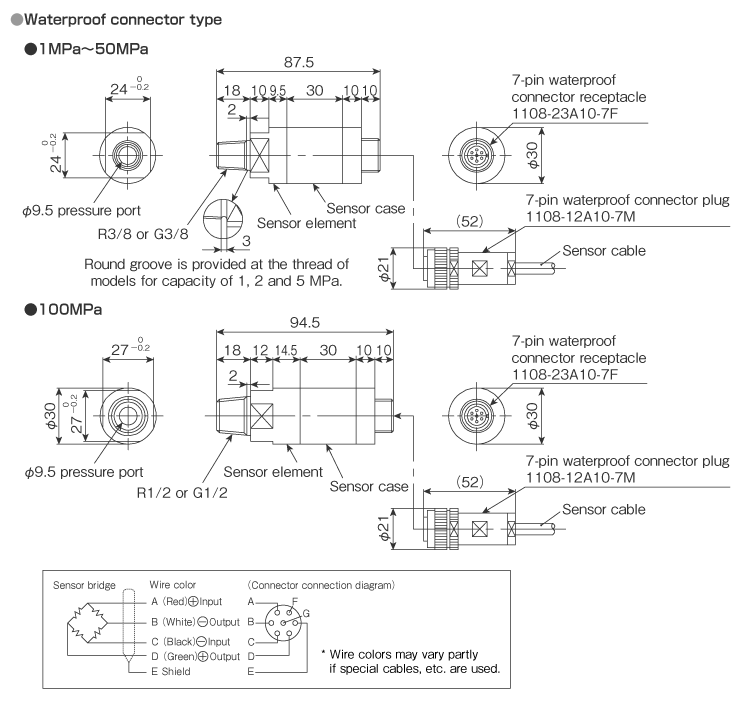

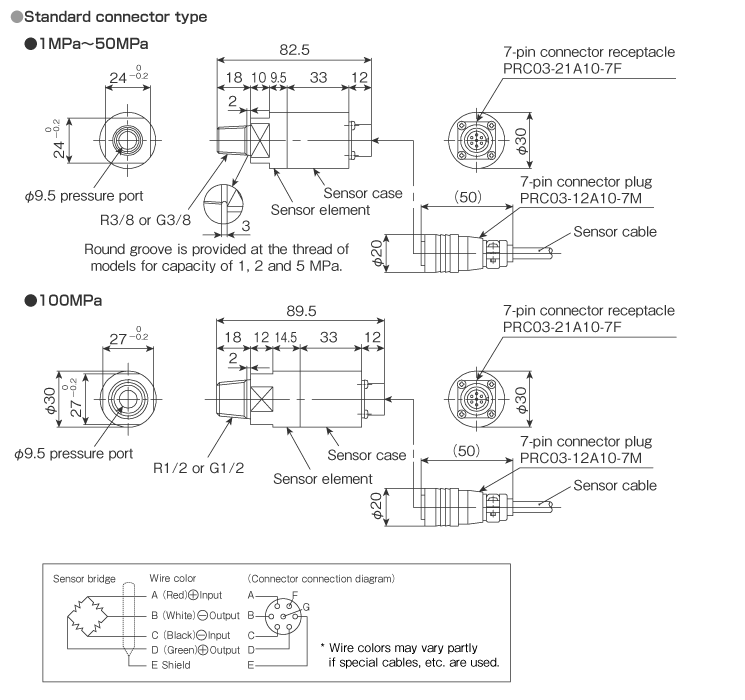

External dimensions (Unit: mm)

External dimensions
External dimensions
External dimensions
