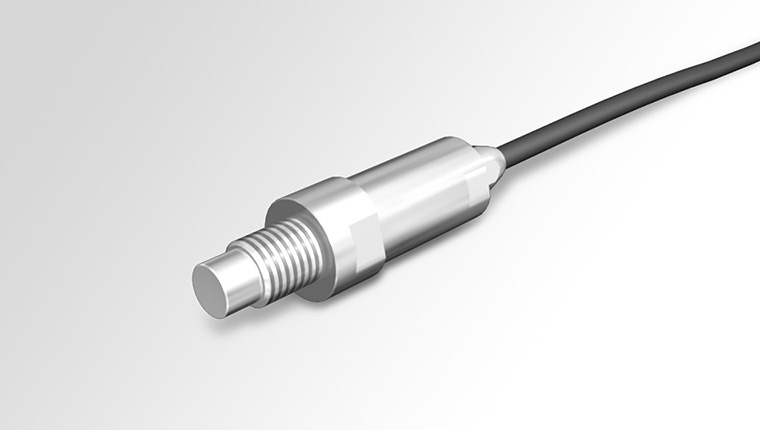

Pressure Transducer for Miniature Flush type Middle High Pressure
VPGFS series
5MPa–50MPa

  • Suitable for measurement of viscous media since the compact, flush type (no feed port) wetted part is hardly clogged up.
  • Can be mounted on small pipes thanks to small bore (G1/8) diaphragm.
  • High accurate (Non Linearity: ±0.5%R.C.)
Measured medium Water, oil, gases or other media that will not corrode SUS630.
Pressure Type Positive pressure can be measured.
Rated capacity 5–50MPa

Specifications

Rated Output (R.O.) 1.5mV/V ±20%
Non Linearity ±0.5%R.C.
Hysteresis ±0.5%R.C.
Excitation;Recommended 1–2V
Excitation;Maximum 3V
Input Terminal Resistance 120Ω±2.4Ω
Output Terminal Resistance 120Ω±2.4Ω
Insulation Resistance 50MΩ or more (DC50V)
Compensated Temperature Range
(Temperature of medium to be measured)
0–60°C (No condensation or freezing)
Safe Temperature Range
(Temperature of medium to be measured)
−10–70°C (No condensation or freezing)
Safe Overload Rating 150%R.C.
Ultimate Overload Rating 200%R.C.
Temperature Effect on Zero Balance ±1%R.C./10°C
Temperature Effect on Load ±1%R.C./10°C
Fastening Torque;Recommended 7N·m
Fastening Torque;Maximum 10N·m
Connection Screw G1/8
Pressure Port Material SUS630
Cable 4-core heatproof vinyl cable 3m, directly-connected 0.065mm²
Weight Approx. 150g (Cable not included)
Accessories Test report 1 copy, Copper packing(×1)

Model Selection

Example

Selection Check Model Specifications
1.Model VPGFS Pressure Transducer for Miniature Flush type Middle High Pressure
*Connection screw: G1/8
2.Rated Capacity (R.C.)   5MP 5MPa
  10MP 10MPa
  20MP 20MPa
  50MP 50MPa
3.Cable Connection Blank Pigtail Equivalent to IP54
4.Length(Cable) 3m 3m Standard

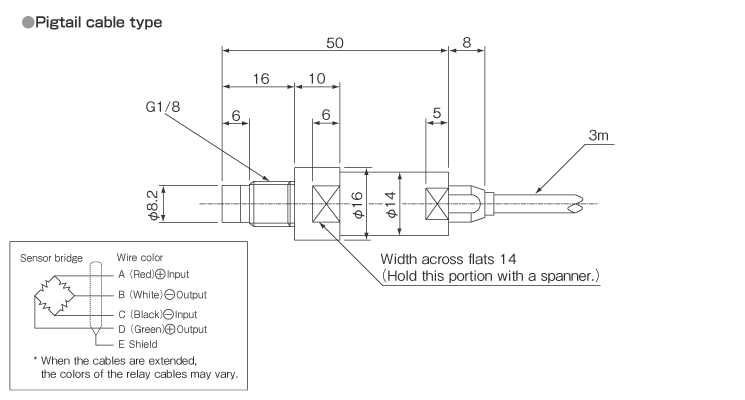

External dimensions (Unit: mm)

External dimensions
