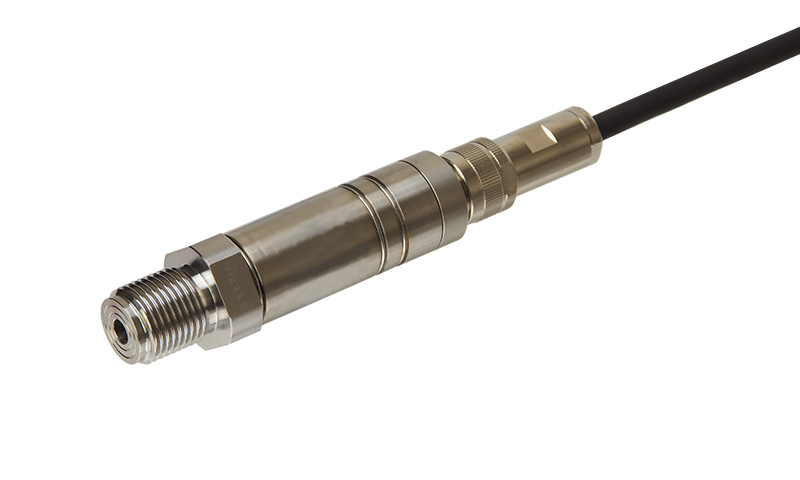

Excessive High Pressure Transducer (High Accurate)
VPG-2TH series
200MPa

  • Ultrahigh pressure / High accurate (200MPa, Non Linearity: ±0.2%R.C.)
  • Drip-proof rating equivalent to IP55.
  • Waterproof connector and oilproof cable (3 m) adopted as standard for enhanced environmental resistance.
Measured medium Water, oil, gases or other media that will not corrode SUS630.
Pressure Type Positive pressure can be measured.
Rated capacity 200MPa

Specifications

Rated Output (R.O.) 1.5mV/V ± (3000×10-6 Distortion) ±0.5%/R.C.
Non Linearity ±0.2%R.C.
Hysteresis ±0.2%R.C.
Excitation; Recommended 1–10V
Excitation; Maximum 15V
Input Terminal Resistance 350Ω±1.5%
Output Terminal Resistance 350Ω±1.5%
Insulation Resistance 500MΩ or more (DC50V)
Compensated Temperature Range
(Temperature of medium to be measured)
−10–70°C (No condensation or freezing)
Safe Temperature Range
(Temperature of medium to be measured)
−20–80°C (No condensation or freezing)
Safe Overload Rating 150%R.C.
Ultimate Overload Rating 200%R.C.
Temperature Effect on Zero Balance ±0.2%R.C./10°C
Temperature Effect on Load ±0.1%R.C./10°C
Fastening Torque;Recommended 220N·m
Fastening Torque;Maximum 300N·m
Connection Screw G1/2
Pressure Port Material SUS630
Cable 4-core shielded (oilproof) cable 3m(Standard) φ6mm
Weight Approx. 200g (Cable not included)
Accessories Test report 1 copy, Copper packing (×1)

Model Selection

Example

Selection Check Model Specifications
1.Model VPG Excessive High Pressure Transducer (High Accurate)
*Connection screw: G1/2
2.Rated Capacity (R.C.) 2TH 200MPa
3.Cable Connection Blank Waterproof connector Equivalent to IP55
4.Length (Cable)   3m 3m Standard
  5m 5m
  10m 10m
  □□m Other length *Contact our sales office for other cable lengths.

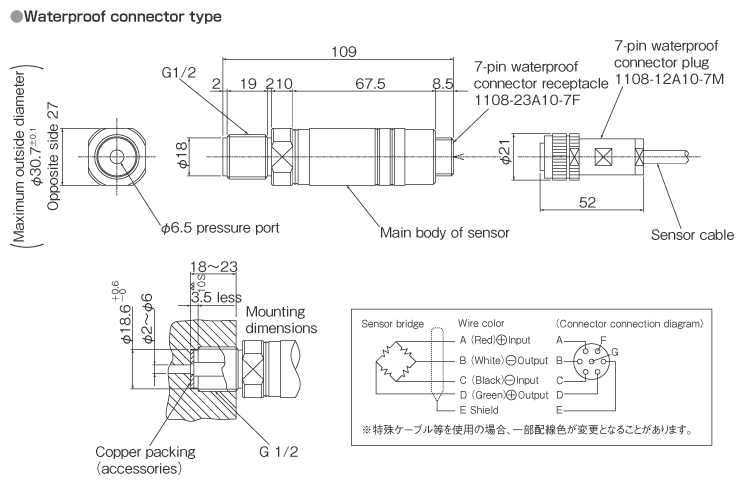

External dimensions (Unit: mm)

External dimensions
