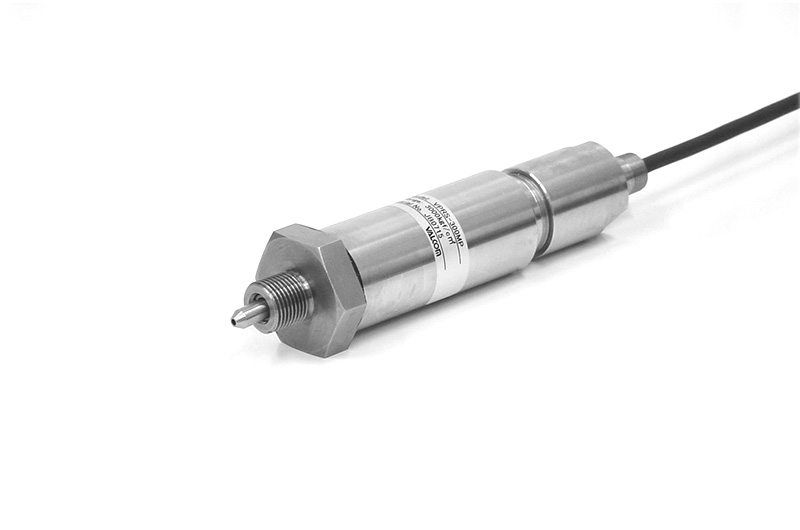

Excessive High Pressure Transducer (High Accurate)
VPRS series
300MPa–500MPa

  • Pressure port is provided with a pressure fitting, which prevents pressure from leaking easily.
  • Ultrahigh pressure (300MPa, 400MPa, 500MPa) / High accurate
  • Sensor cable length 3 m as standard.
Measured medium Water, oil, gases or other media that will not corrode SUS630.
Pressure Type Positive pressure can be measured.
Rated capacity 300–500MPa

Specifications

Rated Output (R.O.) 1mV/V ±0.0025mV/V
(500MPa: 0.75mV/V ±0.0075mV/V)
Non Linearity ±0.35%R.C. (500MPa: ±0.5%R.C.)
Hysteresis ±0.1%R.C.
Excitation; Recommended 6V or less
Excitation; Maximum 10V
Input Terminal Resistance 120±2.4Ω
Output Terminal Resistance 118.5±2.4Ω
Insulation Resistance 1000MΩ or more (DC50V)
Compensated Temperature Range
(Temperature of medium to be measured)
−10–75°C (No condensation or freezing)
Safe Temperature Range
(Temperature of medium to be measured)
−20–75°C (No condensation or freezing)
Safe Overload Rating 120%R.C.
Ultimate Overload Rating 120%R.C.
Temperature Effect on Zero Balance ±0.09%R.C./10°C
Temperature Effect on Load ±0.09%R.C./10°C
Fastening Torque; Recommended 50N·m or more
Fastening Torque; Maximum 150N·m
Connection Screw 300MPa,400MPa:G1/2 (500MPa:G3/4)
Pressure Port Material SUS630
IP Rating (Main body) Equivalent to IP64
Cable 4-core shielded cable 3m, directly-connected φ6.3mm
Weight Approx. 1.4kg (Cable 3m included)
Accessories Test report 1 copy, Pressure fitting sleeve (×2)
Retaining ring (×1)

Model Selection

Example

Selection Check Model Specifications
1.Model VPRS Excessive High Pressure Transducer (High Accurate)
*Connection screw: G1/2 (500MPa: G3/4)
2.Rated Capacity (R.C.)   300MP 300MP
  400MP 400MP
  500MP 500MP
3.Cable Connection Blank Pigtail Equivalent to IP64
4.Length(Cable) 3m 3m

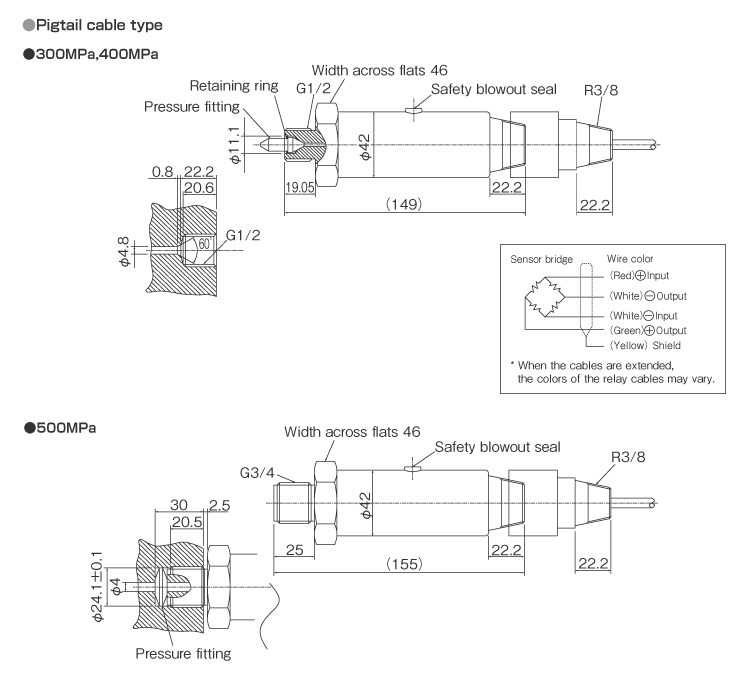

External dimensions (Unit: mm)

External dimensions
