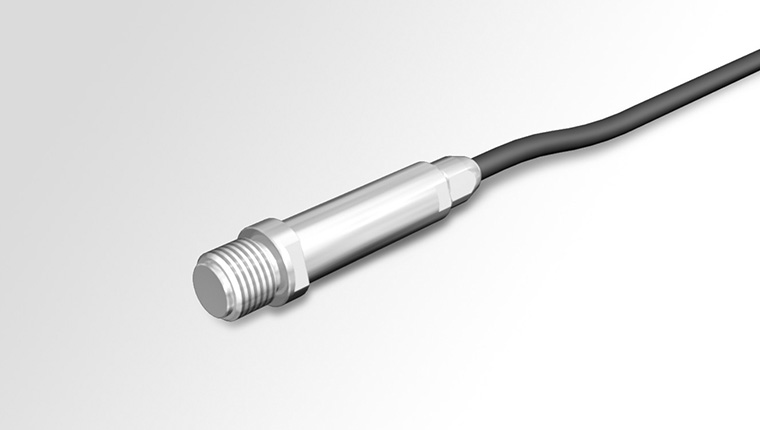

Miniature Flush type Low Pressure Transducer
VPGFM series
200kPa–1MPa

  • Suitable for measurement of viscous media since the compact, flush type (no feed port) wetted part is hardly clogged up.
  • Can be mounted on small pipes thanks to small bore (G1/8) diaphragm.
  • For low-viscosity media.
Measured medium Media that will not corrode C1720 (*1)
Pressure Type Positive pressure can be measured.
Rated capacity 200kPa to 1MPa
  • (*1) Alloys mainly consisting of beryllium and copper (Beryllium copper).

Specifications

Rated Output (R.O.) 200KPa: 0.6mV/V or more
500KPa,1MPa: 1mV/V±0.2%
Non Linearity ±1.5%R.C.
Hysteresis ±1.5%R.C.
Excitation;Recommended 1–2V
Excitation;Maximum 3V
Input Terminal Resistance 350Ω±10%
Output Terminal Resistance 350Ω±10%
Insulation Resistance 50MΩ or more (DC50V)
Compensated Temperature Range
(Temperature of medium to be measured)
0–50°C (No condensation or freezing)
Safe Temperature Range
(Temperature of medium to be measured)
−10–60°C (No condensation or freezing)
Safe Overload Rating 150%R.C.
Ultimate Overload Rating 200%R.C.
Temperature Effect on Zero Balance ±2%R.C./10°C (200KPa:±3%R.C./10°C)
Temperature Effect on Load ±2%R.C./10°C (200KPa:±3%R.C./10°C)
Fastening Torque;Recommended 7N·m
Fastening Torque;Maximum 10N·m
Connection Screw G1/8
Pressure Port Material Wetted part: C1720
Screw: SUS303
IP Rating (Main body) Equivalent to IP54
Cable 4-core shielded vinyl cable 3m(Standard) φ4mm
Weight Approx. 140g (Cable 3m included)
Accessories Test report 1 copy
Fluororesin sealing tape (×1)

Model Selection

Example

Selection Check Model Specifications
1.Model VPGFM Miniature Flush type Low Pressure Transducer
*Connection screw: G1/8
2.Rated Capacity (R.C.)   200KP 200kPa
  500KP 500kPa
  1MP 1MPa
3.Cable Connection Blank Pigtail Equivalent to IP54
4.Length(Cable) 3m 3m Standard

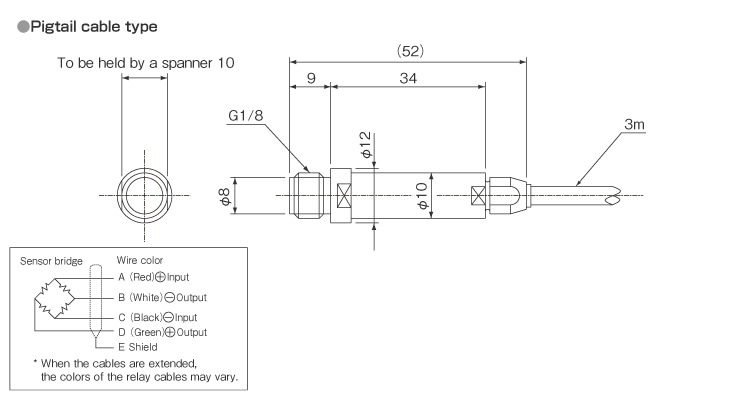

External dimensions (Unit: mm)

External dimensions
