General-purpose Pressure Transducer for Middle High Pressure

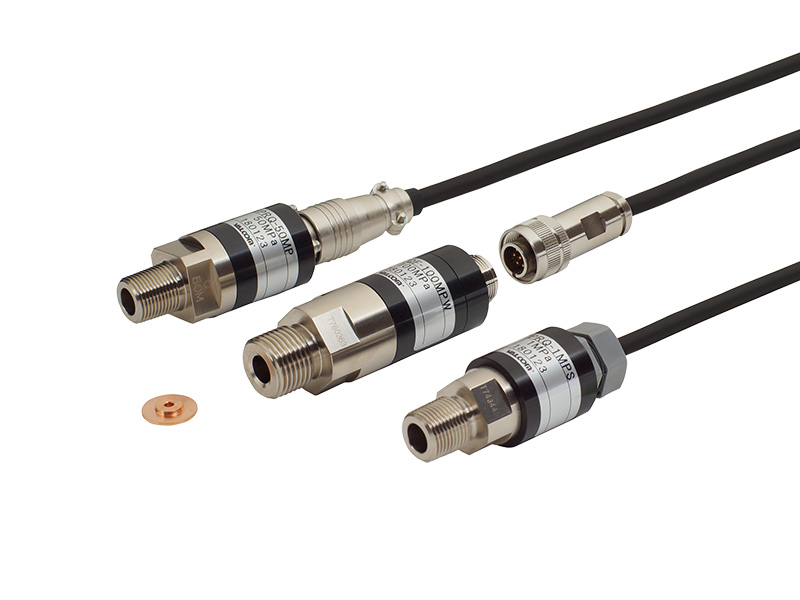

VPRQ(F) series
1MPa–100MPa

  • Sensor machined integral with diaphragm offers durability and long life.
  • Economy type that offers quick delivery and low price.
  • Pressure port diameter is as large as 9.5 mm, which allows less sludge or fluid to accumulate
Measured medium Water, oil, gases or other media that will not corrode 15-5PH (precipitation-hardened stainless steel).
Pressure Type Positive and compound pressures can be measured.
Rated capacity 1–100MPa

Specifications

Rated Output (R.O.) 1.53mV/V ±0.153mV/V
(1MPa,2MPa:1.53mV/V +0.688mV/V-0.20mV/V)
Non Linearity ±0.8%R.C. (100MPa:±1%R.C.)
Hysteresis ±0.8%R.C. (100MPa:±1%R.C.)
Excitation; Recommended 6V
Excitation; Maximum 15V
Input Terminal Resistance 350±7Ω
Output Terminal Resistance 300–357Ω (100MPa:350–357Ω)
Insulation Resistance 1000MΩ or more (DC50V)
Compensated Temperature Range
(Temperature of medium to be measured)
−30–70°C (No condensation or freezing)
Safe Temperature Range
(Temperature of medium to be measured)
−40–100°C (No condensation or freezing)
Safe Overload Rating 150%R.C.
Ultimate Overload Rating 200%R.C.
Temperature Effect on Zero Balance ±0.2%R.C./10°C (100MPa:±1%R.C./10°C)
Temperature Effect on Load ±1%R.C./10°C
Fastening Torque;Recommended 1MPa–5MPa:20N·m,
10MPa–50MPa:40N·m, 100MPa:80N·m
Fastening Torque;Maximum 1MPa–5MPa:30N·m,
10MPa–50MPa:60N·m, 100MPa:120N·m
Connection Screw Selectable: R3/8 and G3/8 (100MPa: G1/2 only) (*1)
Pressure Port Material 15-5PH (Precipitation hardening stainless steels)
Cable 4-core shielded (oilproof) cable 3m(Standard) φ6mm
Weight Approx. 200g (Cable not included)
Accessories Test report 1 copy, Copper packing(×1) (G screw only)

Model Selection * See here for explosion-proof

Example

Selection Check Model Specifications
1.Model   VPRQ General-purpose Pressure Transducer for Middle High Pressure
*Connection screw: R3/8
  VPRQF General-purpose Pressure Transducer for Middle High Pressure
*Connection screw: G3/8(100MPa:G1/2 only)
2.Rated Capacity (R.C.)   1MP 1MPa
  2MP 2MPa
  5MP 5MPa
  10MP 10MPa
  20MP 20MPa
  35MP 35MPa
  50MP 50MPa
  100MP 100MPa (VPRQF only)
3.Cable Connection   Blank Standard connector Equivalent to IP40
  W Waterproof connector Equivalent to IP56
  S Pigtail Equivalent to IP54
4.Length (Cable)   3m 3m Standard
  5m 5m
  10m 10m
  □□m Other length *Contact our sales office for other cable lengths.

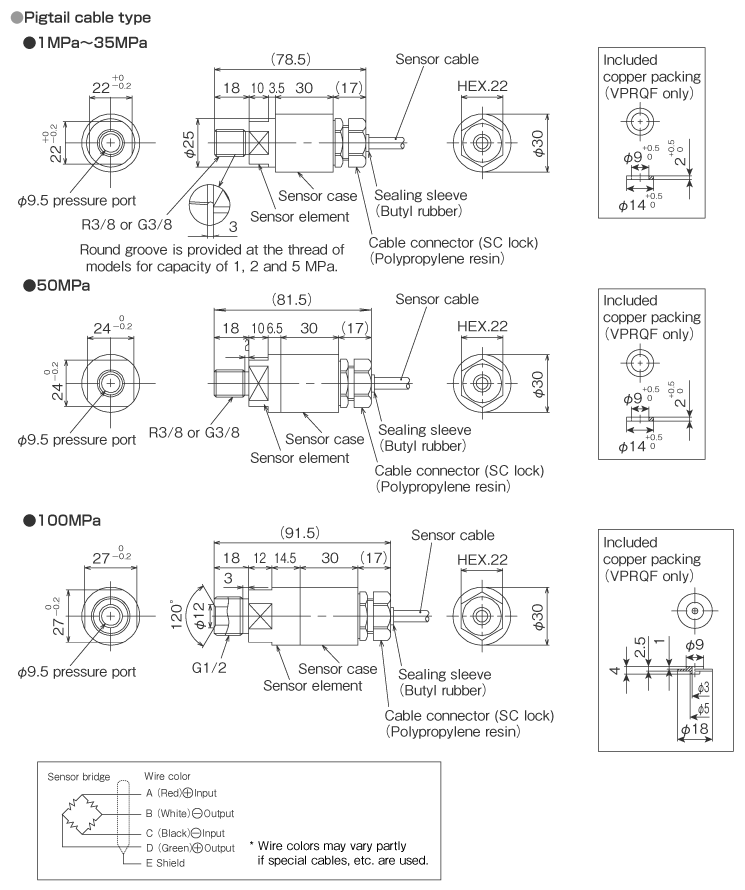

External dimensions (Unit: mm)

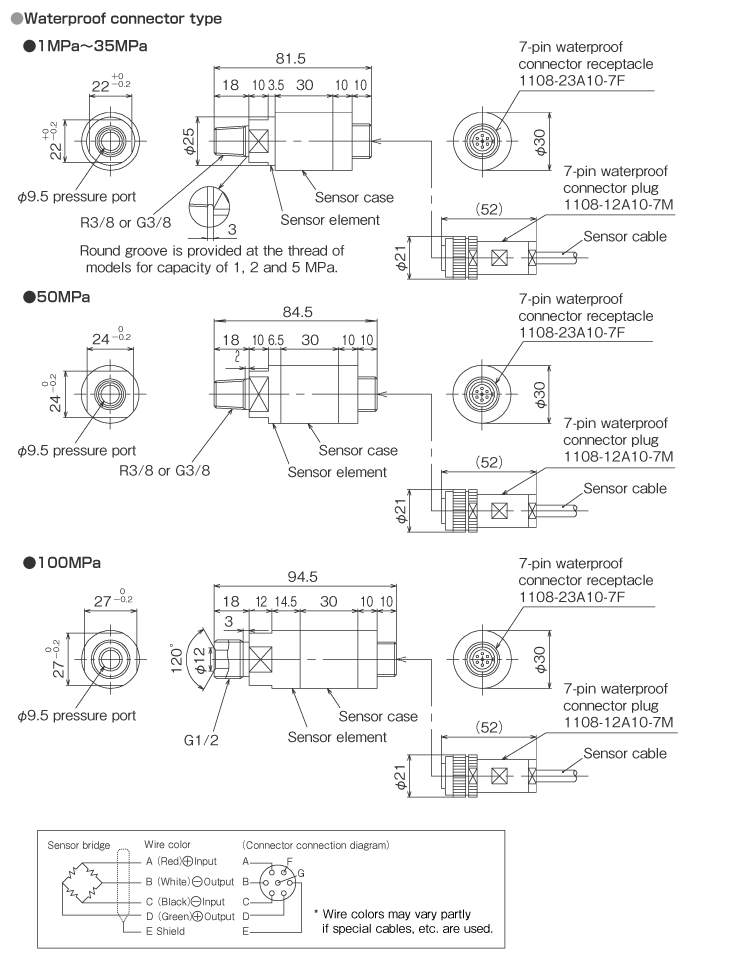

External dimensions

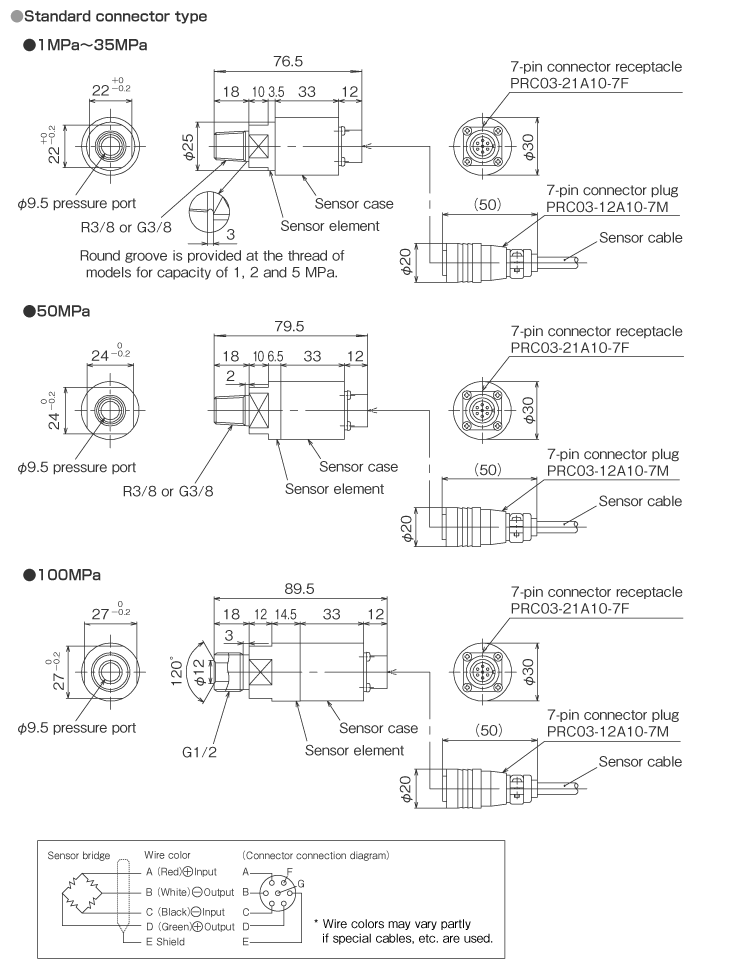

External dimensions
External dimensions
