Load cell
List of Load Cells with TEDS

TEDS (Transducer Electronic Data Sheet)

What is TEDS system ?

TEDS (Transducer Electronic Data Sheet) is a general term for the description format defined by IEEE standard. It allows the sensor-specific information to be read/written electronically from/to EEPROM incorporated in the sensor.
Writes information to the TEDS chip located at the end of sensor cable or inside of connector.
Chip information:
TEDS data / Rated capacity (unit) / Rated output of sensor / Max. excitation voltage / Input terminal resistance / Calibration date

  • Reads the sensor information at power ON to perform calibration.
  • Sensor information can be displayed and rewritten.

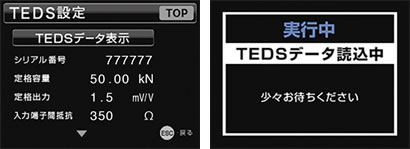

TEDS display

TEDS-compatible amplifiers

VGM4/VGMH

Model designation example

For models with TEDS, add -T to the model number, and specify the cable end treatment (Connector or Loose)

For VLC-E344 Rated capacity 1kN, Cable 1.5 m, Connector on load cell side, With TEDS

VLC-1KNE344-T(Cable 1.5 m, Standard connectors)

For VC9C Rated capacity 2kN, Cable 1.5 m, Loose wires on load cell side, With TEDS

VC9C-2KN-T(Cable 1.5 m, Loose wires)

Compatible list

Model VGMH VGM4
Amplifier side standard connectors Loose wires on amplifier side Loose wires on amplifier side
VLS VGMH

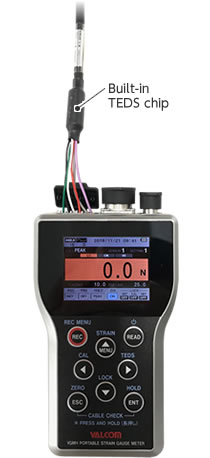

Connection example
*Image is for illustration purposes.
VGMH

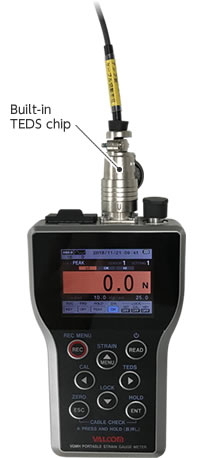

Connection example
*Image is for illustration purposes.
VGM4

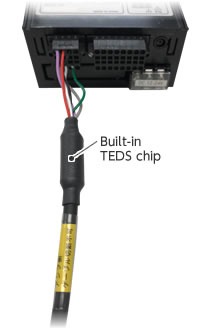

Connection example
*Image is for illustration purposes.
VLC-003/004
VLSS-C
VLC-E159
VC9C
VLC-E344
VLC-H400
VLC-218
VLC-200KNJ544
VLC-087
VLC-E333M1H
VLC-G471M2
VLC-024A
VLC-G811
VLC-G510A
VLC-020/021
VLC-G787
VLC-023
VU9C

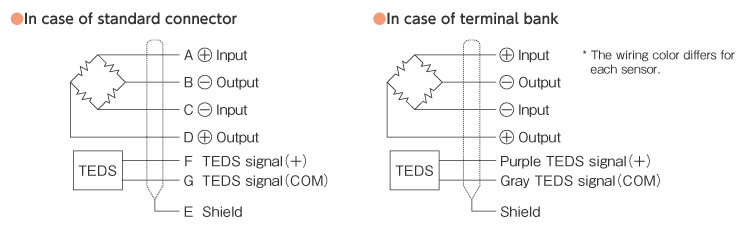

Wiring connection diagram

Wiring connection diagram
