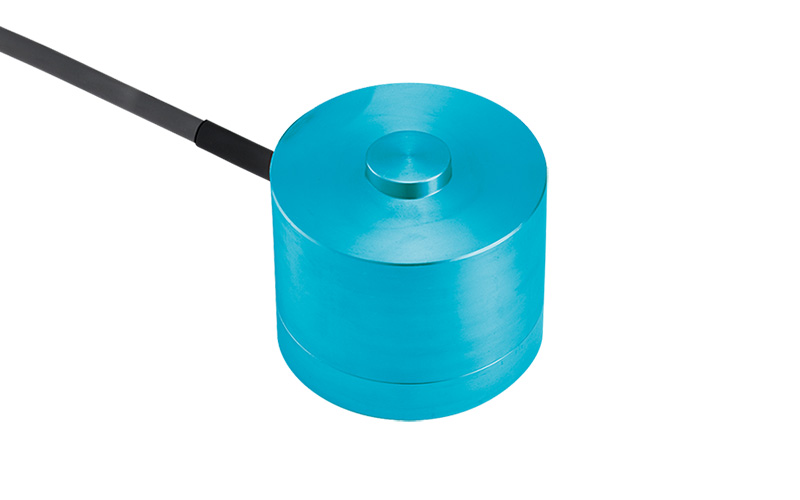

Load button type load cell (High capacity)
VLC-087 series
500kN–1MN

  • High capacity
  • High accuracy

Specifications

Rated output 2mV/V±0.1mV/V
Nonlinearity ±0.2%R.C.
Hysteresis ±0.2%R.C.
Repeatability ±0.1%R.C.
Zero balance ±0.2mV/V
Temperature effect on zero balance ±0.1%R.C./10°C
Temperature effect on load ±0.1%R.C./10°C
Safe overload rating 150%R.C.
Temperature compensation range −10–70°C (No condensation or freezing)
Safe temperature range −20–80°C (No condensation or freezing)
Input terminal resistance 350±5Ω
Output terminal resistance 350±5Ω
Recommended excitation voltage 5V or less
Maximum excitation voltage 10V
Insulation resistance 1GΩ or more (DC 50V)
IP rating Equivalent to IP65 (Main body only) (Note 1)
Cable φ7-4-core Shielded cable 5m, directly-connected
  • (Note 1) Sealing performance of the cable outlet may deteriorate due to the change of cable jacket over years.

Model selection

Selection Model Rated capacity Deflection at R.C. A B φC φD (φE) F G 4-H Weight
  VLC-500KN-087 500kN Approx. 0.1mm 95 7 126 42 (101) 40 113 M10 Depth 12 Approx. 6kg
  VLC-1MN-087 1MN Approx. 0.1mm 120 10 146 58 (115) 50 130 M12 Depth 18 Approx. 11kg
  • *Weight includes cable.

External dimensions (Unit: mm)

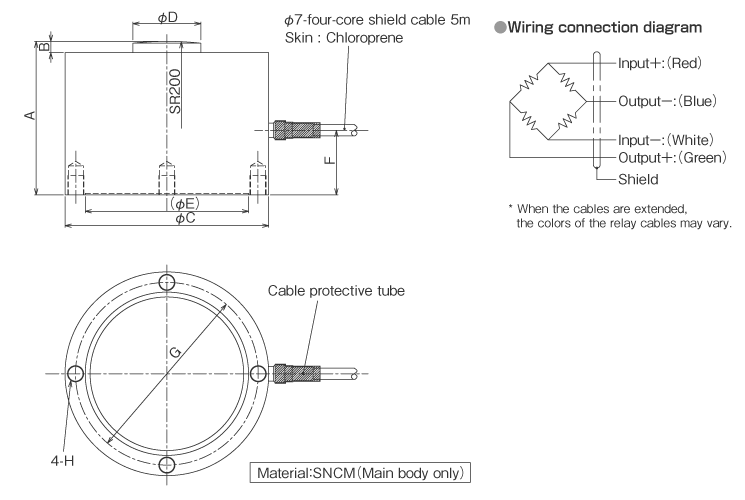

External dimensions
