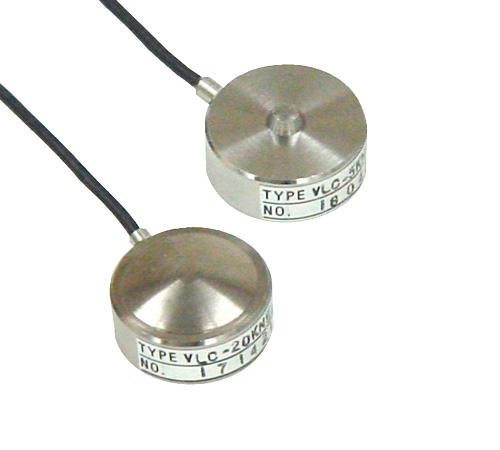

Sub-miniature Button Load Cell
VLC-E159 series

  • Ultrasmall design
  • Handles higher loads


Rated output 1mV/V ±30% (20kN:1.5mV/V ±20%)
Nonlinearity Up to ±1%R.C. (20kN: Up to ±2%R.C.)
Hysteresis Up to ±1%R.C. (20kN: Up to ±2%R.C.)
Repeatability Up to ±1%R.C.
Zero balance Up to ±5%R.C.
Temperature effect on zero balance ±0.5%R.C./10°C
Temperature effect on load ±0.5%R.C./10°C
Safe overload rating 120%R.C.
Temperature compensation range −5–50°C (No condensation or freezing)
Safe temperature range −10–60°C (No condensation or freezing)
Input terminal resistance 350Ω±2.5%
Output terminal resistance 350Ω±2.5%
Recommended excitation voltage 5V or less
Maximum excitation voltage 7V
Insulation resistance 1000MΩ or more (DC 50V)
IP Rating Equivalent to IP60 (Main body only) (Note 1)
Cable φ1.7 4-core Shielded cable (FEP-PVC-YI) 3m, directly-connected
  • (Note 1) Sealing performance of the cable outlet may deteriorate due to the change of cable jacket over years.

Model selection

Selection Model Rated capacity Deflection at R.C. Weight
  VLC-2KNE159 2kN Approx. 0.01mm Approx. 50g
  VLC-5KNE159 5kN
  VLC-10KNE159 10kN
  VLC-20KNE159 20kN
  • *Weight includes cable.

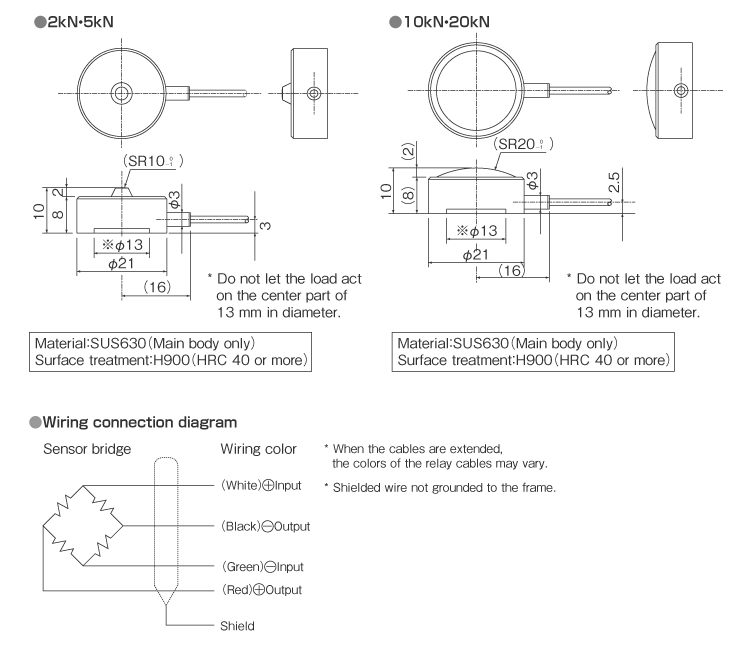

External dimensions (Unit: mm)

External dimensions
