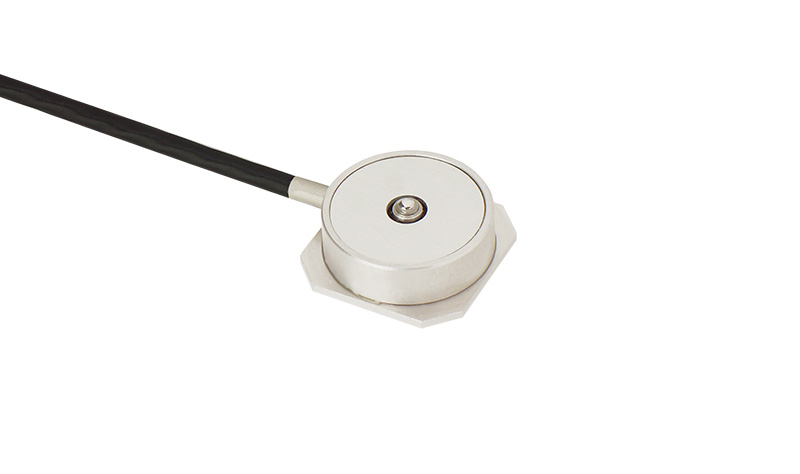

Sub-miniature Button Load Cell (Overload Protection)
VLSS-C series
2N–5N

  • With a stopper for overload protection
  • Ultimate overload rating: 500%R.C.
  • Ultralow load
  • High accuracy
  • Ultrasmall design

Specifications

Rated output 0.700–1.300mV/V
Nonlinearity ±0.3%R.C.
Hysteresis ±0.3%R.C.
Repeatability ±0.3%R.C.
Zero balance −0.100–0.100mV/V
Temperature effect on zero balance ±0.3%R.C./10°C
Temperature effect on load ±0.1%R.C./10°C
Safe overload rating 150%R.C.
Ultimate overload rating 500%R.C.
Temperature compensation range 0–60°C (No condensation or freezing)
Safe temperature range −10–60°C (No condensation or freezing)
Input terminal resistance 380.0–440.0Ω
Output terminal resistance 345.0–355.0Ω
Recommended excitation voltage 6V or less
Insulation resistance 1000MΩ or more (DC 50V) (Bridge–Housing)
IP rating Equivalent to IP50 (Main body only) (Note 1)
Cable φ1.8mm 4-core Shielded cable 1.5m, directly-connected
  • (Note 1) Sealing performance of the cable outlet may deteriorate due to the change of cable jacket over years.

Model selection

Selection Model Rated capacity Deflection at R.C. Weight
  VLSS-2NC 2N Approx. 0.04mm Approx. 12g
  VLSS-5NC 5N Approx. 0.03mm
  • *Weight includes cable.

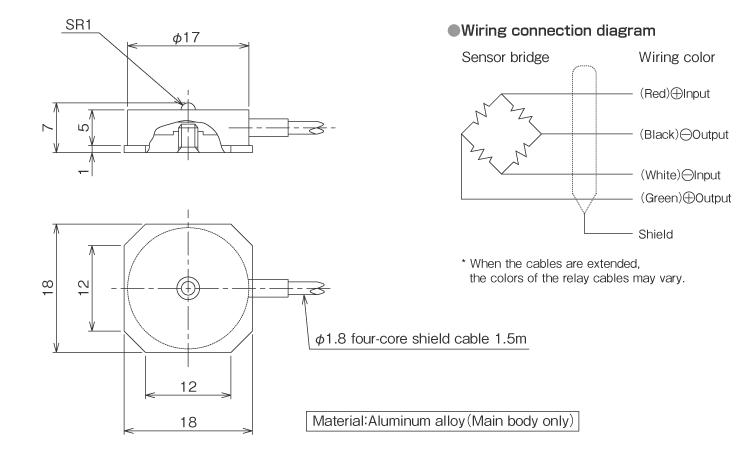

External dimensions (Unit: mm)

External dimensions
