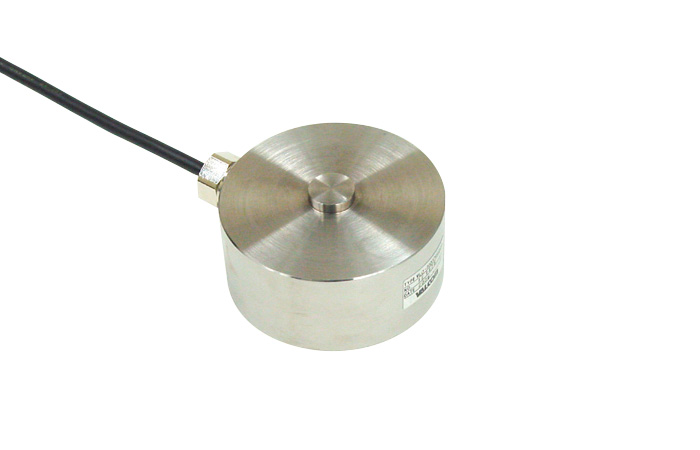

Load button type load cell
VLC-H400 series

  • Vibration-resistant
  • High accuracy
  • Robot cable (5 m, standard)


Rated output 2mV/V±0.5%
Nonlinearity ±0.1%R.C.
Hysteresis ±0.1%R.C.
Repeatability ±0.05%R.C.
Zero balance ±3%R.O.
Temperature effect on zero balance ±0.05%R.C./10°C
Temperature effect on load ±0.1%R.C./10°C
Safe overload rating 150%R.C.
Temperature compensation range −10–70°C
Safe temperature range −15–75°C
Input terminal resistance 350Ω±2%
Output terminal resistance 350Ω±2%
Recommended excitation voltage 1–10V
Maximum excitation voltage 15V
Insulation resistance 1000MΩ or more (DC 50V)
IP rating Equivalent to IP64 (Main body only) (Note 1)
Cable φ6mm 4-core shielded robot
cable (KDF-SB) 5m
  • (Note 1) Sealing performance of the cable outlet may deteriorate due to the change of cable jacket over years.

Model selection

Selection Model Rated capacity Deflection at R.C. H B h Weight
  VLC-50KNH400 50kN Approx. 0.13mm 35 40 18 Approx. 1.1kg
  VLC-100KNH400 100kN 40 45 20 Approx. 1.3kg
  • *Weight includes cable.

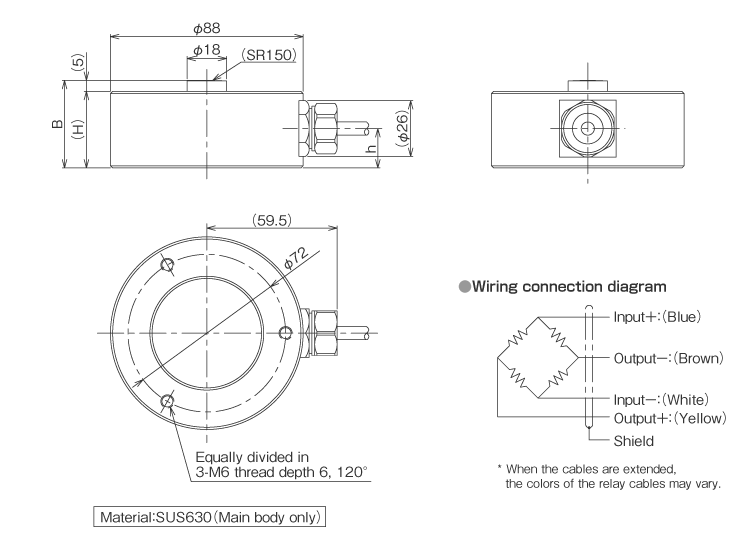

External dimensions (Unit: mm)

External dimensions
