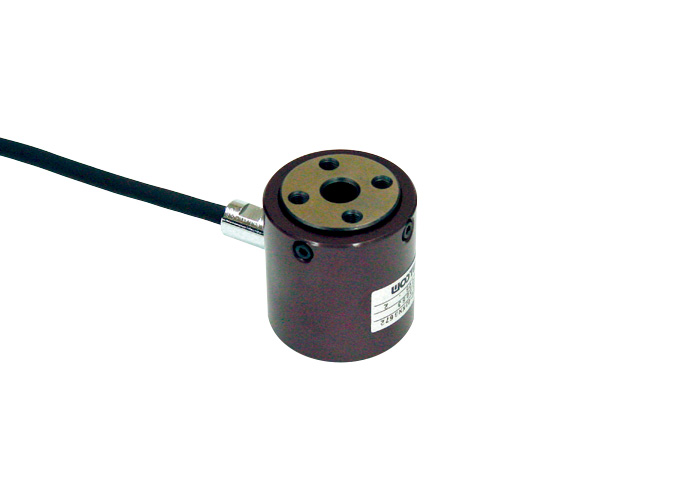

Flat type Load Cell
VLC-G811 series

  • Compact and flat type easy to be attached to shafts or cylinders.


Rated output 0.990–1.010mV/V
Nonlinearity ±0.5%R.C.
Hysteresis ±0.5%R.C.
Repeatability ±0.3%R.C.
Zero balance −0.050–0.050mV/V
Temperature effect on zero balance ±0.1%R.C./10°C
Temperature effect on load ±0.1%R.C./10°C
Safe overload rating 150%R.C.
Temperature compensation range −5–70°C (No condensation or freezing)
Safe temperature range −10–75°C (No condensation or freezing)
Input terminal resistance 343.0–357.0Ω
Output terminal resistance 343.0–357.0Ω
Recommended excitation voltage 8V or less
Maximum excitation voltage 12V
Insulation resistance 1000MΩ or more(DC 50V)
IP rating Equivalent to IP50 (Note 1)
Cable φ6mm 4-core shielded robot cable (KDF-SB) 5m, directly-connected
  • (Note 1) Sealing performance of the cable outlet may deteriorate due to the change of cable jacket over years.

Model selection

Selection Model Rated capacity Deflection at R.C. Weight
  VLC-10KNG811 10kN Approx. 0.04mm Approx. 700g
  VLC-20KNG811 20kN
  VLC-50KNG811 50kN
  • *Weight includes cable.

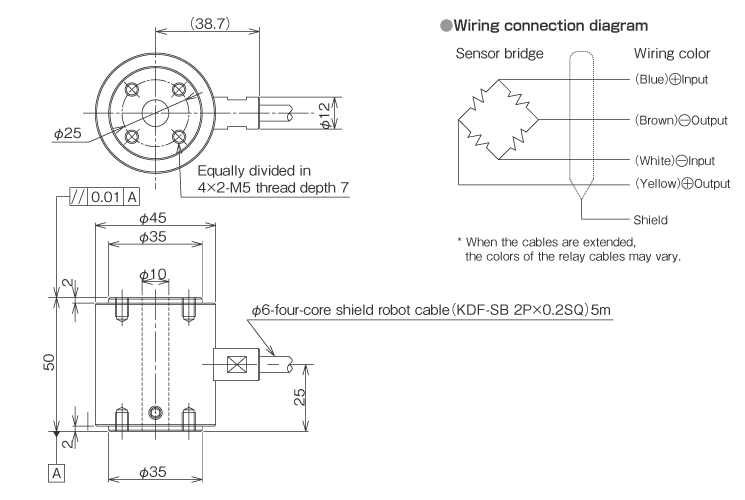

External dimensions (Unit: mm)

External dimensions
