Specialized manufacturer of Digital Pressure Meters and Load Cells

VALCOM CO.,LTD.

NEW
Patent pending

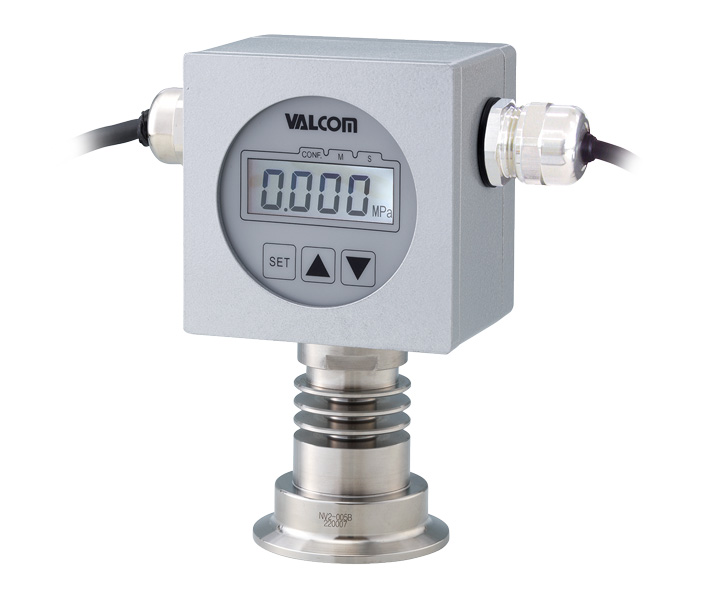

Sanitary sensor with temperature measurement function
NSMS-A6VB-T series
300, 500, 1000kPa

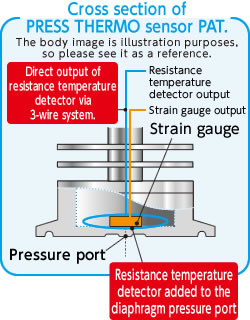

Croass section of PRESS THERMO sensor

  • Safe and reliable diaphragm of the proven Directly Connected Sensor series accompanied by temperature sensor
  • Enables pressure and temperature at the diaphragm to be measured during CIP/SIP.
  • Suitable for reducing mounting space thanks to pressure and temperature sensors put in together on the ferrule fitting.
  • Ideal for checking temperature at the pressure sensor diaphragm located at the pipe with closed end or the rising part (dead leg) of ferrule fitting
  • Standard functions
    ●Damping ●Analog output scaling ●Loop check function
    ●FIX zero ●Maximum/Minimum monitoring function
    ●Zero shift ●Key lock function ●Backlighting
    ●Various functions such as output burnout at error.
Measured medium Water, oil, gases or other media that will not corrode SUS316L.
Pressure type Measurement at positive pressure is possible.
Pressure range Rated capacity 300, 500, 1000kPa
Output Pressure: 4–20mA(2-wire) Output scaling variable
Output scaling can be changed within the range of 10 to 100% of the rated capacity.
Temperature: 100±0.06Ω(at0°C)3-wire

Display part specifications

Display 7 segment 4-digit LCD display Character height: Approx. 12.7mm (Pressure display only)
Display range Depends on factory setting (Max. -1999–1999)
Refresh rate Approx. 3.5 times/sec.
Response time Selectable among 0.2, 0.5, 1, 2, 4, 8, 16, 32 and 64 s (time to reach 63%) as damping constant.
(Maximum and minimum memory are not dependent on the refresh rate)

Sensor assembly specifications(Standard)

Rated capacity(R.C.) 300, 500, 1000kPa (Depends on the model) (*1)
Overload limit 400%R.C.
Destruction point 1000%R.C.
Temperature effect on zero balance ±0.5%R.C./10°C or less
Temperature effect on output ±0.5%R.C./10°C or less
Temperature measurement range −5–150°C (Measurement pressure medium)
Temperature compensation range (Wetted part) −5–150°C (Measurement pressure medium)
Safe temperature range(Wetted part) −5–150°C (Measurement pressure medium)
Material SUS316L(Wetted part)
Wetted part surface finish Electrolytic polish(Rz0.7µm, Ra0.2µm)
  • (*1)For steam sterilization, fully examine the conditions to make sure that no pressure greater than the rating will be applied.

Output Specifications

Pressure 4–20mA 2-wire (10–100%R.C. Scaling enabled)
Safe load resistance: When Power supply voltage DC24V 380 Ωmax.
Accuracy: 20–100%R.C. During scaling: ±0.5%F.S. ±1digit. or less
10–20%R.C. During scaling: ±1%F.S. ±1digit. or less
Response time: Selectable among 0.2, 0.5, 1, 2, 4, 8, 16, 32 and 64 s (time to reach 63%) as damping constant.
Temperature 100±0.06Ω(at0°C)3-wire (*2)
  • (*2)Use Pt100A class

Specifications

Power supply voltage DC24V (Operating voltage range: DC15.64–26.5V)
Withstand voltage DC50V(Between whole shielded I/O signal cables and enclosure)
Insulation resistance 100MΩ or above [50V DC megger] (Between whole shielded I/O signal cables and enclosure)
Non-volatile memory Changes to settings: 10,000 writes guaranteed
(After changed in the setting mode, new parameter values are written they are determined)
Ambient temperature and humidity range Temperature: 0–50°C(Amplifier part, display part), Humidity: 0–90%RH(No condensation)
Ambient temperature measurement 0–50°C (No condensation or freezing)
Material Case part: Aluminum die casting
Front sheet: PET
IP Rating Equivalent to IP67(Including sensor)
*Use IP67 cable gland (or equivalent) on the side of casing (G1/2).
Accessories Operating manual 1 copy, Test report 1 copy, Cable gland

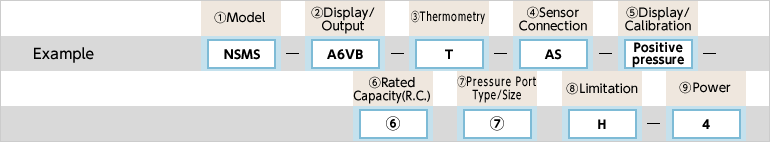

Model Selection

Example

Selection Check Model Specifications
1.Model NSMS High-temperature type: Wetted parts -5 to 150°C
2.Display/Analog output A6VB 4–20mA(2-wire system) Output scaling variable
Display part with backlight
3.Temperature measurement T Temperature measurement 3-wire system(Pt100, A class)
4.Sensor connection AS Sensor directly connected on bottom
5.Display/Calibration Positive pressure Calibration value (Positive pressure only) Specify the value and unit in brackets under ⑥ Rated capacity.
6.Rated capacity   030 300kPa Calibration range [300kPa]
  050 500kPa Calibration range [500kPa]
  100 1000kPa Calibration range [1000kPa]
7.Pressure Port
Type/Size
  F1 Ferrule 1.5S
  F2 Ferrule 2S
8.Limitation H 400%R.C.
9.Power supply 4 DC24V (DC15.64–26.5V)Current consumption: Approx.23mA

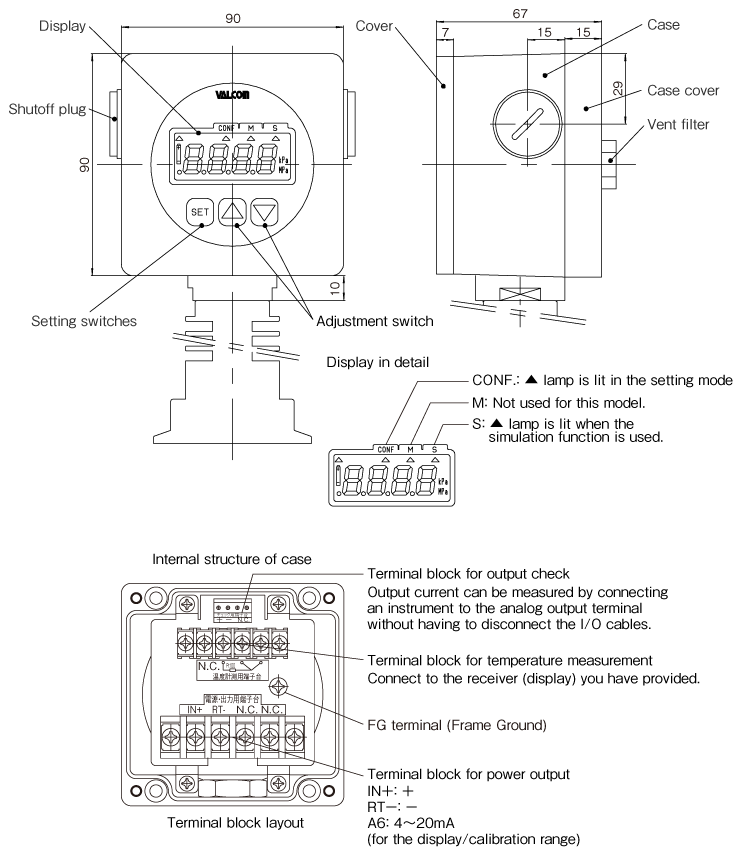

External dimensions (Unit: mm)

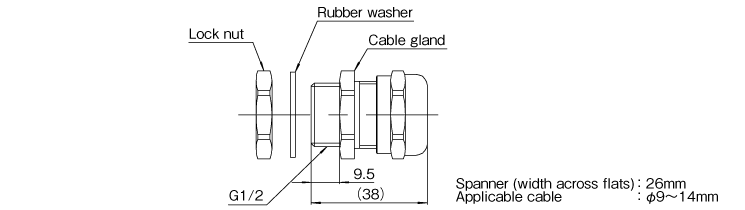

Accessories list(Unit: mm)

Accessories list

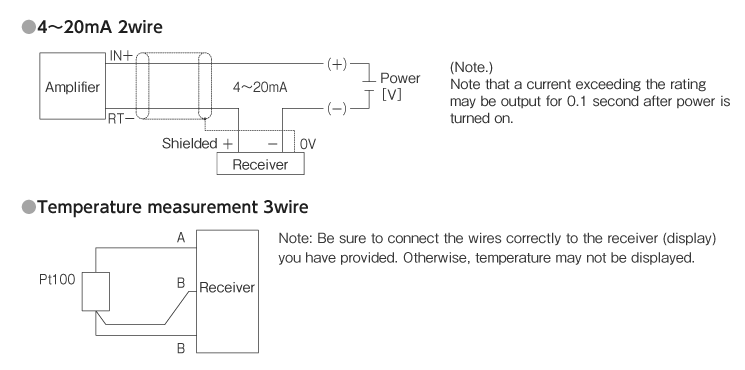

Connections(Unit: mm)

Connections
