Specialized manufacturer of Digital Pressure Meters and Load Cells

VALCOM CO.,LTD.



Sanitary Digital Pressure Meter(2-wire type) "Changeability type of output 4 to 20mA scaling"
NSMS-A6VB series
50kPa–3MPa

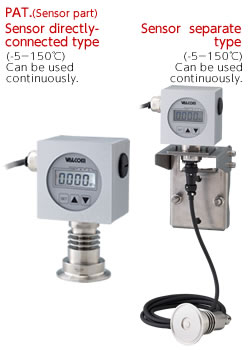

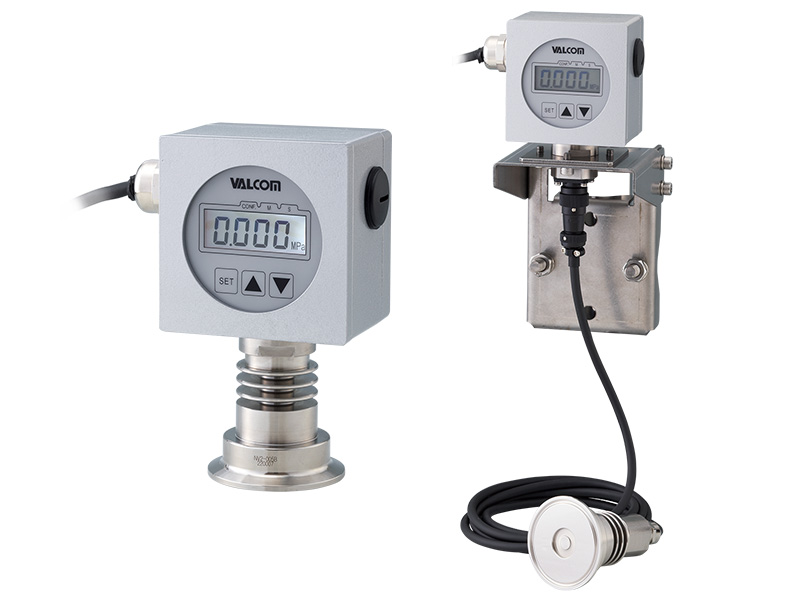

*Image is ISO Ferrule 2S type

  • Output 4-20mA (2 wire system) scaling function. (Supports negative pressure, compound pressure and reverse output.)
  • IP67 construction for environmental resistance.
  • Pressure port with higher strength.
  • Safe and reliable construction with no sealed liquid.
  • Standard functions
    ●Damping ●Loop check function ●FIX zero
    ●Quick zero-adjustment ●Maximum/Minimum monitoring function
    ●Various functions such as output burnout at error.
Measured medium Liquor, milk beverage, seasoning, pure water, chemical or other media.
(These vary according to sensor materials)
Pressure type Measurement at positive pressure, compound pressure, and negative pressure is possible.
Pressure range Can be specified within the range of 50 kPa to 3 MPa of rated capacity.
Output type 4–20mA(2-wire) Output scaling variable
Output scaling can be changed within the range of 10 to 100% of the rated capacity.

Specifications1 (Sensor assembly)

Pressure Port Type/Size ISO Ferrule/VARIVENT®/ISO Cap-nut/Screw mount/Other custom
Rated capacity 50kPa–3MPa
Pressure Port material Sensor part: SUS316L, Equivalent to Hastelloy C-276, SUS329J4L
Wetted part surface finish Depending on pressure port material
Overload limit 400%R.C.(Rated capacity 3MPa: 150%R.C.)
Destruction point 1000%R.C.(Rated capacity 3MPa: 300%R.C.)

Specifications2 (Amplifier part + Sensor assembly)

Accuracy(*1)
(Including Nonlinearity, Hysteresis, and repeatability)
±0.5%F.S.±1digit.
10–20%R.C. Scaling: ±1%F.S.±1digit.
Temperature compensation range (Wetted part) −5–150°C (Measurement pressure medium)
Safe temperature range(Wetted part) −5–150°C (Measurement pressure medium)
Temperature effect on zero balance ±0.5%R.C./10°C or less
Temperature effect on load ±0.5%R.C./10°C or less
Ambient temperature and humidity range Temperature: 0–50°C(Amplifier part, Display part), Humidity: 0–90%RH(No condensation)
Material Aluminum die casting(Case Material), SUS304(Radiating fin)
IP Rating Equivalent to IP67
Mass Approx. 900g (Including Sensor part/ISO Ferrule2S)
Accessories Operating manual 1 copy, Test report 1 copy, Cable gland
Brackets for exclusive use of the PP type, U-shaped bolt, Fixing nut
  • (*1)For the ferrule type, zero adjustment is to be made after the clamp is tightened.

Display part specifications

Display 7 segment 4digit LCD display Character height: Approx. 12.7mm
Display range Depends on the factory setting. (Maximun-1999–1999)
Display update rate Approx. 3.5 times/sec.
Response time Depends on the dumping time constant.
Selected by 0.2, 0.5, 1, 2, 4, 8, 16, 32, 64 sec.(63% Access time)
(Stored maximum/minimum values do not depend on the display update rate.)

Analog output Specificationss

Analog output 4–20mA 2-wire (10–100%R.C. Output scaling variable)
Output range Approx. 3–22mA
Safe load resistance Power supply voltage DC24V, 380Ωmax.
Response time Depends on the dumping time constant
Selected by 0.2, 0.5, 1, 2, 4, 8, 16, 32, 64 sec. (63% Access time)

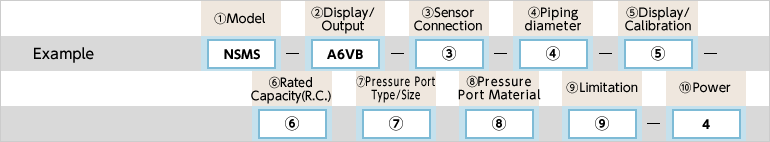

Model Selection

Example

Selection Check Model Specifications
1.Model NSMS High temperature type: Temperature range of wetted parts -5–150°C
2.Display/Analog output A6VB 4–20mA(2-wire) Output scaling variable
Response: Damping (Soft filter) Default 2 seconds (0.5Hz)
Display: With backlight
Safe load resistance: Power supply voltage DC24V, 380Ωmax.
3.Sensor connection   AS Directly attached under the amp part
  PB05 Separate(Cable 5m)
  PB10 Separate(Cable 10m)
4.Piping diameter 50A Diameter of fixed pipe for display unit
Nominal diameter: φ60.5mm
5.Display/Calibration   Positive pressure, Negative pressure ⑥Specify the rated capacity and unit.
* In case of negative pressure, put the calibration range value in parentheses.
  Compound pressure Compound pressure(Calibration range with plus/minus sign)(*2)
6.Rated capacity   005 50kPa Calibration range specification [50.0kPa]
  010 100kPa Calibration range specification [100.0kPa]
  020 200kPa Calibration range specification [200kPa] Compound [(-100–200)kPa](*2)
  021 200kPa Calibration range specification [(-100–200)kPa](*2)
(Specify this model at calibration for compound pressure if "focus on negative pressure" has been selected.)
  030 300kPa Calibration range specification [300kPa] Compound [(-100–300)kPa](*2)
  031 300kPa Calibration range specification [(-100–300)kPa](*2)
(Specify this model at calibration for compound pressure if "focus on negative pressure" has been selected.)
  050 500kPa Calibration range specification [500kPa]
  100 1000kPa Calibration range specification [1000kPa]
  300 3MPa Calibration range specification [3.00MPa] (Made-to-order)
(Withstand pressure: 150%R.C. ISO Cap-nut/screw mount only)
7.Pressure Port
Type/Size
  F1 Ferrule 1.5S
  F2 Ferrule 2S
  F3 Ferrule 2.5S [Made-to-order]
  F4 Ferrule 3S [Made-to-order]
  F6 Ferrule 4S [Made-to-order]
  V50A VARIVENT® DN50 [Made-to-order]
  V65A VARIVENT® DN65 [Made-to-order]
  V80A VARIVENT® DN80 [Made-to-order]
  V100A VARIVENT® DN100 [Made-to-order]
  R1 ISO Cap-nut 1.5S [Made-to-order]with Hexagon nut(HEX61)
  R2 ISO Cap-nut 2S [Made-to-order]with Hexagon nut(HEX76)
  M0 Single screw mount type Dedicated O-ring 1 pc attached
  M1 with JIS20K50A flange Dedicated O-ring 1 pc attached
  M2 with JIS20K80A flange Dedicated O-ring 1 pc attached
8.Pressure port material   Blank SUS316L Electro polish(Rz0.7µm, Ra0.2µm)
to all the rated apacity(⑥)
⑦to all the Pressure Port Type/Size
  HS1 Equivalent to Hastelloy C-276 Electro polish(Rz0.7µm, Ra0.2µm)
⑥Select from the rated capacity of 030/050/100
⑦Select from the Pressure Port Type/Size of F1/F2/F3/M0
[Made-to-order]
Negative pressure and compound pressure are not supported
  J4L SUS329J4L Buffing(#400)
⑥Select from the rated capacity of 030/050/100
⑦Select from the Pressure Port Type/Size of F1/F2/F3/M0
9.Limitation   H 400%R.C.(3MPa is not selectable)
  Blank 150%R.C.(3MPa only)
10.Power supply 4 DC24V (DC15.64–26.5V)Current consumption Approx. 23mA
  • (*2)In case of calibration for compound pressure, calibration is performed only for the positive pressure, and only measurement data are given for the negative pressure. In this case, acceptance criterion is within ±1%R.C. When focusing on the negative pressure, it is also possible to perform calibration for the negative pressure and to provide only measurement data (within ±1%R.C.) according to the request from the customer.
    Regarding calibration, specify 020, 030 (focus on positive pressure) or 021, 031 (focus on negative pressure) in ⑤ above when placing an order.

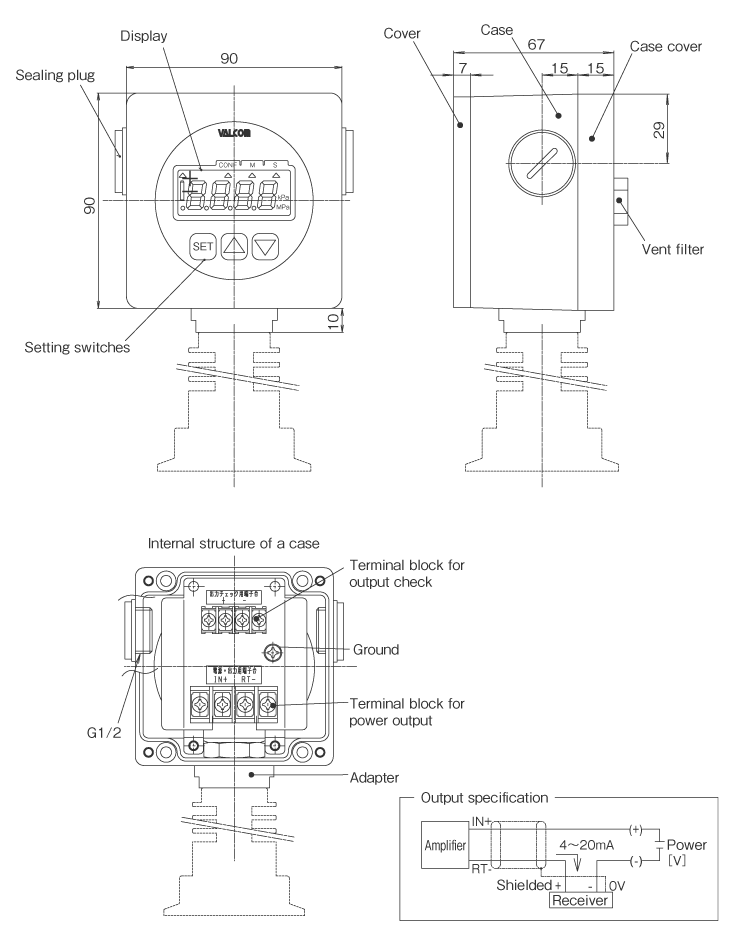

External dimensions [Sensor directly attached type] (Unit: mm)

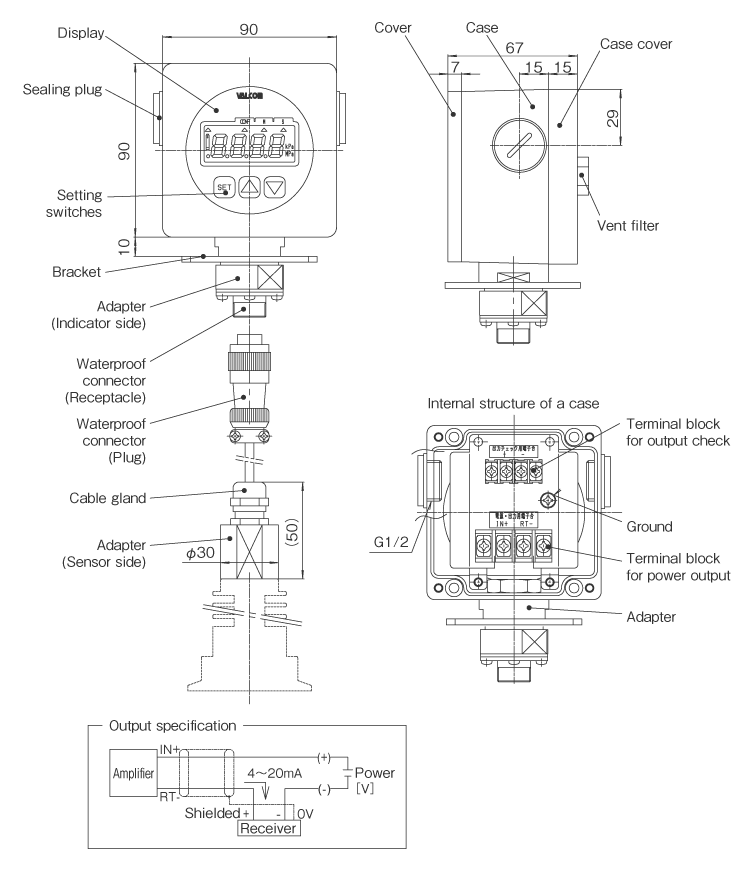

External dimensions [Sensor separate type] (Unit: mm)

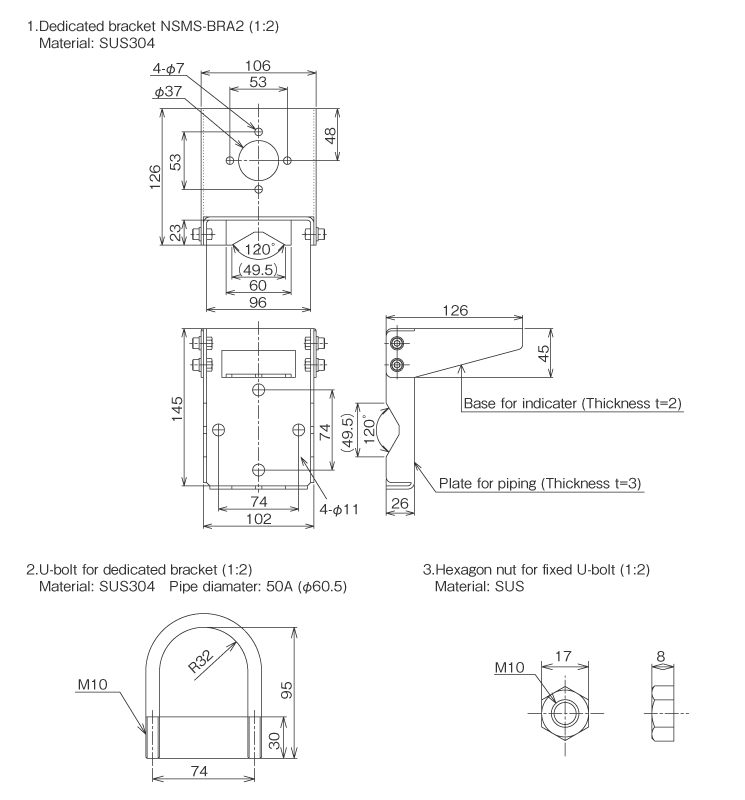

Accessories list (Unit: mm)

Accessories list
