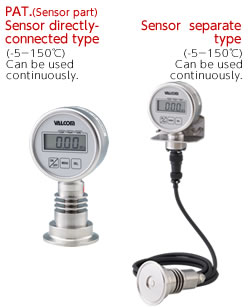

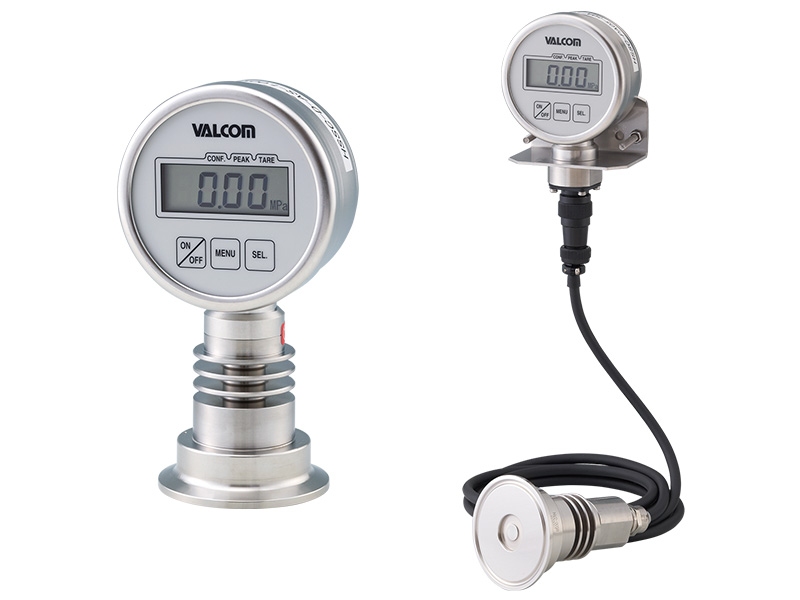

Sanitary Digital Pressure Meter (Battery type)
HSSC series50kPa–3MPa
*Image is ISO Ferrule 2S type
- Battery-operated digital display requires no wiring.
- Constructed with stainless steel in view of environmental resistance.
- Standard functions include max/min pressure monitoring, auto-zero and peak hold.
- Diaphragm with durability provides safe and reliable construction.
- Safe and reliable construction with no sealed liquid.
| Measured medium | Liquor, milk beverage, seasoning, pure water, chemical or other media. (These vary according to sensor materials) |
|---|---|
| Pressure type | Measurement at positive pressure, compound pressure, and negative pressure is possible. |
| Pressure range | Specify from (*1)[Range list]. |
| Output type | Not available |
| Moving average | Can be selected among 1, 2, 4, 8, 16, 32, 64, and 128 times. |
Specifications1 (Sensor assembly)
| Pressure Port Type/Size | Ferrule 15A / VARIVENT® / ISO Cap-nut / Screw mount / Other custom |
|---|---|
| Rated capacity | 50kPa–3MPa (Ferrule 15A: 1MPa) |
| Pressure port material | Sensor: SUS316L, Hastelloy C-276 (MA276), SUS329J4L |
| Wetted part surface finish | Depending on pressure port material |
| Overload limit | 400%R.C. (Ferrule 15A, Rated capacity 3MPa: 150%R.C.) |
| Destruction point | 1000%R.C. (Ferrule 15A, Rated capacity 3MPa: 300%R.C.) |
Specifications2 (Amplifier part + Sensor assembly)
| Accuracy | Nonlinearity: ±0.5%R.C. Hysteresis: ±0.5%R.C. Ferrule 15A accuracy at room temperature: ±1%R.C.±1-digit. (Including Nonlinearity, Hysteresis) |
|---|---|
| Temperature compensation range (Wetted part) | −5–150°C |
| Safe temperature range (Wetted part) | −5–150°C |
| Temperature effect on zero balance | ±0.5%R.C./10°C(Rated capacity 300, 500, 1000kPa, 3MPa) ±0.7%R.C./10°C(Rated capacity 50, 100, 200kPa) Ferrule 15A: ±0.7%R.C./10°C |
| Temperature effect on load | ±0.5%R.C./10°C(Rated capacity 300, 500, 1000kPa, 3MPa) ±0.7%R.C./10°C(Rated capacity 50, 100, 200kPa) Ferrule 15A: ±0.7%R.C./10°C |
| Ambient temperature and humidity range | Temperature: 0–50°C (No freezing), Humidity: 0–90%RH (No condensation) |
| Funcitons | Max./Min. monitoring funciton, Peak Hold function, Fix zero setting(*2) |
| Material | SUS304 (Case), SUS304 (Radiating fin) |
| IP Rating | Equivalent to IP65 |
| Mass | Approx. 670g (Including Sensor part/ISO Ferrule2S) |
| Accessories | Operating manual 1 copy, Test report 1 copy, 1 Display bracket (Separate type only), Battery for monitors |

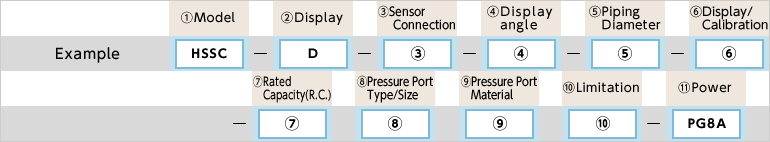

Model Selection
| Selection | Check | Model | Specifications | |
|---|---|---|---|---|
| 1.Model | ○ | HSSC | High temperature type: Temperature range of wetted parts -5–150°C | |
| 2.Display | ○ | D | 4-digit LCD Display Character height: Approx. 12.7mm Display cycle: Selectable 125ms/250ms/500ms/1s/2s/5s/10s (Default: 1sec) |
|
| 3.Sensor connection | AS | Directly attached under the amp part (No collar) | ||
| PA05 | Separate (Cable 5m), Vertical pipe mounting type *Sensor separate: Ferrule 15A cannot be used |
|||
| PA10 | Separate (Cable 10m), Vertical pipe mounting type *Sensor separate: Ferrule 15A cannot be used |
|||
| PB05 | Separate (Cable 5m), Lateral pipe mounting type *Sensor separate: Ferrule 15A cannot be used |
|||
| PB10 | Separate (Cable 10m), Lateral pipe mounting type *Sensor separate: Ferrule 15A cannot be used |
|||
| 4.Display angle | Blank | Front upwards | ||
| (3) | Front right direction | |||
| (6) | Front downwards | |||
| (9) | Front left directon | |||
| 5.Diameter of pipe (*3) | 40A | Nominal diameter for pipe mounting: φ48.6 | ||
| 50A | Nominal diameter for pipe mounting: φ60.5 | |||
| 6.Display/Calibration range | Positive pressure, Negative pressure, Compound pressure | Specify the values and units of display and calibration ranges Specify from (*1) [Range list]. |
||
| 7.Rated capacity | 005 | 50kPa | ||
| 010 | 100kPa | |||
| 020 | 200kPa (*4) | |||
| 021 | 200kPa (*4) (Specify this model at calibration for compound pressure if "focus on negative pressure" has been selected.) |
|||
| 030 | 300kPa (*4) | |||
| 031 | 300kPa (*4) (Specify this model at calibration for compound pressure if "focus on negative pressure" has been selected.) |
|||
| 050 | 500kPa | |||
| 100 | 1000kPa | |||
| 300 | 3MPa[Display, Calibration: Specify 3.00MPa] [Made-to-order] (Withstand pressure: 150%R.C.ISO Cap-nut and screw mount only) |
|||
| 8.Pressure Port Type/Size |
F0(*10) | Ferrule 15A ⑦Only rated capacity 100 can be selected ⑨Only wetted material J4L can be selected |
Positive pressure only | |
| F1 | ISO Ferrule 1.5S | |||
| F2 | ISO Ferrule 2S | |||
| F3 | ISO Ferrule 2.5S [Made-to-order] | |||
| F4 | ISO Ferrule 3S [Made-to-order] | |||
| F6 | ISO Ferrule 4S [Made-to-order] | |||
| V50A | VARIVENT® DN50 [Made-to-order] | |||
| V65A | VARIVENT® DN65 [Made-to-order] | |||
| V80A | VARIVENT® DN80 [Made-to-order] | |||
| V100A | VARIVENT® DN100 [Made-to-order] | |||
| R1 | ISO Cap-nut 1.5S [Made-to-order]with Hexagon nut (HEX61) | |||
| R2 | ISO Cap-nut 2S [Made-to-order]with Hexagon nut (HEX76) | |||
| M0 | Single screw mount type Dedicated O-ring 1 pc attached | |||
| M1 | with JIS20K50A flange Dedicated O-ring 1 pc attached | |||
| M2 | with JIS20K80A flange Dedicated O-ring 1 pc attached | |||
| 9.Pressure port material | Blank | SUS316L Electro polish (Rz0.7µm, Ra0.2µm) to all the rated apacity(⑦) ⑧Supports all pressure port type/size.(Excluding F0) |
||
| HS1 | Equivalent to Hastelloy C-276 Electro polish (Rz0.7µm, Ra0.2µm) ⑦Select from the rated capacity of 030/050/100 ⑧Select from the Pressure Port Type/Size of F1/F2/F3/M0 |
[Made-to-order] Negative pressure and compound pressure are not supported |
||
| J4L (*11) | SUS329J4L Buffing(#400) ⑦Select from the rated capacity of 030/050/100 ⑧Select from the Pressure Port Type/Size of F0/F1/F2/F3/M0 |
|||
| 10.Limitation | P | 400%R.C. (3MPa and Ferrule 15A are not selectable) | ||
| Blank | 150%R.C. (3MPa and Ferrule 15A only) | |||
| 11.Power supply | ○ | PG8A | Two AA alkaline (cell) batteries (LR6) | |
Range list(*1)
| Rated capacity | Specification of display range | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Positive pressure | Compound pressure | Negative pressure | ||||||||
| Model | Rated | Unit | kPa | MPa | kPa | MPa | kPa | MPa | ||
| 005 | 50 | kPa | 50 | 50.0 | - | 0.050 | - | - | - | - |
| 010 | 100 | 100 | 100.0 | - | 0.100 | - | - | - | - | |
| 020 (*7) | 200 | 200 | - | 0.20 | 0.200 | −100–200 | −.100–.200 | −100 | −.100 | |
| 021 (*8) | - | - | - | - | - | - | ||||
| 030 (*7) | 300 | 300 | - | 0.30 | 0.300 | −100–300 | −.100–.200 | −100 | −.100 | |
| 031 (*8) | - | - | - | - | - | - | ||||
| 050 (*9) | 500 | 500 | - | 0.50 | 0.500 | −100–500 | −.100–.500 | - | - | |
| 100 (*9) | 1000 | 1000 | - | 1.00 | 1.000 | −100–1000 | −.100–1.000 | - | - | |
| 300 | 3 | MPa | - | - | 3.00 | - | - | - | - | - |
- (*2) When auto power off is selected, it is possible to set whether to turn off the display automatically after "1 or 5 minutes" or to always keep power ON. (Default: 5 minutes)
- (*3) Included in case of B05 or PB10 (Blank: AS Sensor directly connected on bottom)
- (*4) In case of calibration for compound pressure, calibration is performed only for the positive pressure, and only measurement data are given for the negative pressure. In this case, acceptance criterion is within ±1%R.C. When focusing on the negative pressure, it is also possible to perform calibration for the negative pressure and to provide only measurement data (within ±1%R.C.) according to the request from the customer.
Regarding calibration, specify 020, 030 (focus on positive pressure) or 021, 031 (focus on negative pressure) in ⑥ above when placing an order. - (*5) Battery: Two AA batteries are included.
- (*6) These batteries are for monitoring purpose. Note that they may run out sooner. Put the batteries in the display unit of the sensor according to the manual. A silicon tube for venting is contained in the case. When changing the batteries, handle the case carefully.
- (*7) In case of compound pressure: Focus on positive pressure Non Linearity ±0.5%R.C. (negative pressure side ±1%R.C.), Hysteresis ±0.5%R.C.(negative pressure side ±1%R.C.)
- (*8) In case of compound pressure: Focus on negative pressure Non Linearity ±0.5%R.C. (positive pressure side ±1%R.C.), Hysteresis ±0.5%R.C.(positive pressure side ±1%R.C.)
- (*9) In case of compound pressure: Only guarantee the accuracy of positive pressure, negative pressure side is for reference.
- (*10) Please also check the Ferrule 15A specifications.
- (*11) In case of Ferrule 15A: Electro polish (Rz0.7µm, Ra0.2µm)

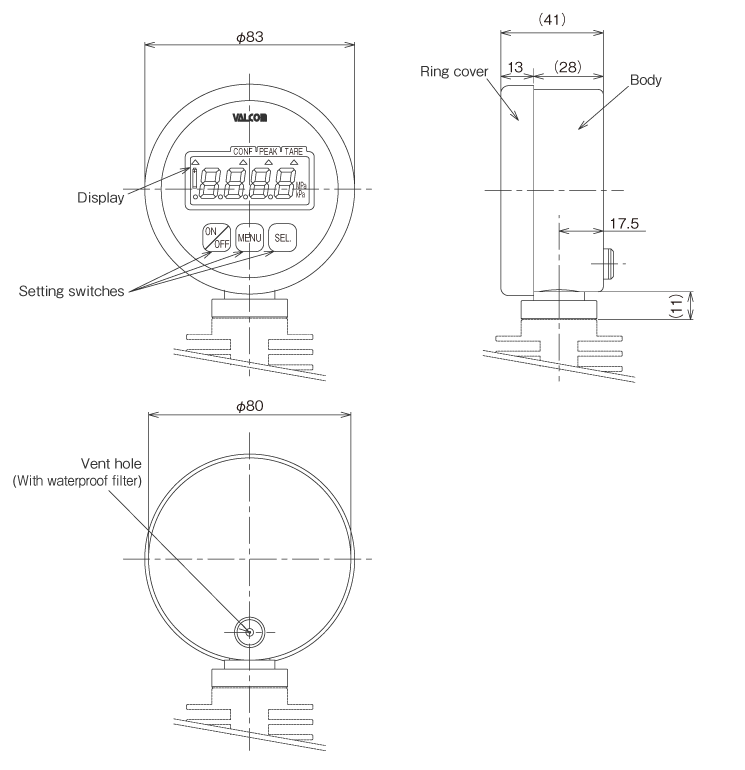

External dimensions Sensor directly attached type(Unit: mm)

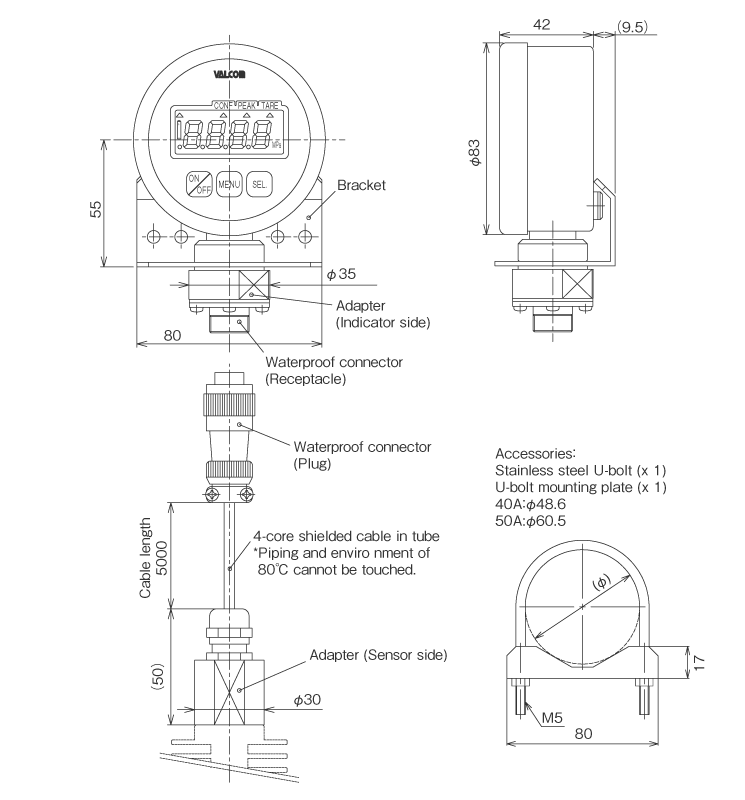

External dimensions Sensor separate type(Unit: mm)

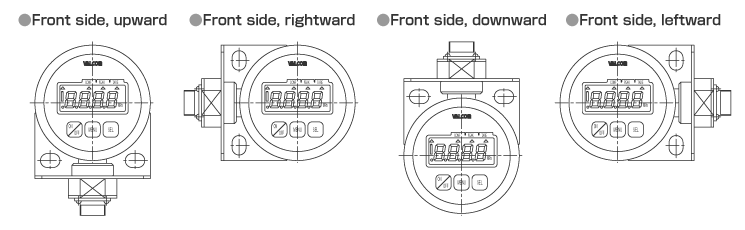

Display angle
