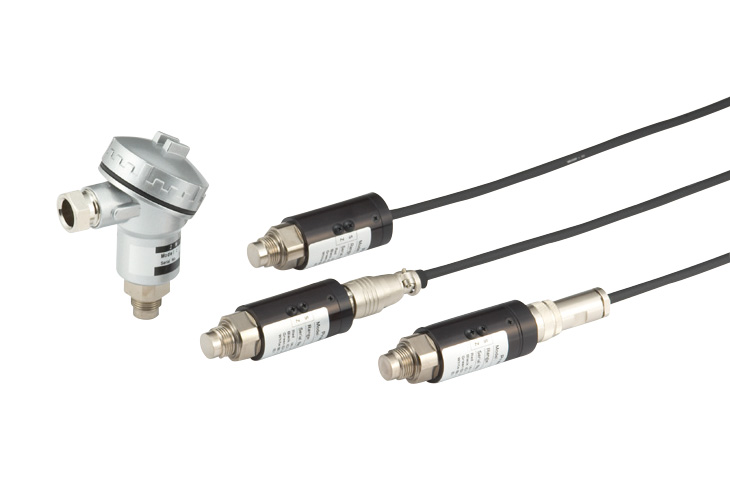

Pressure Transmitter for Flush type Middle High Pressure
VPRF series1MPa–50MPa
- Suitable for measurement of viscous media since the flush type (no feed port) wetted part is hardly clogged up.
- Wetted part constructed integral with diaphragm does not use any sealed liquid, offering durability, reliability and long life.
- Abundant analog output available.
[4–20mA (2 wire system, 4 wire system), 1–5V, 0–5V, 0–10V]
| Measured medium | Water, oil, gases or other media that will not corrode 15-5PH (precipitation-hardened stainless steel). |
|---|---|
| Pressure Type | Positive and compound pressures can be measured. |
| Measured Range | Can be specified within the range of 1 MPa to 50 MPa of rated capacity (Calibration: 0.5 MPa to 50 MPa). |
| Output type | Specify among 4 to 20 mA (2 wire system, 4 wire system), 1 to 5 V, 0 to 5 V, and 0 to 10 V. |
Specifications
| Non Linearity | ±0.5%R.C. |
|---|---|
| Hysteresis | ±0.5%R.C. |
| Compensated Temperature Range (Temperature of medium to be measured) |
−10–50°C (No condensation or freezing) |
| Safe Temperature Range (Temperature of medium to be measured) |
−10–75°C (No condensation or freezing) |
| Temperature Effect on Zero Balance | ±0.8%R.C./10°C |
| Temperature Effect on Load | ±0.8%R.C./10°C |
| Safe Overload Rating | 150%R.C. |
| Ultimate Overload Rating | 200%R.C. |
| Insulation Resistance | 100MΩ or more (DC50V) |
| Pressure Port Material | 15-5PH (Precipitation hardening stainless steels) (*1) |
| Connection Screw | G3/8 |
| Recommended fastening Torque | 10–20N·m |
| Fastening Torque;Maximum | 30N·m |
| Power | Selectable: 4 DC24V (±10%), 5 DC12V (±10%) *Only 24V DC available when analog output is A5 |
| Cable | 4- or 2-core shielded (oilproof) cable 2m Standard φ6mm |
| Weight | Approx. 300g (Cable not included) |
| Accessories | Operating manual 1 copy (Specify English or Japanese.) Test report 1 copy Aluminum packing(×1)(Copper packing × 1 for 50 MPa model only) |
Model Selection
| Selection | Check | Model | Specifications | |||
|---|---|---|---|---|---|---|
| 1.Model | ○ | VPRF | Pressure Transmitter for Flush type Middle High Pressure *Connection screw: G3/8 |
|||
| 2.Analog output *Only A6 available for waterproof terminal box type |
- | - | Output type | Response frequency | Safe load resistance | Consumption current |
| A2 | 1–5V | 500Hz | 5kΩ or more | Approx. 23mA | ||
| A3 | 4–20mA (4-wire) |
DC24V: 500Ω or less/ DC12V: 250Ω or less |
Approx. 40mA | |||
| A4 | 0–5V | 5kΩ or more | Approx. 23mA | |||
| A5 | 0–10V | 5kΩ or more | Approx. 23mA | |||
| A6 | 4–20mA (2-wire) |
1kHz | DC24V: 500Ω or less/ DC12V:150Ω or less |
- | ||
| 3.Calibration | - | - | Rated capacity | Example of calibration range | ||
| See right table. Enter the range in the as it is. |
1MPa | 1MPa(0–1) MPa | 0.5MPa(0–0.5) MPa | |||
| 2MPa | 2MPa(0–2) MPa | 1.5MPa(0–1.5) MPa | ||||
| 5MPa | 5MPa(0–5) MPa | 3MPa(0–3) MPa | ||||
| 10MPa | 10MPa(0–10) MPa | 7MPa(0–7) MPa | ||||
| 20MPa | 20MPa(0–20) MPa | 14MPa(0–14) MPa | ||||
| 50MPa | 50MPa(0–50) MPa | 35MPa(0–35) MPa | ||||
| 4.Cable Connection | Blank | Standard connector Equivalent to IP40 | ||||
| W | Waterproof connector Equivalent to IP56 | |||||
| S | Pigtail Equivalent to IP54 | |||||
| T | Waterproof terminal box type Equivalent to IP55 *Applicable only when analog output is A6. Cable not included | |||||
| 5.Power | 4 | DC24V (±10%) | ||||
| 5 | DC12V (±10%) *Not available when analog output is A5 | |||||
| 6.Length (Cable) | 2m | 2m Standard | ||||
| 3m | 3m | |||||
| 5m | 5m | |||||
| 10m | 10m | |||||
| □□m | Other length *Contact our sales office for other cable lengths. |
|||||

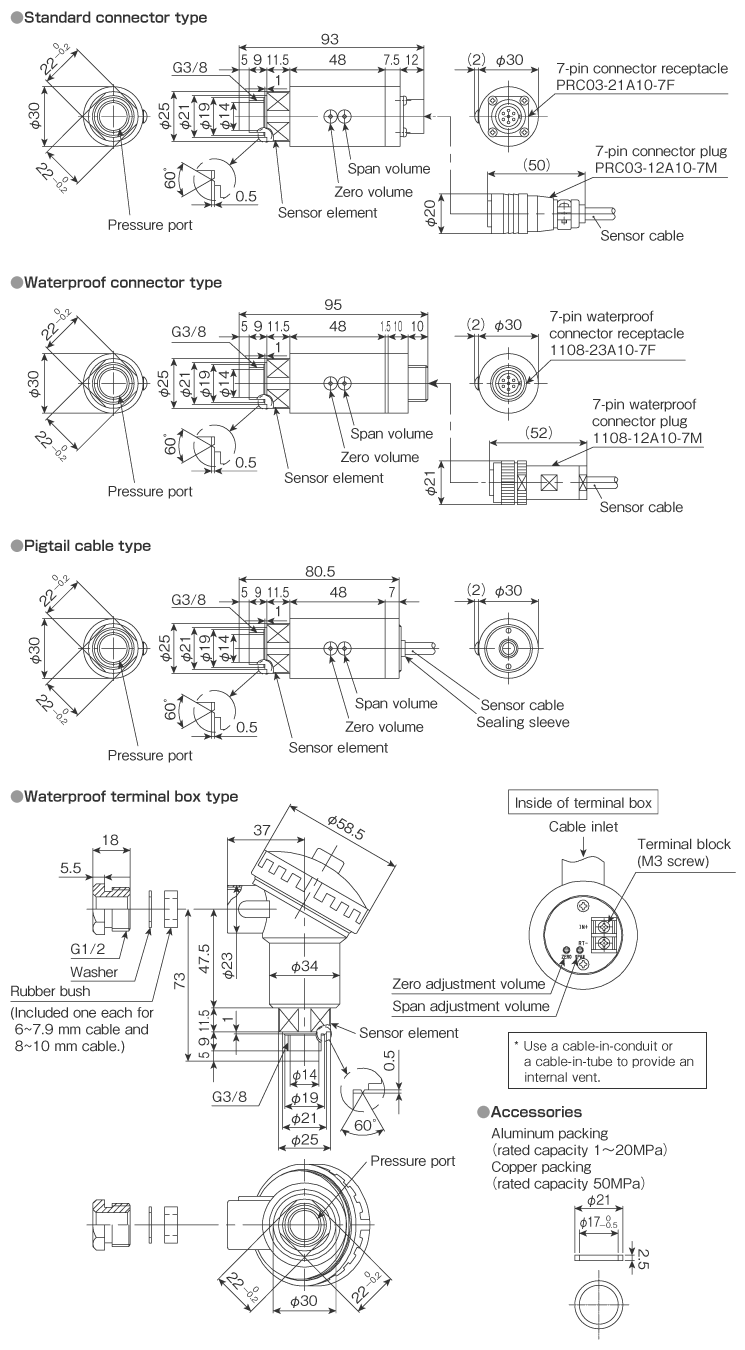

External dimensions (Unit: mm)
*Refer to line connection here
