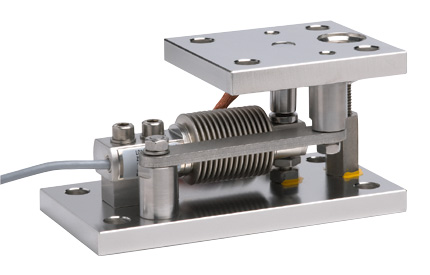

Extremely High Accurate Module Unit for VZ6FC6
VZ6FC6/MLR series
50kg–200kg
- Suitable for tank weighing
- Module type
- Particularly good environmental resistance
- Overload protection and uplift prevention mechanisms included
- Compact design with limited height
- Anti-vibration mechanism with a stay rod
- Self-standing design with bendall bearing
- Made of stainless steel
Specifications
| Rated output | 1.999–2.001mV/V |
|---|---|
| Nonlinearity | ±0.0110%R.C. |
| Hysteresis | ±0.0080%R.C. |
| Zero balance | −0.020–0.070mV/V |
| Temperature effect on zero balance | ±0.0093%R.C./10°C |
| Temperature effect on load | ±0.0040%R.C./10°C |
| Safe overload rating | 150%R.C. |
| Allowable dynamic load | 100%R.C. |
| Temperature compensation range | −10–40°C (No condensation or freezing) |
| Safe temperature range | −30–70°C (No condensation or freezing) |
| Input terminal resistance | 350.0–480.0Ω |
| Output terminal resistance | 355.88–356.12Ω |
| Recommended excitation voltage | 5V |
| Excitation voltage range | 0.5–12V |
| Insulation resistance | 5000MΩ |
| IP Rating | Equivalent to IP68 (Note 1) |
| Cable | 6-core Shielded cable 3m |
- Creep 30min: ±0.083%R.C.
- (Note 1) Sealing performance of the cable outlet may deteriorate due to the change of cable jacket over years.
Model selection
| Selection | Model | Rated capacity | Deflection at R.C. | Weight |
|---|---|---|---|---|
| VZ6FC6/MLR-50kg | 50kg (490.3N) | Approx. 0.27mm | Approx. 8–9kg | |
| VZ6FC6/MLR-100kg | 100kg (980.7N) | Approx. 0.31mm | ||
| VZ6FC6/MLR-200kg | 200kg (1.961kN) | Approx. 0.39mm |
- *Weight includes cable.

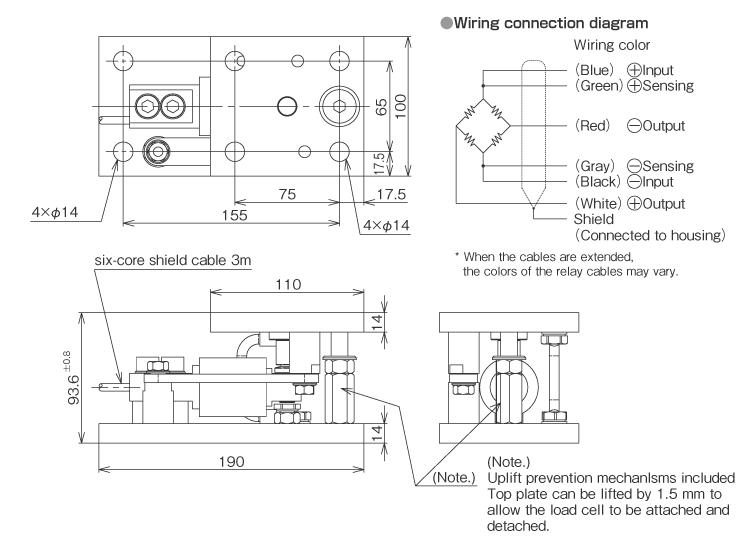

External dimensions (Unit: mm)
Load Cell
