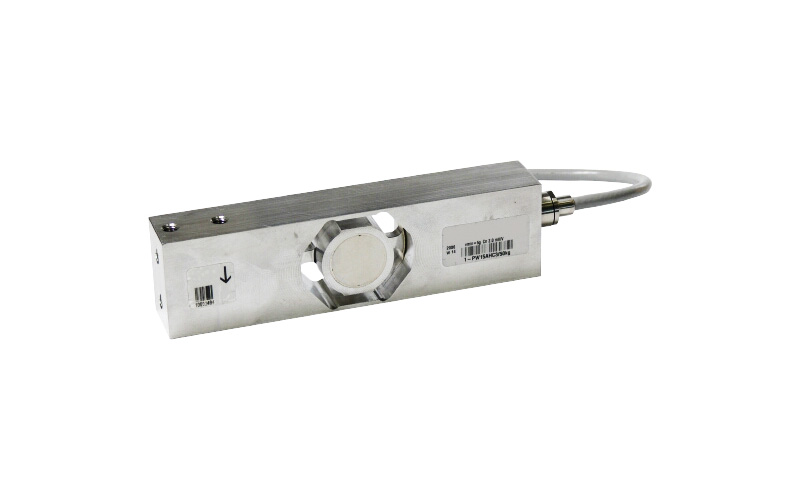

All Stainless Single Point type Load Cell
VPW15AHC3 series

  • High accuracy
  • IP69K to withstand high-pressure water washing


Rated output 2.0±0.2mV/V
Nonlinearity ±0.0166%R.C.
Hysteresis ±0.0166%R.C.
Zero balance ±0.1mV/V
Temperature effect on load 20–40°C:±0.0175%R.C./10°C
Safe overload rating 150%R.C.
Temperature compensation range −10–40°C (No condensation or freezing)
Safe temperature range −10–50°C (No condensation or freezing)
Input terminal resistance 380±15Ω
Output terminal resistance 380±10Ω
Recommended excitation voltage 5V
Excitation voltage range 1–12V
Insulation resistance 1000MΩ
IP rating Equivalent to IP68/IP69K (Note 1)
Cable φ5.4-6-core Shielded cable 3m
  • Creep 30min: ±0.0166R.C. Eccentric error: ±0.0233%R.C.
  • (Note 1) Sealing performance of the cable outlet may deteriorate due to the change of cable jacket over years.

Model selection

Selection Model Rated capacity Temperature effect on zero balance Maximum Load Area Ultimate overload rating Deflection at R.C. Weight
  VPW15AHC3-10kg 10kg (98.071N) ±0.0140%R.C./10°C 500×400mm 150%R.C. Approx. 0.5mm Approx. 1kg
  VPW15AHC3-20kg 20kg (196.1N)
  VPW15AHC3-50kg 50kg (490.3N)
  VPW15AHC3-100kg 100kg (980.7N)
  • *Weight includes cable.

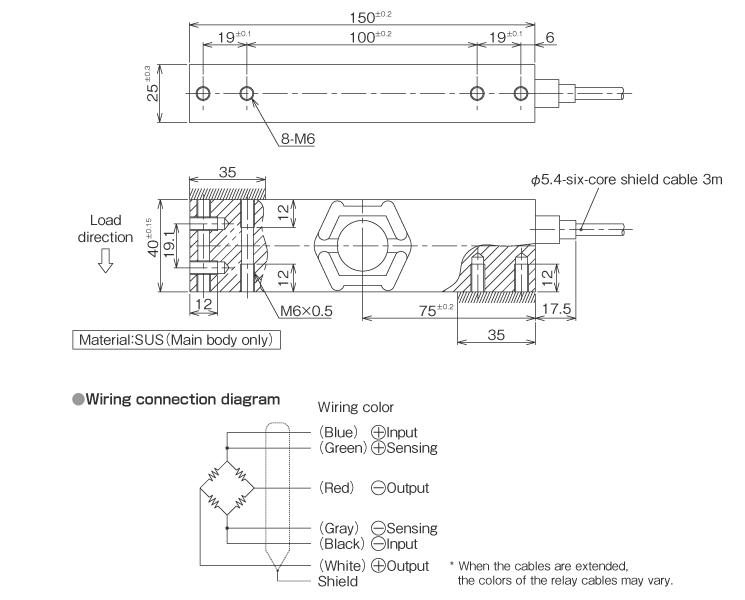

External dimensions (Unit: mm)

External dimensions
