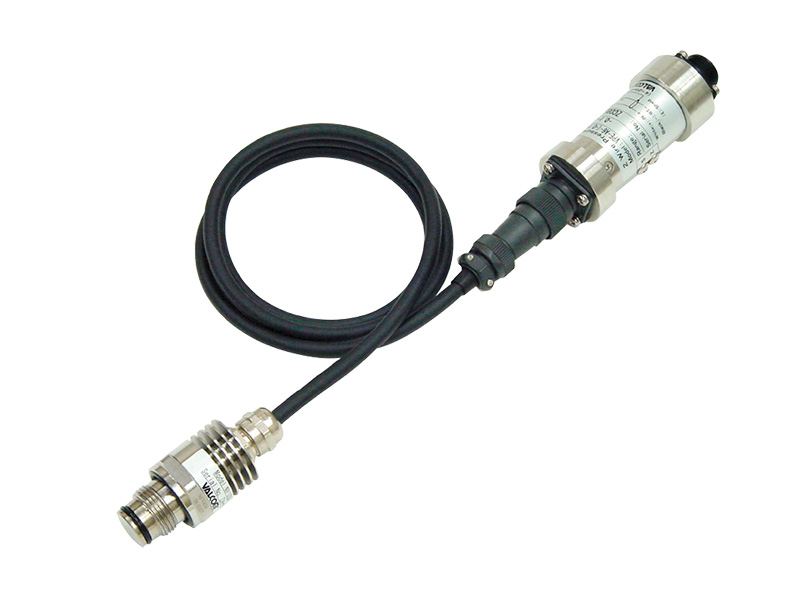

Sanitary Pressure Transmitter for Filling Machines (Screw type)
VPE series
0–0.9MPa

This product requires meeting for specifications.
Contact our sales office.

  • Dedicated to fillers - From chemical cleaning, steam sterilization up to beverage filling.
  • Pressure port with higher strength.
  • Safe and reliable construction with no sealed liquid.
Measured medium Beer, beverage or other media (These vary according to sensor materials)
Pressure type Measurement at positive pressure is possible.
Pressure range Calibration: 0–0.9MPa
Output type 5.6–20mA(2wire)

Specifications1 (Sensor assembly)

Rated capacity 1000kPa
Overload limit 400%R.C.
Nonlinearity ±0.8%R.C.
Hysteresis ±0.5%R.C.
Zero balance ±0.6mV/V
Temperature compensation range 0–150°C (No condensation or freezing)
Safe temperature range 0–150°C (No condensation or freezing)
Temperature effect on zero balance ±0.7%R.C./10°C
Temperature effect on load ±0.7%R.C./10°C
Insulation resistance 100MΩ or more(DC50V)
Input terminal resistance 340.0–360.0Ω
Output terminal resistance 340.0–360.0Ω
Material SUS630(Wetted part)
IP Rating Equivalent to IP65
Mass Approx. 450g(Sensor+Cable only)
Accessories Operating manual 1 copy (Specify English or Japanese.)
Test report 1 copy
Dedicated 2 O-rings (Ethylene propylene diene rubber)

Specifications2 (amplifier part)

Analog output 5.6 to 20 mA for the pressure range of 0 to 0.9 MPa
2-wire(Safe load resistance 500Ωmax.)
Ambient temperature and humidity range Temperature: 0–70°C(No freezing), Humidity: 0–90%RH(No condensation)
Power supply DC24V±10%
Material SUS304(Case)
Option Amplifier case fixation metal fittings

Model Selection

Example

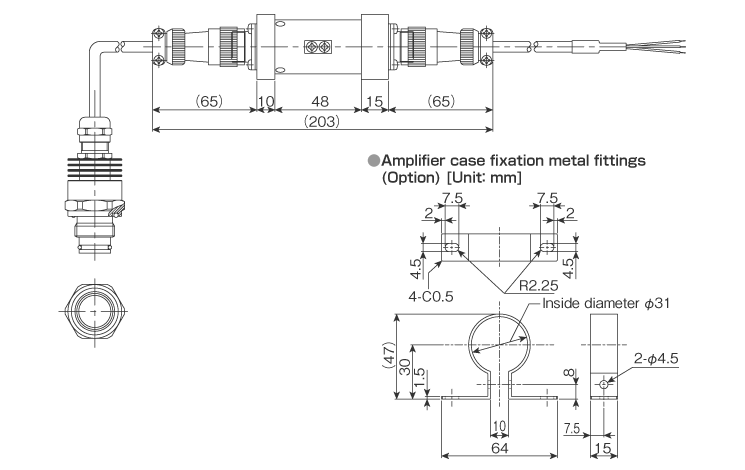

External dimensions (Unit: mm)

External dimensions
