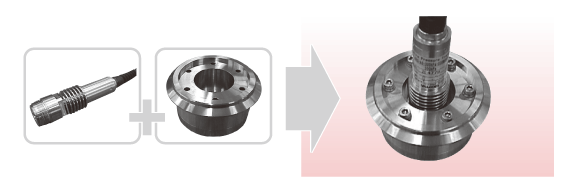

Transform Assembly image
Material table of Pressure port
●=SUS316L Electro polish (Rz0.7µm, Ra0.2µm), ○=Equivalent to Hastelloy C-276 Electro polish (Rz0.7µm, Ra0.2µm)
◎=SUS329J4L Buffing(#400)
| Screw mount Rated capacity | 50kPa | 100kPa | 200kPa | 300kPa | 500kPa | 1000kPa | 3MPa |
|---|---|---|---|---|---|---|---|
| Pressure port type | ● | ● | ● | ●○◎ | ●○◎ | ●○◎ | ● |

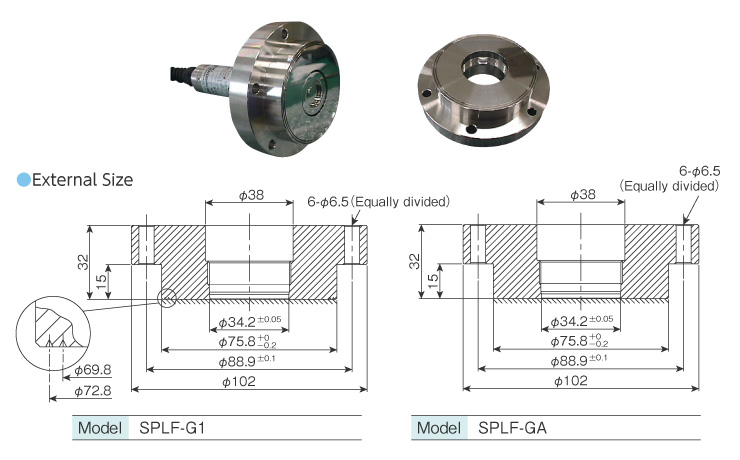

Taylor type indented flange

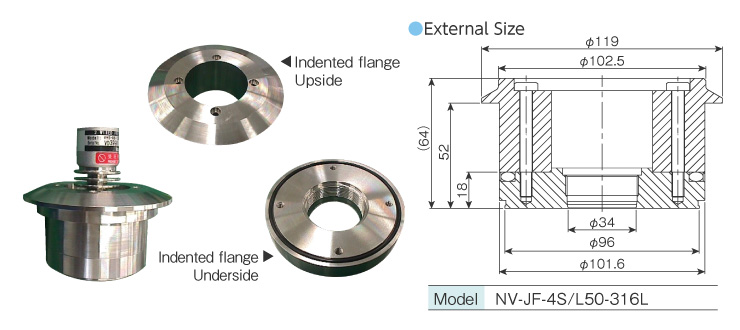

Ferrule 4S indented flange

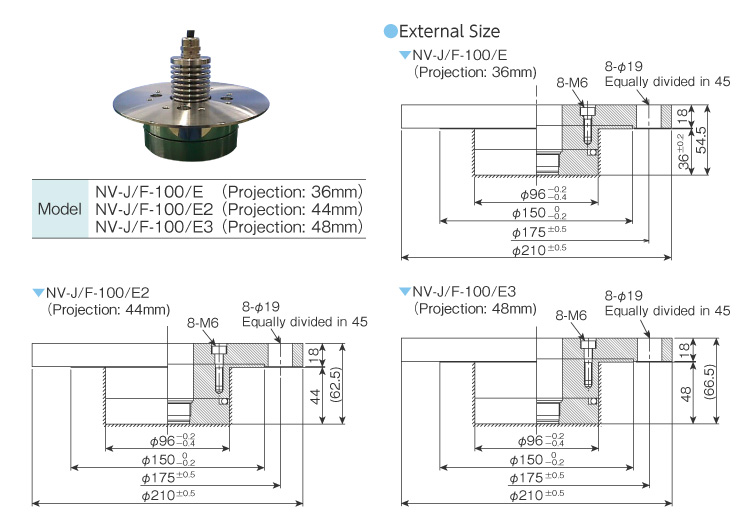

Special indented flange

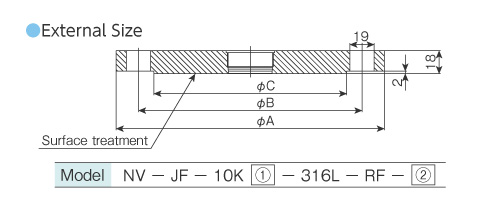

JIS10K flange
| Model | notes | A | B | C | Bolt holes | |
|---|---|---|---|---|---|---|
| ①Piping diameter | 50A | φ60.5 | 155 | 120 | 96 | 4 |
| 80A | φ89.1 | 185 | 150 | 126 | 8 | |
| 100A | φ114.3 | 210 | 175 | 151 | 8 | |
| ②Surface treatment | SPE | Electro polish (Rz0.7µm, Ra0.2µm) | ||||
| SPBF | Buffing (#400) | |||||
| Blank | Cut finished (Ra0.8) | |||||

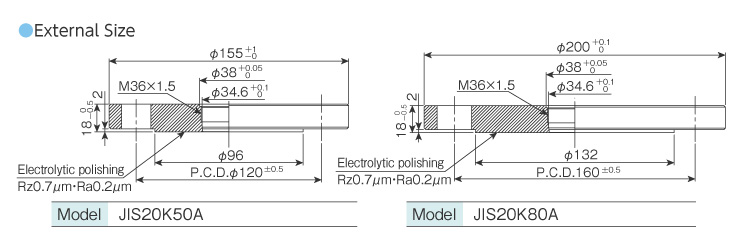

JIS20K flange
Selection for amplifier
| NSMS-A6VB | HSSC |
|---|---|
| NSMS-A6VB (Sensor separate) | HSSC (Sensor separate) |
| HSSC-A6V(B) | VHS (Pigtail S type) |
| HSSC-A6V(B) (Sensor separate) | VHS (Terminal box Model T) |
| HSSC-A6 | HSMC2 |
| - | HSMC |
Common specifications
| Rated Renge | 50, 100, 200, 300, 500kPa 1000kPa, 3MPa |
|---|---|
| Material | pressure part: SUS316L flange part: SUS316L |
| Accuracy at room temperature | ±0.3%R.C.(300, 500, 1000kPa, 3MPa) ±0.35%R.C.(50, 100kPa) |
| Temperature effect on zero balance | ±0.35%R.C./10°C (Rated 300, 500, 1000kPa, 3MPa) ±0.5%R.C./10°C (Rated 50, 100kPa) |
| Temperature effect on load | ±0.35%R.C./10°C (Rated 300, 500, 1000kPa, 3MPa) ±0.5%R.C./10°C (Rated 50, 100kPa) |
Sanitary Pressure Sensor
