Specialized manufacturer of Digital Pressure Meters and Load Cells

VALCOM CO.,LTD.

Made-to-order

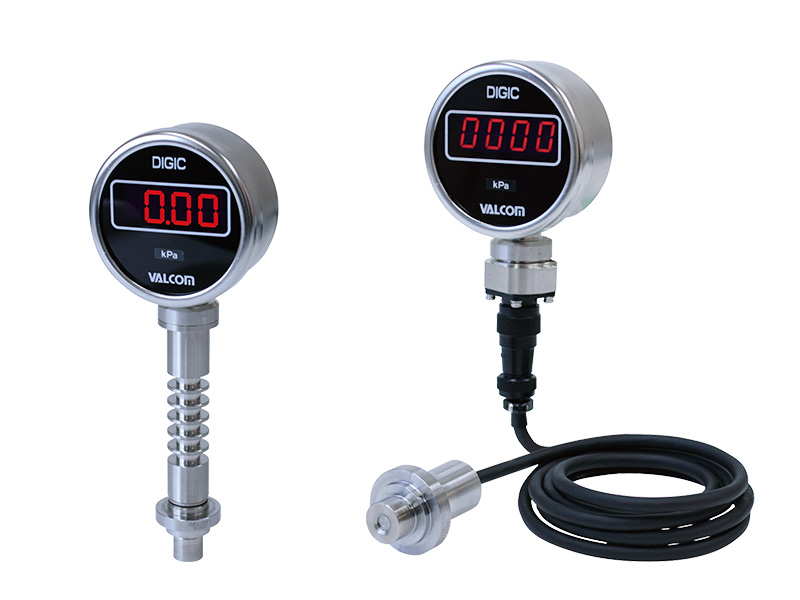

Sanitary Pressure Sensor for Homogenizers series
Homogenizers series

This product requires meeting for specifications.
Contact our sales office.

  • Custom-built sensor available as per customer's requirements.
  • Diaphragm with overwhelming durability provides safe and reliable construction.
  • Safe and reliable construction with no sealed liquid.
Measured medium Liquor, milk beverage, seasoning, pure water, chemical or other media.
(These vary according to sensor materials)
Pressure type Measurement at positive pressure is possible.
Pressure range To be determined through meeting for specifications.
Display range 4mA side: Specify the range between 0 and 1999.

Specifications1(Sensor part)

Pressure Port Type/Size To be determined through meeting for specifications.
Rated capacity To be determined through meeting for specifications.
Material SUS630
Overload limit 200%R.C.

Specifications2 (Amplifier part+Sensor part)

Nonlinearity- ±0.5%R.C.
Hysteresis ±0.5%R.C.
Temperature compensation range (Wetted part) −5–130°C
Safe temperature range(Wetted part) −5–150°C
Ambient temperature range 0–50°C(No freezing)
Ambient humidity range 35–85%RH(No condensation)
Output power To be determined through meeting for specifications.
Temperature effect on zero balance ±0.5%R.C./10°C, 35–85%R.H.(No condensation)
Temperature effect on load ±0.5%R.C./10°C
Material Case: SUS304

Specifications3

Analog output To be determined through meeting for specifications.
Sensor connection Sensor directly connected on bottom(Flangeless)
With senosr separate cable 5m(Tip waterproof connector included)
Display angle Front side, upward, Front side, rightward, Front side, downward, Front side, leftward
Diameter of pipe
* Senosr separate only
Nominal diameter for mounting pipe: φ48.6, φ60.5
Display/Calibration To be determined through meeting for specifications.
Cable connection To be determined through meeting for specifications.
Power supply To be determined through meeting for specifications.
Puressure sensor for Homogenizers To be determined through meeting for specifications.

External dimensions (Unit: mm) [This is for illustrative purposes]

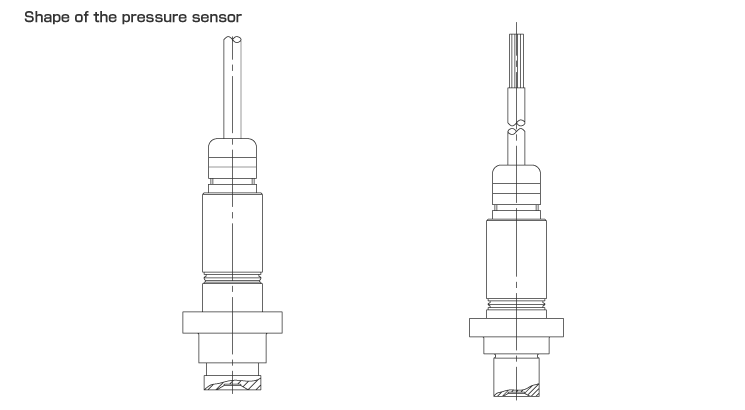

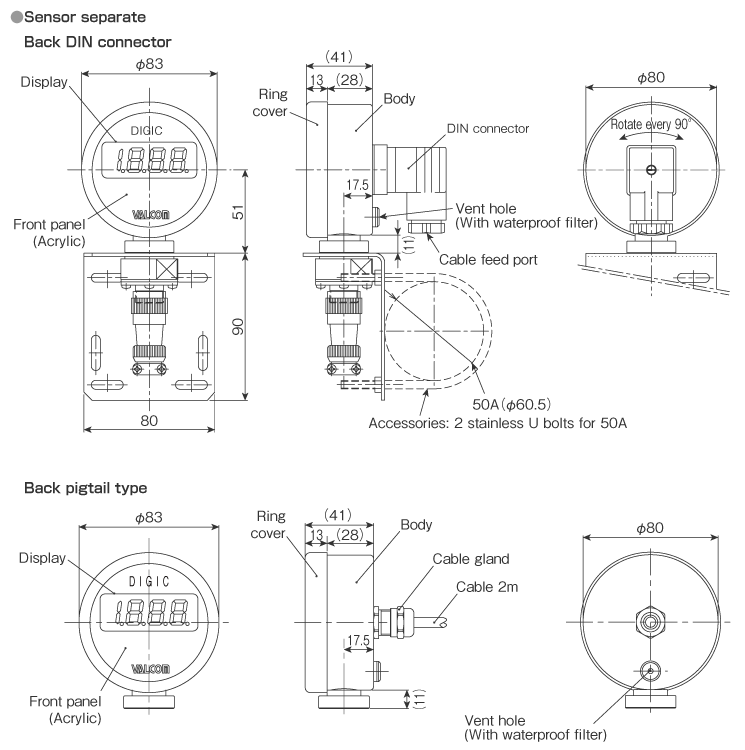

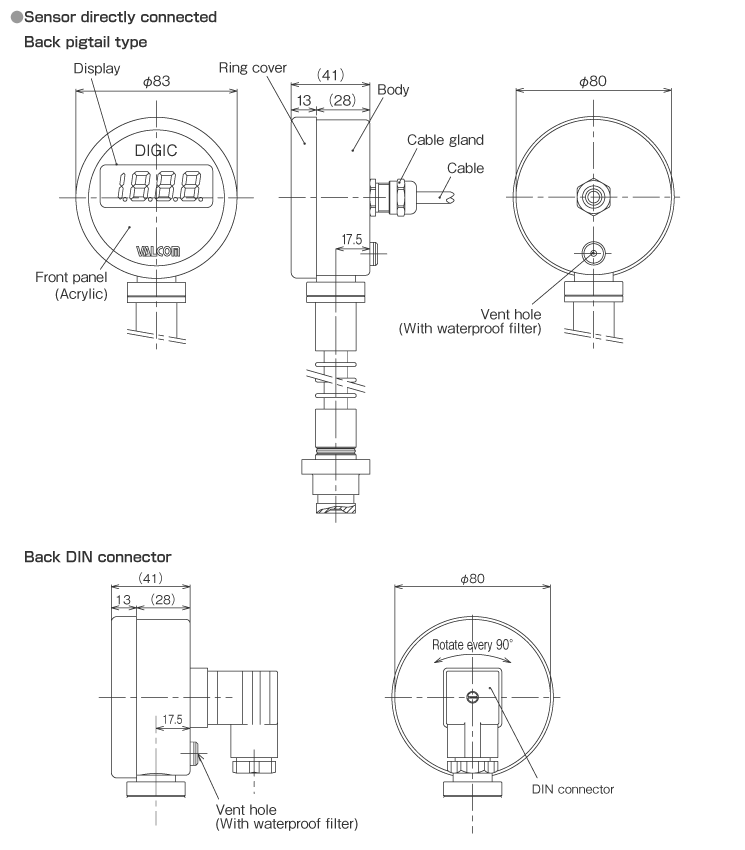

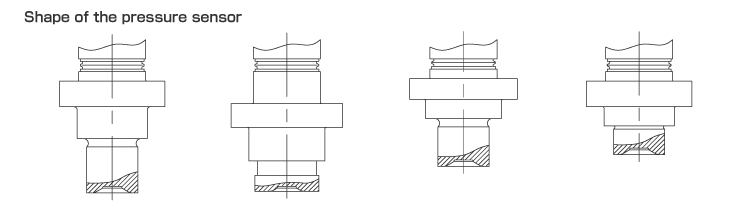

External dimensions Sensor directly connected External dimensions Shape of pressure sensor External dimensions Sensor separate External dimensions Shape of pressure sensor

Display angle

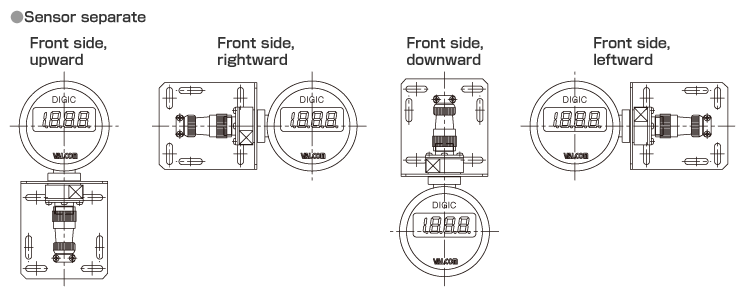

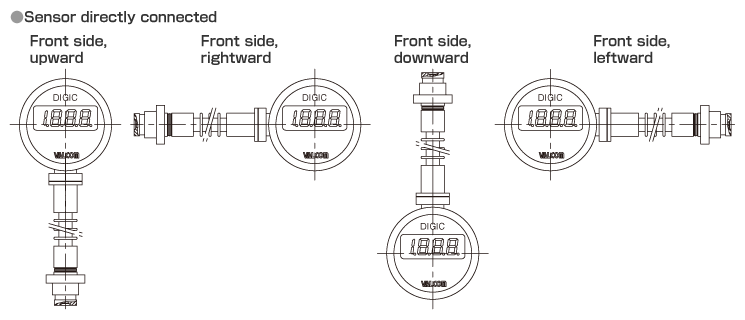

Display angle Sensor directly connected Display angle Sensor separate
