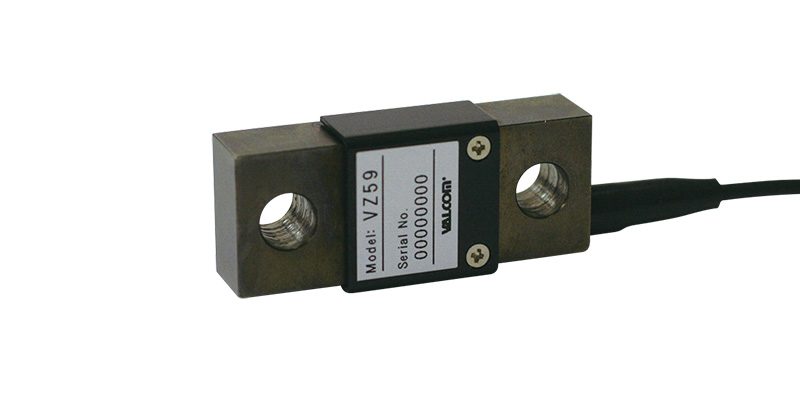

Attachment Load Cell

  • Easy installation with mounting by bolts screws.


Output voltage (Equivalent to output scale) 2–3mV/V
Nonlinearity ±1%R.C.
Hysteresis ±1%R.C.
Zero balance −0.050–0.050%R.C.
Temperature effect on zero balance ±0.5%R.C./10°C
Distortion of object to be measured (Load) 1000×10-6
Safe Deflection 1200×10-6
Output scale Four-fold – Six-fold
Temperature compensation range −10–70°C (No condensation or freezing)
Safe temperature range −20–80°C (No condensation or freezing)
Input terminal resistance 350Ω±10%
Output terminal resistance 350Ω±10%
Recommended excitation voltage 3V or less
Excitation voltage range 5V
Insulation resistance 500MΩ or more (DC50V)
IP Rating Coating for drip-proof construction (Note 1)
Cable φ3-4core shielded cable (Z-6FN-SW)3m
  • (Note 1) Sealing performance of the cable outlet may deteriorate due to the change of cable jacket over years.

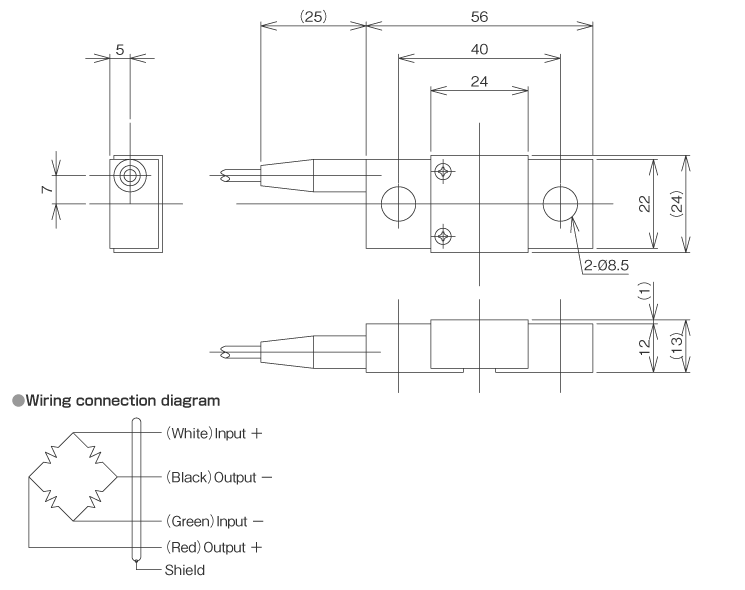

External dimensions (Unit: mm)

External dimensions
