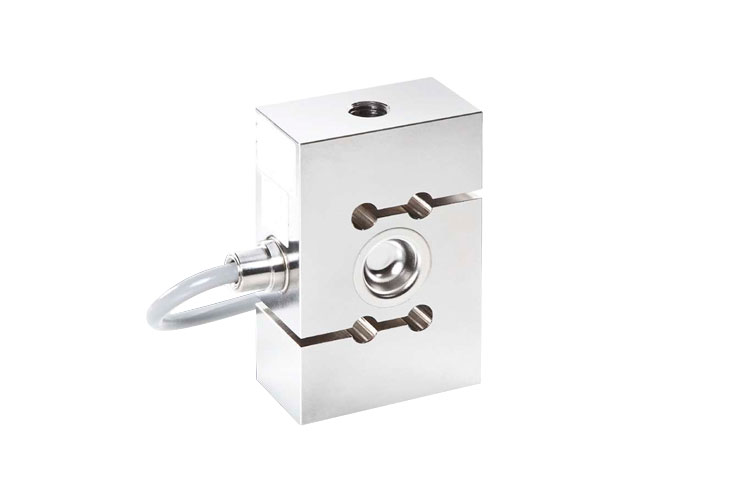

S type Load Cell
VRSCC3-5T
5t

  • Low cost type
  • Good environmental resistance

Specifications

Rated output 2mV/V±0.25% (Note 1)
Nonlinearity ±0.0166%R.C.
Hysteresis ±0.0166%R.C.
Zero balance 0±0.01mV/V
Temperature effect on zero balance ±0.0166%R.C./10°C
Temperature effect on load ±0.0170%R.C./10°C (20 to 40 °C)
±0.0110%R.C./10°C (−10 to 20 °C)
Allowable dynamic load 70%R.C. (Oscillation width as per DIN 50100)
Temperature compensation range −10 to 40°C (No condensation or freezing)
Safe temperature range −30 to 70°C (No condensation or freezing)
Input terminal resistance 389±15Ω
Output terminal resistance 350±1.5Ω
Recommended excitation voltage 5V
Excitation voltage range 0.5 to 12V
Insulation resistance 2GΩ or more / 100V
IP Rating Equivalent to IP68 (Note 2)
Cable φ5-6-core shielded cable 7.6m
  • Creep 30min: ±0.0245%R.C.
  • (Note 1) Tensile (+) output / Compression (−) output
  • (Note 2) Test conditions: 1m water column / 100 h (EN 60 529(IEC529))

Model selection

Selection Model Rated capacity Deflection at R.C. Weight
  VRSCC3-5T 49.03kN(5ton) 0.4mm±0.05mm 2.2kg
  • *Weight includes cable.

External dimensions (Unit: mm)

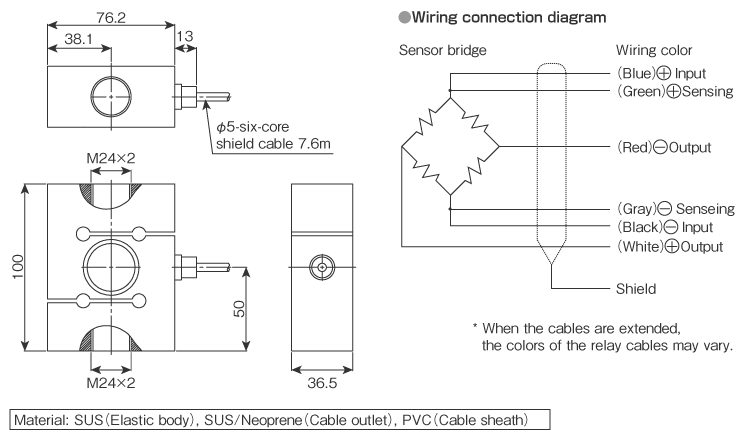

External dimensions
