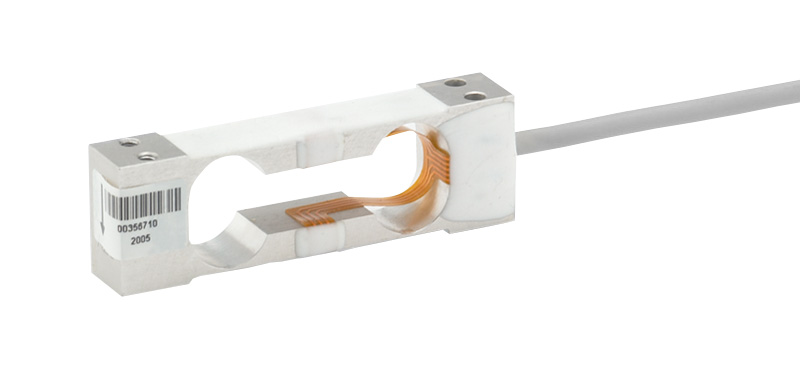

Single Point type Load Cell
VPW4MC3 series
0.3kg–5kg

  • Low capacity and high accuracy
  • Good environmental resistance
  • Low-profile

Specifications

Rated output 1.800–2.200mV/V (2–5kg)(*1)
Nonlinearity ±0.0150%R.C.
Hysteresis ±0.0150%R.C.
Zero balance ±0.1mV/V
Temperature effect on load 20–40°C:±0.0175%R.C./10°C
-10–20°C:±0.0117%R.C./10°C
Safe side load 300%R.C.
Temperature compensation range −10–40°C (No condensation or freezing)
Safe temperature range −10–50°C (No condensation or freezing)
Input terminal resistance 342.0–418.0Ω
Output terminal resistance 342.0–418.0Ω
Recommended excitation voltage 5V
Excitation voltage range 15V
Insulation resistance 2000MΩ (DC100V)
IP Rating Equivalent to IP65 (Note 1)
Cable 4-core Shielded cable 0.4m
  • (*1) 0.3, 0.5kg: 0.900–1.100mV/V
  • Creep 30min: ±0.0166%R.C.
  • (Note 1) Sealing performance of the cable outlet may deteriorate due to the change of cable jacket over years.

Model selection

Selection Model Rated capacity Temperature effect on zero balance Maximum Load Area Ultimate overload rating Deflection at R.C. Weight A
  VPW4MC3-0.3kg 0.3kg (2.942N) ±0.0466%R.C./10°C 200×200mm 150%R.C. Approx. 0.5mm Approx. 0.05kg 12±0.2mm
  VPW4MC3-0.5kg 0.5kg (4.903N) ±0.0560%R.C./10°C
  VPW4MC3-2kg 2kg (19.61N) ±0.0350%R.C./10°C 15mm
  VPW4MC3-3kg 3kg (29.42N) ±0.0233%R.C./10°C
  VPW4MC3-5kg 5kg (49.03N) ±0.0280%R.C./10°C
  • *Weight includes cable.

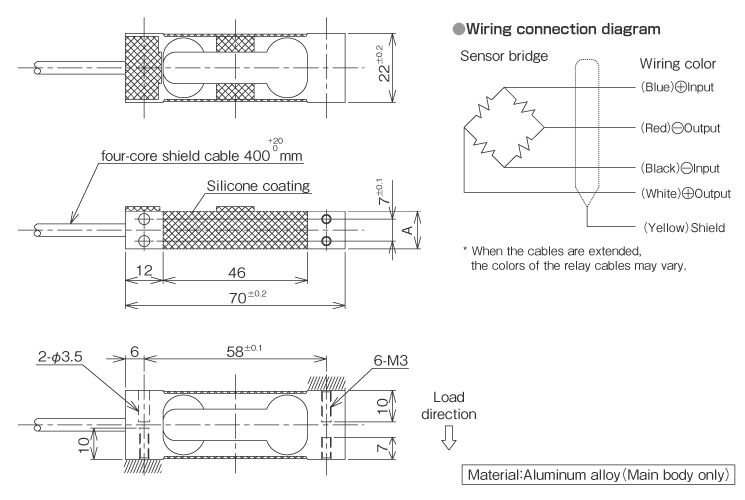

External dimensions (Unit: mm)

External dimensions
