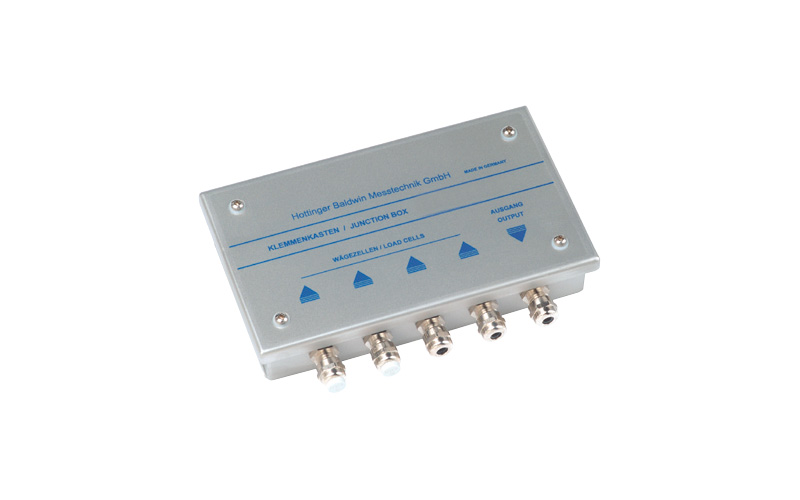

Shower-proof Junction Box

  • Outputs from four load cells can be summed.
  • IP rating equivalent to IP65

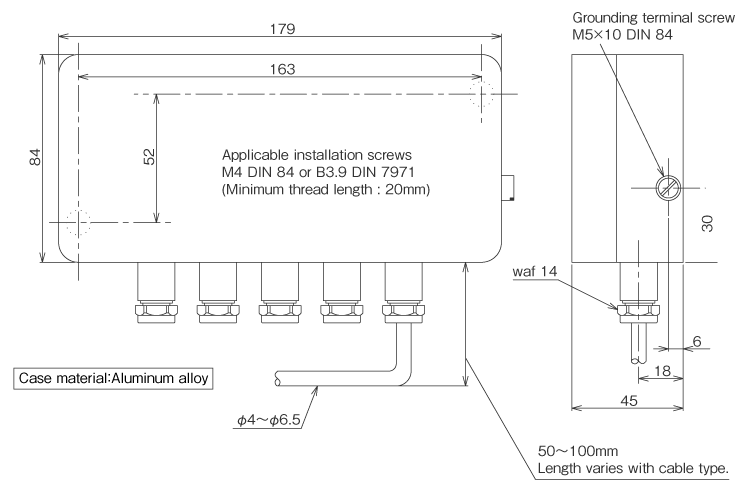

External dimensions (Unit: mm)

External dimensions

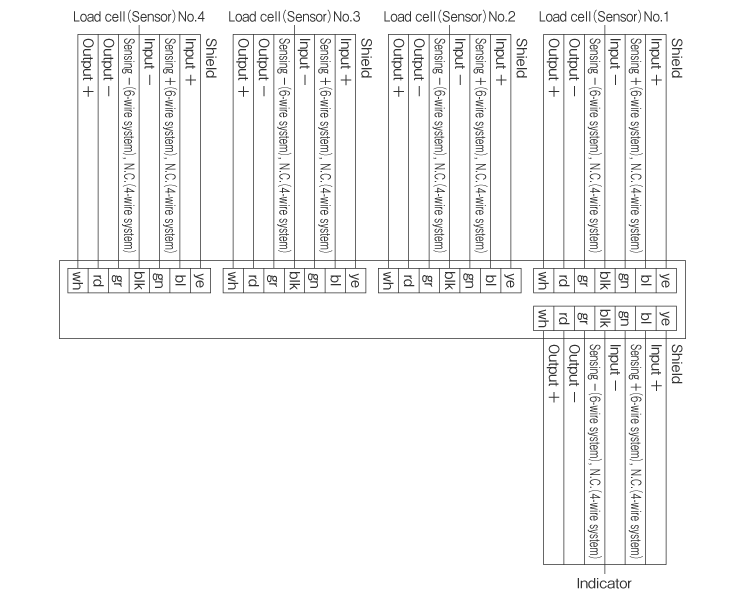

Wiring connection diagram

Wiring connection diagram
  • *End of wires should be non-stranded or connected by ferrule.
  • *Use 4-wire or 6-wire (with sensing +/-) cables.
  • *In case of 4-wire load cell & 6-wire display or 6-wire load cell & 4-wire display, short the terminals between
    Sensing (+) and IN (+) and between Sensing (–) and IN (-) on the display-side terminal box in the junction box.
