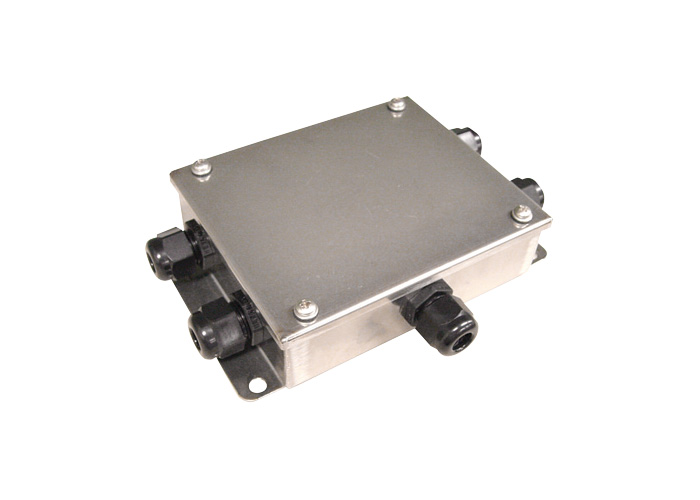

Stainless Steel Junction Box (Shower-proof)

  • Made of stainless steel
  • Outputs from four load cells can be summed.
  • IP rating equivalent to IP65

External dimensions (Unit: mm)

External dimensions

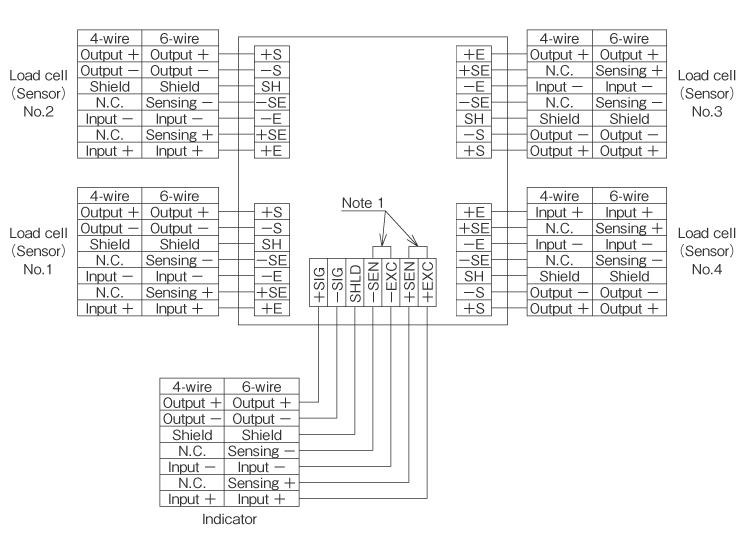

Wiring connection diagram

Wiring connection diagram


  1. In case of 4-wire load cell or indicator, short these terminals by jumper, etc.
  2. Adjust with the varistor if 4-corner adjustment is required due to imbalanced weight.
    *Shorted by jumper as factory setting in order to prevent 4-corner adjustment.
  3. Applicable cable diameter: 4.3–6.5
  4. End of wires should be non-stranded or connected by ferrule.
  5. Use 4-wire or 6-wire (with sensing +/-) cables.
