NEW
Pressure Sensor with Sub-miniature LED Digital Display
VSS-□35 series-101.3kPa–1MPa
- Analog output 1 to 5 V and two open collectors included as standard.
- RoHS-compliant and environmentally-friendly.
- Hysteresis and window comparator operations can be selected.
(See operation chart.) - Other functions (zero reset / security lock) included as standard.
- Option: Unit change function included (support only overseas specification)
* Please contact our sales office for further details.
| Measured medium | Air, nitrogen, argon or other noncorrosive gases. |
|---|---|
| Pressure type | Positive, compound, and negative pressures can be measured. |
| Pressure range | Can be selected from 4 ranges: 0.000 to 1.000MPa, ±100.0kPa, -101.3 to 0.0kPa |
Feature

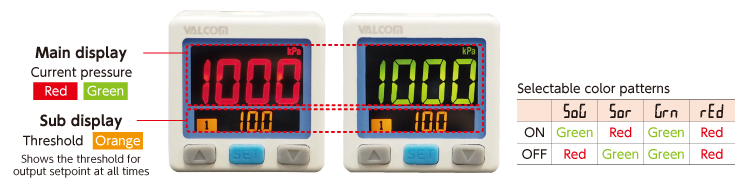

Easier to read thanks to 2 displays in 3 colors with selectable color patterns
Specifications
| Rated pressure range | Refer to the following table 1. | |
|---|---|---|
| Setting/Operating pressure range | Refer to the following table 1. | |
| Display resolution | Refer to the following table 1. | |
| Proof pressure | Refer to the following table 1. | |
| Power Voltage | (DC12V–24V)±10% or less, Ripple (Vp-p) 10% or less | |
| Consumption current | 40mA or less (No load) | |
| Switch output | NPN open collector output Load current: Max 125mA, Supply voltage: Max DC30V, Internal voltage drop: Max 1.5V |
|
| Analog output | DC1–5V±2.5%F.S. or less (Within rated pressure range) Output impedance: Approx.1kΩ Linearity: ±1%F.S. or less * Analog output of positive pressure (P) converts the pressure within the range of 0 to 1MPa into the voltage of 1 to 5V. * Analog output of negative pressure (V) converts the pressure within the range of 0 to -101.3kMPa into the voltage of 1 to 5V. |
|
| Display accuracy | ±2%F.S.±1digit or less (Ambient temperature: Within the range of 25±3°C) | |
| Temperature characteristics | ±2.5%F.S. or less (Reference temperature 25°C, Within the operating ambient temperature range) |
|
| Repeatability | ±0.2%F.S.±1digit or less | |
| Responsiveness | 2.5msec. or less (25, 100, 250, 500, 1000, 1500 msec. Selectable) | |
| Operating temperature range | 0–50°C (No condensation or freezing) | |
| Ambient humidity | 35–85%RH(No condensation or freezing) | |
| Storage temperature | −10–60°C (No condensation or freezing) | |
| Diplay | Digital display | Main display: 3½digit 7Segment Red/Green Setting value display: Orange Other information: Red/Green |
| Operation display | OUT1, OUT2: Orange LED (Lit when ON) | |
| Vibration resistance | Total amplitude 1.5mm or 10G, 10Hz ~ 55Hz ~ 10Hz scan for 1 minute 2 hours each in X, Y. and Z directions |
|
| Shock resistance | 100m/s² (10G) 3 times each in X, Y. and Z directions | |
| Applicable fluids | Air, inert gas | |
| Connection | R1/8(Male screw), M5(Famale screw) | |
| Material | Main body | PBT+GF30% |
| Port | Brass, nickel-plated | |
| Sensor type | Silicon diaphragm | |
| Cable | Oilproof cable (0.15mm²) 2m | |

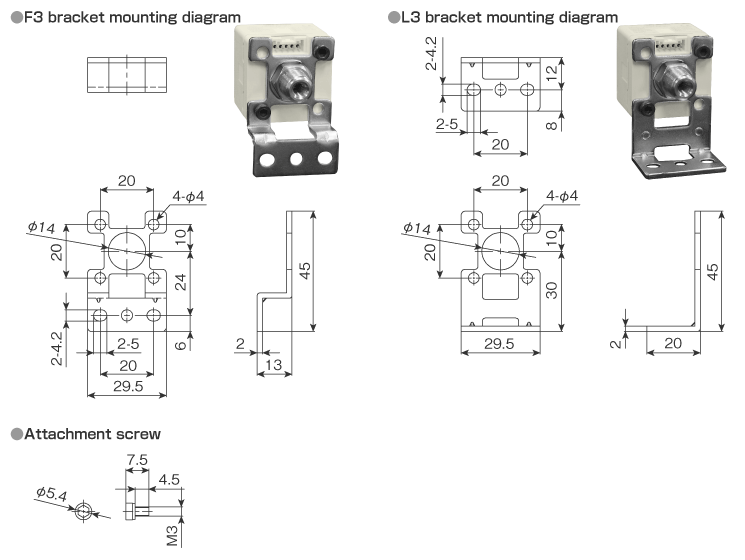

| Accessories | Operating manual 1 copy, L3 mounting bracket, F3 mounting bracket, 2 Mounting screws M3×L4.5 |
|
| Weight | Approx. 80g (Included 2m Cable) | |
| IP Rating | IP40 | |
| Europe RoHS | Directive compliant product | |
| CE Marking | EN61000-6-4: 2007+A1: 2011, EN55022: 2010+AC: 2011, ClassA, EN61000-6-2: 2005 |
|
| Option | Surface mounting panel (VSS-ACCH9) * Not included as standard. Contact our sales office if you need it. |
|
| Table 1 | |||
|---|---|---|---|
| Model Selection | Positive pressure | Compound pressure | Negative pressure |
| VSS-P35R-NCA | VSS-C35R-NCA | VSS-V35R-NCA | |
| Rated pressure range | 0.000–1.000MPa | −100.0–100.0kPa | −101.3–0.0kPa |
| Setting pressure range/ Specifications pressure range |
−0.100–1.000MPa | −101.0–101.0kPa | −101.3–10.0kPa |
| Display resolution | 0.001MPa | 0.1kPa | |
| Proof pressure | 1.5MPa | 300kPa | |

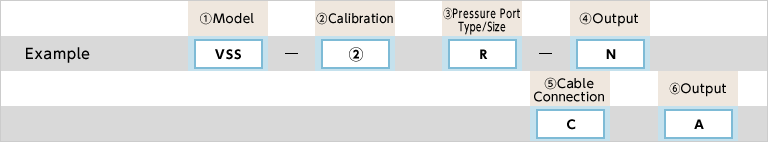

Model Selection
| Selection | Check | Model | Specifications | ||
|---|---|---|---|---|---|
| 1.Model | ○ | VSS | Pressure Sensor with Sub-miniature LED Digital Display | ||
| 2.Calibration | P35 | Positive pressure: -0.100–1.000MPa | |||
| C35 | Compound pressure: -101.0–101.0kPa | ||||
| V35 | Negative pressure: -101.3–10.0kPa | ||||
| 3.Pressure Port Type/Size | ○ | R | R1/8, M5(Female thread) | ||
| 4.Output | ○ | N | NPN Open collector | ||
| 5.Cable Connection | ○ | C | 2m Connector cable | ||
| 6.Analog output | ○ | A | DC1–5V (±0.1V) |
P35 | Pressure range: 1–5 V for the pressure range of 0–1 MPa |
| C35 | Pressure range: 1–5 V for the pressure range of -100–100 kPa | ||||
| V35 | Pressure range: 1–5 V for the pressure range of 0.0–-101.3 kPa | ||||

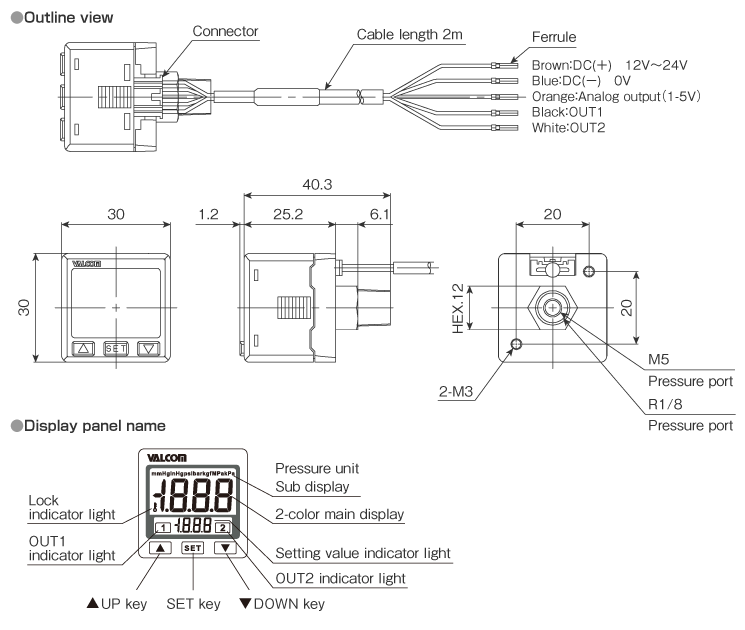

External dimensions (Unit: mm)

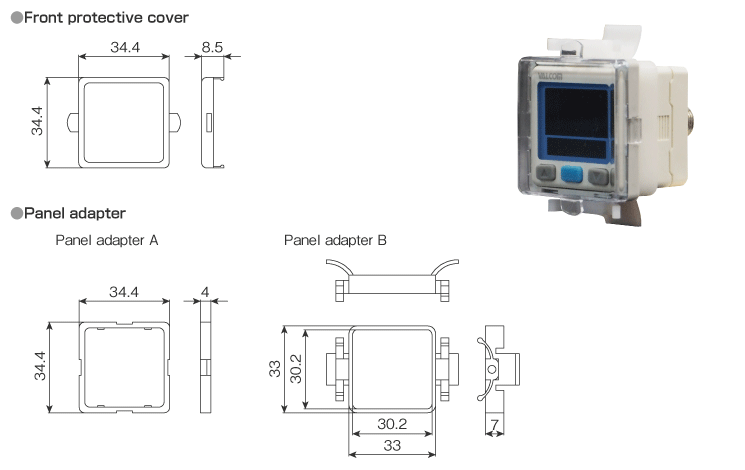

Option Surface mounting panel VSS-ACCH9(Unit: mm)
Internal circuit diagram and Connection Example

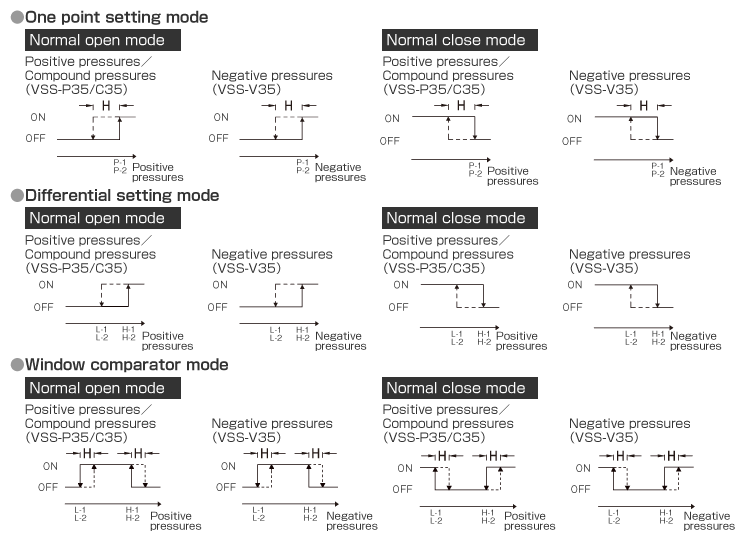

Operation Charts
* When hysteresis is set at 2 digits or less, if input pressure comes very close to the set point, the sensor output may cause malfunction.
* In the window comparator mode, if the difference between two set points is less than the fixed hysteresis, the switch output may be disabled.
