Discontinued (Please contact our sales representative.)
φ104 Intelligent type Round Digital Pressure Meter
VSC series0.5MPa–100MPa

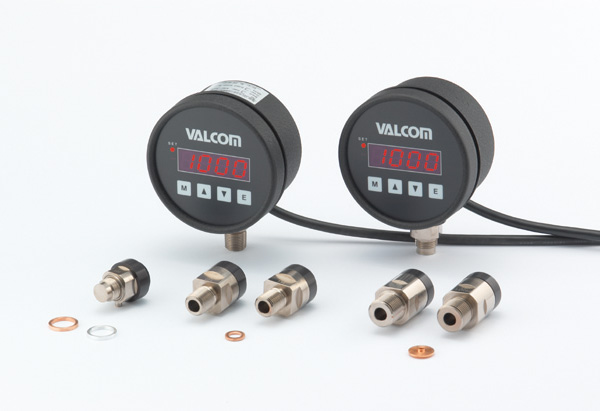

* Actual products may differ from photo depending on specifications.
- High-capacity mechanical contact relay adopted first in the industry.
- Low-profile design with limited body depth.
- Multifunctional type with a built-in microcomputer.
- Free power supply: 90 to 240 V AC
- Auto DZ function
| Measured medium | Air, gases, water, oil or other media that will not corrode 15-5PH (precipitation-hardened stainless steel). |
|---|---|
| Pressure type | Positive pressures can be measured. |
| Pressure range | Pressure sensor series for medium-to-high pressure up to 100 MPa are available. (See photos on the left for pressure sensors.) |
Specifications
| Display | 1000 Red LED (Character height:14.2mm) | |
|---|---|---|
| Measuring Range | Depends on the rated capacity of the selected sensor. | |
| Display Range | Depends on the range of the selected display (calibrate). (Within 900 for VPRF [1 MPa] only) |
|
| Indication Accuracy | ±0.1%F.S.±1digit (at 23±5°C) *Total accuracy depends on the specifications of sensor. |
|
| Sampling speed | 1–500 times/sec. (Modifiable) | |
| Setting Operation | Number of Output Channels | 1 (Values can be set as desired.) |
| Comparison Condition | Select from comparison logic [Hi/Low/H.INV/L.INV]. (Modifiable) | |
| Comparison Setting Range | −1999–1999 | |
| Differential Setting Range | 0–999 | |
| Comparison Cycle | Depends on the sampling rate. | |
| Contact Output | Mechanical relay output AC250V/8A(Resistive load) | |
| Use Temperature Range | 0–50°C (No freezing) | |
| Use Humidity Range | 35–85%RH (No condensation) | |
| Power [Power Consumption] | AC90–240V (Free) [6VA or less] | |
| Functions | Zero shift function, Tracking zero function, Auto DZ function, Overrange warning(Blinks at the limit values of measurement.) etc. |
|
| Material | Body ring cover: Aluminum die-casting Front panel: Aluminium material (Top sheet: Polyester film) |
|
| Input & Output Cable | VCTF-4×0.75mm², 1m pigtail(Non-stranded wire) | |
| Weight | Approx. 500g (Cable not included) | |
| Accessories | Operating manual 1 copy (Specify English or Japanese.) Test report 1 copy(*1) |
|

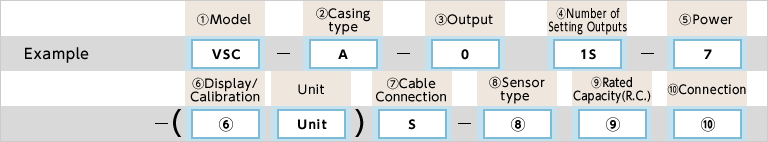

Model Selection
| Selection | Check | Model | Specifications | |
|---|---|---|---|---|
| 1.Model | ○ | VSC | φ104 High-capacity mechanical contact relay Round Digital Pressure Meter | |
| 2.Casing type | ○ | A | Sensor directly connected on bottom | |
| 3.Analog output | ○ | 0 | None | |
| 4.Number of Setting Outputs | ○ | 1S | 1-point mechanical relay a contact output (AC250V/8A Resistive load) | |
| 5.Power | 7 | AC90–240V (Free) | ||
| 6.Display/Calibration | Specify the range within the rated capacity of the applicable pressure sensor.(Within 50% of the rated capacity) *Refer to Selection Table for Pressure Sensors for the rated capacity. |
|||
| 7.Cable Connection | ○ | S | Pigtail 1m | |
| 8.Sensor type | T | VPRT or VPRTF | Refer to "Selection Table" for details. | |
| Q | VPRQ or VPRQF | |||
| F | VPRF | |||
| 9.Rated Capacity(R.C.) | 001MPG | 1MPa | ||
| 002MPG | 2MPa | |||
| 005MPG | 5MPa | |||
| 010MPG | 10MPa | |||
| 020MPG | 20MPa | |||
| 035MPG | 35MPa *Sensor Q type only | |||
| 050MPG | 50MPa | |||
| 100MPG | 100MPa *Sensor T/Q type only | |||
| 10.Connection *Available thread size varies with the sensor. |
R3 | R3/8(Target model: VPRT/VPRQ) | ||
| G3 | G3/8(Target model: VPRTF/VPRQF/VPRF) | |||
| R4 | R1/2(Target model: VPRT-100MP) | |||
| G4 | G1/2(Target model: VPRTF-100MP/VPRQF-100MP) | |||

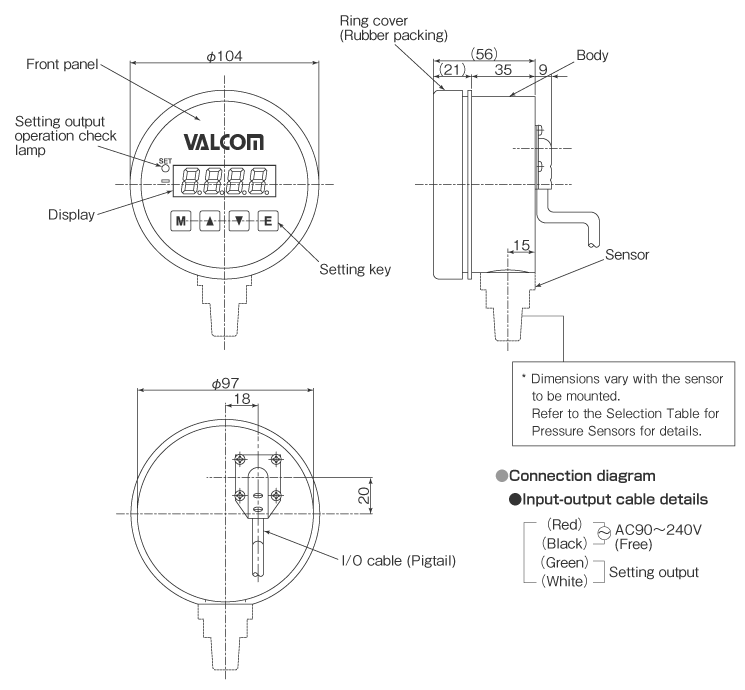

External dimensions (Unit: mm)
| Selection table for pressure sensor | ||||||
|---|---|---|---|---|---|---|
| Pressure sensor | VPRF | VPRT | VPRTF | VPRT | VPRTF | |
| Connection screw | G3/8 | R3/8 | G3/8 | R1/2 | G1/2 | |
| Rated capacity | 1–50MPa | 1–50MPa | 100MPa | |||
| Drawing |  |
 |
 |
|||
| Pressure sensor | VPRQ | VPRQF | VPRQF | |||
| Connection screw | R3/8 | G3/8 | G1/2 | |||
| Rated capacity | 1–50MPa | 100MPa | ||||
| Drawing |
●1–35MPa
|
●50MPa
|
●100MPa
|
|||
