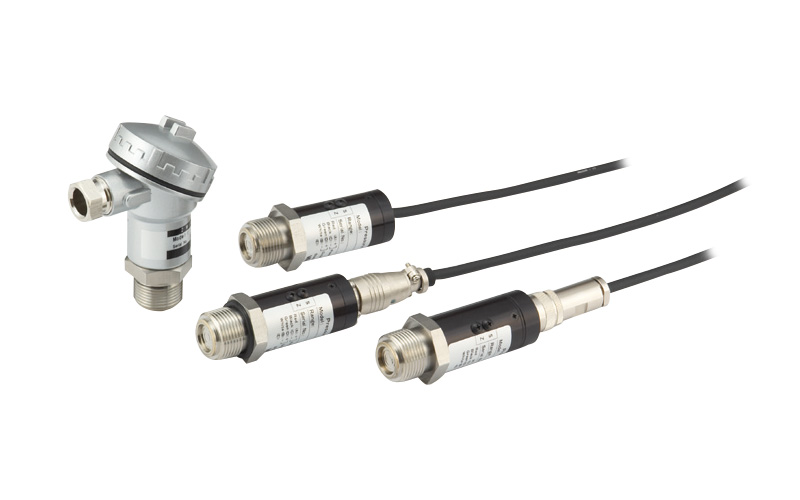

Pressure Transmitter for Flush type Low Pressure (Wetted Part: SUS316L)
VNF series
100kPa–1700kPa
100kPa abs–1700kPa abs

  • Suitable for measurement of viscous media since the flush type (no feed port) wetted part is hardly clogged up.
  • Pressure port has SUS316L stainless steel wetted surfaces, enabling measurement of wide range of media.
  • Diaphragm structure enables high accuracy measurement even in lower pressure range. (Non Linearity: ±0.25%R.C.)
  • Gauge pressure reference and absolute pressure reference available.
Measured medium Water, oil, gases or other media that will not corrode SUS316L.
Pressure Type Positive, compound, negative and absolute pressures can be measured.
Measured Range Can be specified within the range of 100 kPa to 1700 kPa of rated capacity (Calibration range: 50 kPa to 1700 kPa).
Specify more than 50% of rated capacity as the calibration range.
Output type Specify among 4 to 20 mA (2 wire system, 4 wire system), 1 to 5 V, 0 to 5 V, and 0 to 10 V.

Specifications

Non Linearity ±0.25%R.C.
Hysteresis ±0.25%R.C.
Compensated Temperature Range
(Temperature of medium to be measured)
0–70°C (No condensation or freezing)
Safe Temperature Range
(Temperature of medium to be measured)
−20–80°C (No condensation or freezing)
Temperature Effect on Zero Balance ±1%R.C./0–70°C (For 25°C)
Temperature Effect on Load ±1%R.C./0–70°C (For 25°C)
Safe Overload Rating 200%R.C.
Ultimate Overload Rating 300%R.C.
Insulation Resistance 100MΩ or more (DC50V)
Pressure Port Material SUS316L
Connection Screw G3/4
Fastening Torque 20N·m
Fastening Torque;Maximum 30N·m
Power Selectable: 4DC24V (±10%), 5DC12V (±10%)
*Only 24V DC available when analog output is A5
Cable 4- or 2-core shielded (oilproof) cable 2m(Standard) φ6mm
Cable in tube is used for the waterproof connector and pigtail types of output
range 500 kPa or below.(Gauge pressure only)
Weight Approx. 200g (Cable not included)
Accessories Operating manual 1 copy (Specify English or Japanese.)
Test report 1 copy, P-24 4D (×1)

Model Selection

Example

Selection Check Model Specifications
1.Model VNF Pressure Transmitter for Flash type Low Pressure
(Wetted part:SUS316L) *Connection screw: G3/4
2.Analog output

*Only
A6 available for waterproof terminal box type
- - Output type Response frequency Safe load resistance Consumption current
  A2 1–5V 200Hz 5kΩ or more Approx. 23mA
  A3 4–20mA
(4-wire)
DC24V: 500Ω or less/
DC12V: 250Ω or less
Approx. 40mA
  A4 0–5V 5kΩ or more Approx. 23mA
  A5 0–10V 5kΩ or more Approx. 23mA
  A6 4–20mA
(2-wire)
DC24V: 500Ω or less/
DC12V: 150Ω or less
-
3.Calibration - - Rated capacity Example of calibration range
  See right table. Enter the range in the
  as it is.
100kPa 100kPa
(0–100) kPa
±50kPa
(-50–50) kPa
100kPa(abs)
(0–100) kPa abs
200kPa 200kPa
(0–200) kPa
±100kPa
(-100–100) kPa
200kPa (abs)
(0–200) kPa abs
700kPa 700kPa
(0–700) kPa
-100–350kPa
(-100–350) kPa
700kPa (abs)
(0–700) kPa abs
1700kPa 1700kPa
(0–1700) kPa
-100–1000kPa
(-100–1000) kPa
1700kPa (abs)
(0–1700) kPa abs
4.Cable Connection   Blank Standard connector Equivalent to IP40
  W Waterproof connector Equivalent to IP56
  S Pigtail Equivalent to IP54
  T Waterproof terminal box type Equivalent to IP55 *Applicable only when analog output is A6. Cable not included
5.Power   4 DC24V (±10%)
  5 DC12V (±10%) *Not available when analog output is A5
6.Length(Cable)   2m 2m Standard
  3m 3m
  5m 5m
  10m 10m
  □□m Other length
*Contact our sales office for other cable lengths.

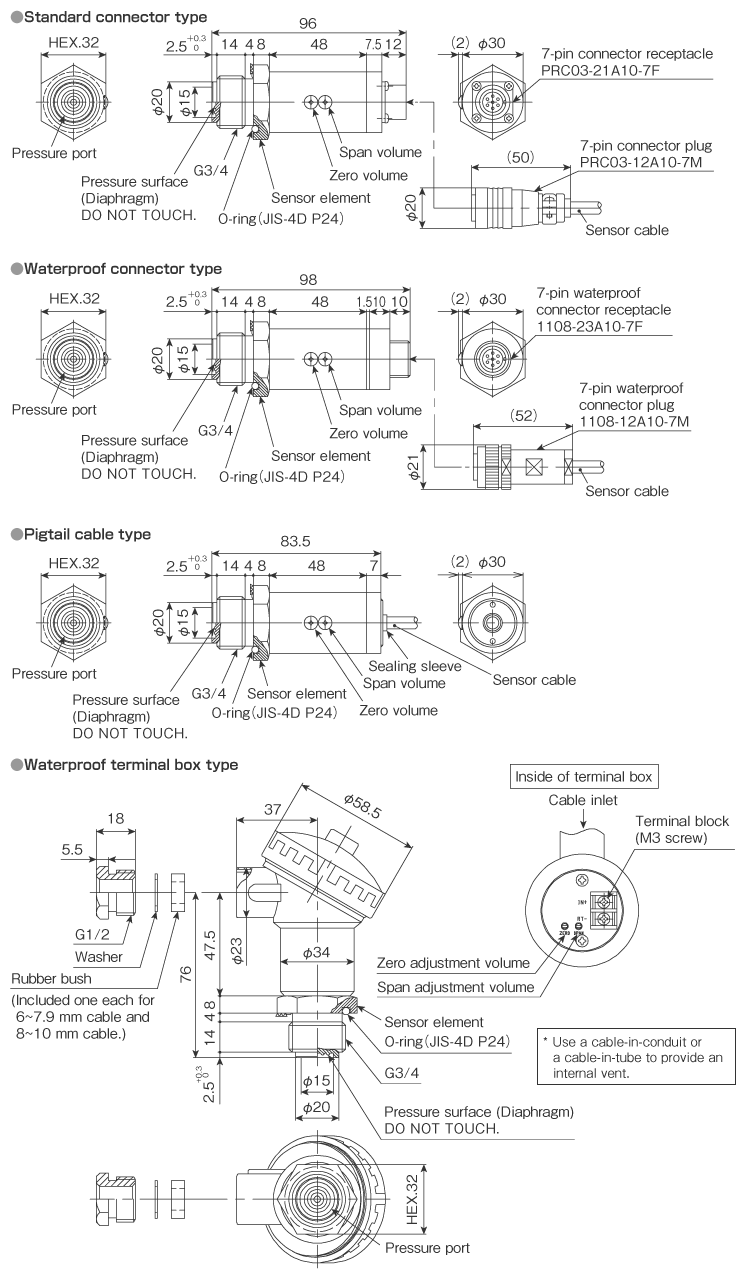

External dimensions (Unit: mm)

*Refer to line connection here

External dimensions
