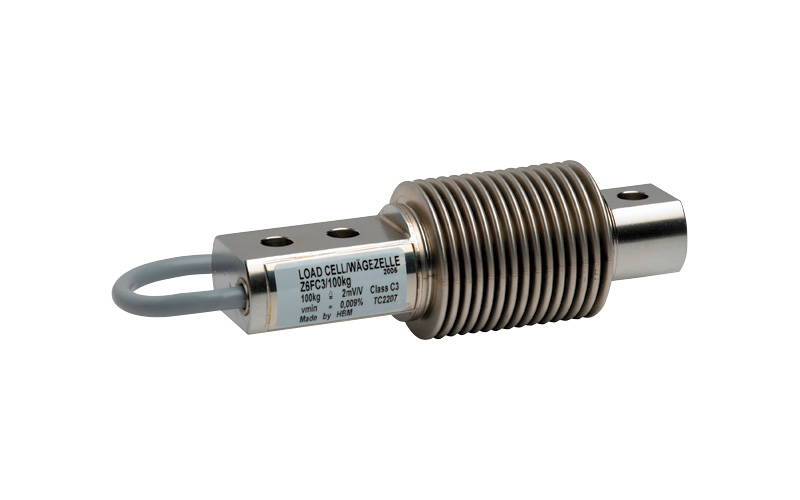

Beam Load Cell
VZ6FC3 series
10kg–1ton

  • Particularly good environmental resistance

Specifications

Rated output 1.999–2.001mV/V
Nonlinearity ±0.0180%R.C.
Hysteresis ±0.0170%R.C.
Zero balance ±0.020mV/V
Temperature effect on zero balance ±0.0125%R.C./10°C
Temperature effect on load ±0.0080%R.C./10°C
Safe overload rating 150%R.C.
Temperature compensation range −10–40°C (No condensation or freezing)
Safe temperature range −30–70°C (No condensation or freezing)
Input terminal resistance 350.0–480.0Ω
Output terminal resistance 355.8–356.2Ω
Recommended excitation voltage 5V
Excitation voltage range 0.5–12V
Insulation resistance 5GΩ
IP Equivalent to IP68 (Note 1)
Cable φ5.4mm 6-core Shielded cable 3m
  • Creep 30min: ±0.083%R.C.
  • (Note 1) Sealing performance of the cable outlet may deteriorate due to the change of cable jacket over years.

Model selection

Selection Model Rated capacity Deflection at R.C. Weight
  VZ6FC3-10kg 10kg (98.07N) 0.3mm Approx. 0.5kg
  VZ6FC3-20kg 20kg (196.1N) 0.29mm
  VZ6FC3-50kg 50kg (490.3N) 0.27mm
  VZ6FC3-100kg 100kg (980.7N) 0.31mm
  VZ6FC3-200kg 200kg (1.961kN)) 0.39mm
  VZ6FC3-500kg 500kg (4.903kN) 0.6mm
  VZ6FC3-1t 1ton (9.807kN) 0.55mm Approx. 2.3kg
  • *Weight includes cable.

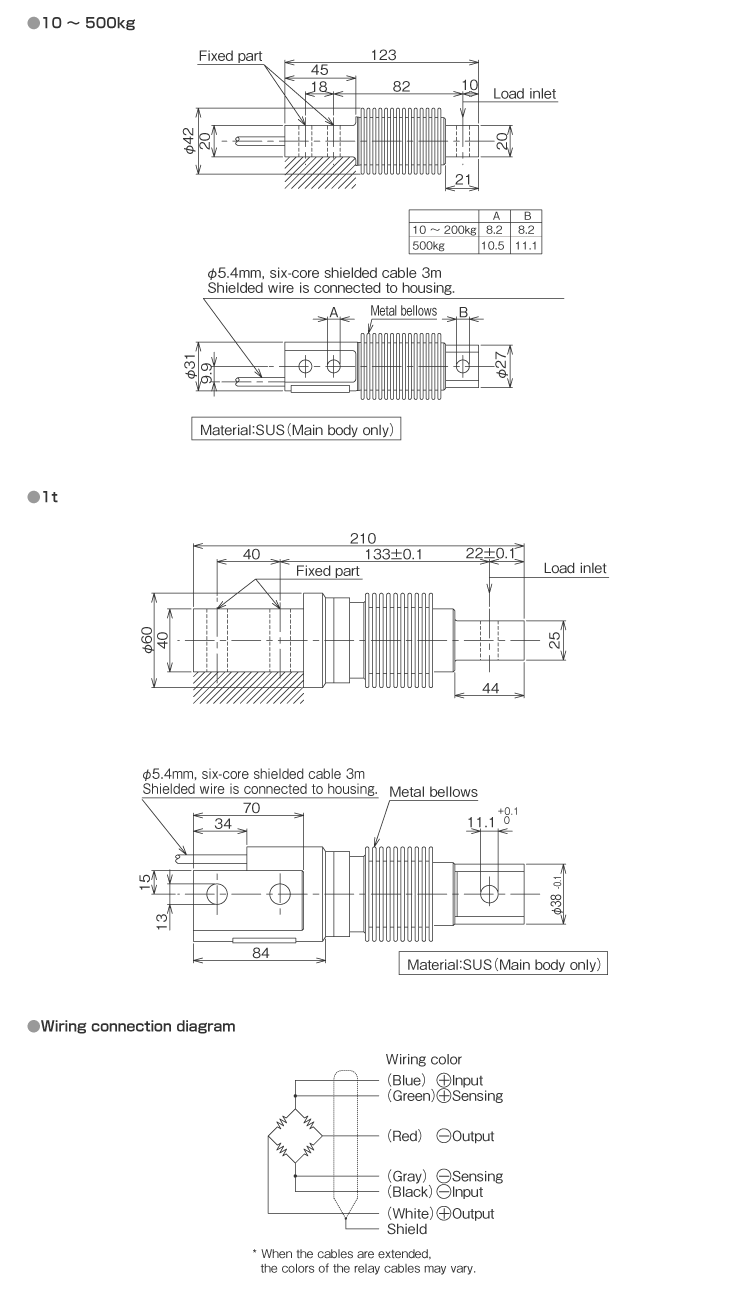

External dimensions (Unit: mm)

External dimensions
