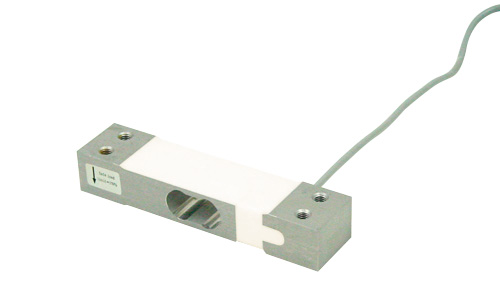

Single Point type Load Cell
VPW6DC3 series

  • High accuracy
  • Miniature design
  • Good environmental resistance
  • Wide weighing range


Rated output 2.0±0.2mV/V
Nonlinearity ±0.0166%R.C.
Hysteresis ±0.0166%R.C.
Zero balance ±0.1mV/V
Temperature effect on zero balance 20–40°C:±0.0175%R.C./10°C
Safe overload rating 150%R.C.
Safe Side Load Level 300%R.C.
Temperature compensation range −10–40°C (No condensation or freezing)
Safe temperature range −10–50°C (No condensation or freezing)
Input terminal resistance 380±38Ω
Output terminal resistance 380±38Ω
Recommended excitation voltage 5V
Excitation voltage range 12V
Insulation resistance 2000MΩ
IP Rating Equivalent to IP65 (Note 1)
Cable 4-core Shielded cable 0.35m
  • Creep 30min: ±0.0245R.C. Eccentric error: ±0.0233%R.C.
  • (Note 1) Sealing performance of the cable outlet may deteriorate due to the change of cable jacket over years.

Model selection

Selection Model Rated capacity Temperature effect on zero balance Maximum Load Area Deflection at R.C. Weight
  VPW6DC3-3kg 3kg (29.42N) ±0.0233%R.C./10°C 300×300mm Approx. 0.4mm Approx. 160g
  VPW6DC3-5kg 5kg (49.03N) ±0.0280%R.C./10°C
  VPW6DC3-10kg 10kg (98.07N) ±0.0280%R.C./10°C
  VPW6DC3-15kg 15kg (147.1N) ±0.0186%R.C./10°C
  VPW6DC3-20kg 20kg (196.1N) ±0.0350%R.C./10°C
  VPW6DC3-30kg 30kg (294.2N) ±0.0233%R.C./10°C
  VPW6DC3-40kg 40kg (392.3N) ±0.0350%R.C./10°C
  • *Weight includes cable.

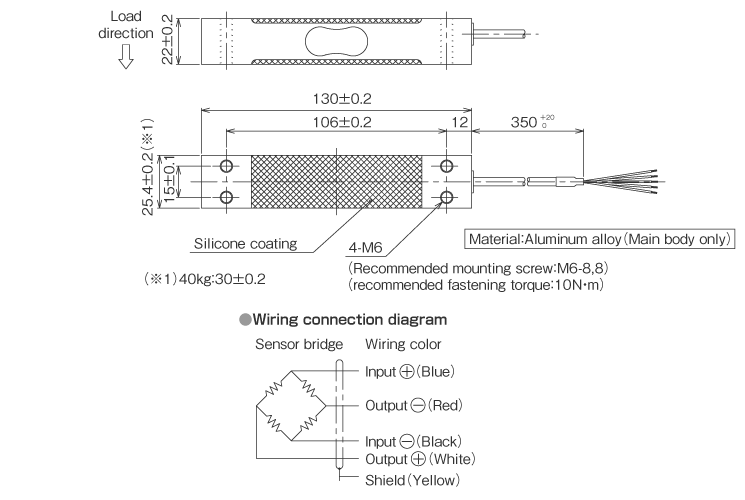

External dimensions (Unit: mm)

External dimensions
