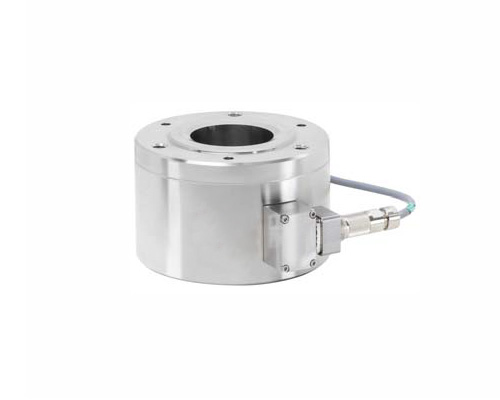

Washer / Flat type Load Cell
VC6B series
200kN–2MN
- Robust type with abundant variations
- Good environmental resistance
- Compact and lightweight
Specifications
| Rated output | 2–2.48mV/V (With a pressure-proof hard plate) |
|---|---|
| Nonlinearity | ±1%R.C. (With a spherical support) (*1) |
| Hysteresis | With a pressure-proof hard plate: ±0.5%R.C. With a load button or a bendall bearing: ±0.3%R.C. 200kN only: ±0.5%R.C. When spherical bearing plate is used: ±0.5%R.C. |
| Zero balance | ±0.0248mV/V |
| Temperature effect on zero balance | ±0.05%R.C./10°C |
| Temperature effect on load | ±0.1%R.C./10°C |
| Safe overload rating | 150%R.C. |
| Static Lateral Limit Force | With a pressure-proof hard plate: Cannot be specified. With a load button or a bendall bearing: 20% With a spherical support: 3% |
| Permissible Vibration Amplitude to DIN 50100 | 70% |
| Temperature compensation range | −10–70°C (No condensation or freezing) |
| Safe temperature range | −30–85°C (No condensation or freezing) |
| Safe Temperature Range | −50–85°C (No condensation or freezing) |
| Input terminal resistance | 380–420Ω |
| Output terminal resistance | 280–360Ω |
| Recommended excitation voltage | 5V or less |
| Excitation voltage range | 0.5–20V |
| Insulation resistance | 5GΩ or more |
| IP Rating | Equivalent to IP68 (Note 1) |
| Cable | φ5.4mm with Shielded 6m, directly-connected |
- (*1) With a load button or a bendall bearing:±0.4%R.C./With a pressure-proof plate:±1%R.C.
- Creep 30min (Within temperature compensation range): ±0.06%R.C..
- (Note 1) Sealing performance of the cable outlet may deteriorate due to the change of cable jacket over years.
Model selection
| Selection | Model | Rated capacity | Deflection at R.C. | Notural freguency | A | B | C+0.1 | D | D1 | E+0.1 | F |
|---|---|---|---|---|---|---|---|---|---|---|---|
| VC6B-200KN | 200kN | Approx. 0.13mm | 11.6kHz | 80 | 60 | 40.4 | 1 | 1 | 32 | 16.25 | |
| VC6B-500KN | 500kN | Approx. 0.15mm | 14.4kHz | 52 | |||||||
| VC6B-1MN | 1MN | Approx. 0.20mm | 6.1kHz | 159 | 100 | 88 | 2 | 3 | 68 | 35.5 | |
| VC6B-2MN | 2MN | Approx. 0.20mm | 6.9kHz | 106 |
| Model | G | H | J | K | L | MH11 | N | O | P | Q+0.1 | R | S+0.1 | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| VC6B-200KN | 42 | 0.75 | M8 Depth 8 |
26 | 12 | 6 | 100 | - | 35 | 48 | M6 Depth 8 |
64 | Approx. 1.6kg |
| VC6B-500KN | - | - | 42 | Approx. 1.8kg | |||||||||
| VC6B-1MN | 44 | 17.5 | M12 Depth 15 |
31 | 8 | 184 | - | 75 | 98 | M8 Depth 15 |
130 | Approx. 10.1kg | |
| VC6B-2MN | 100 | 80 | 90 | Approx. 10.7kg |
- *Weight not includes cable.

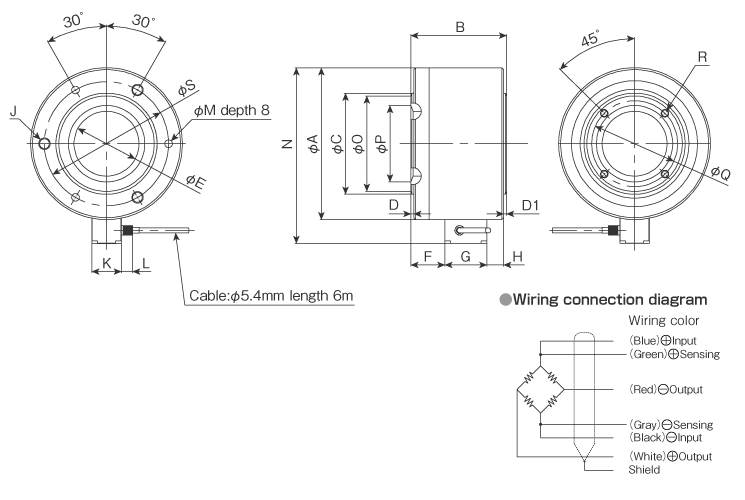

External dimensions (Unit: mm)
Load Cell
