Specialized manufacturer of Digital Pressure Meters and Load Cells



Bourdon-replaceable Round Digital(Pressure/Load) Meter with Analog Output
VPMC series Sensor separate type Analog output

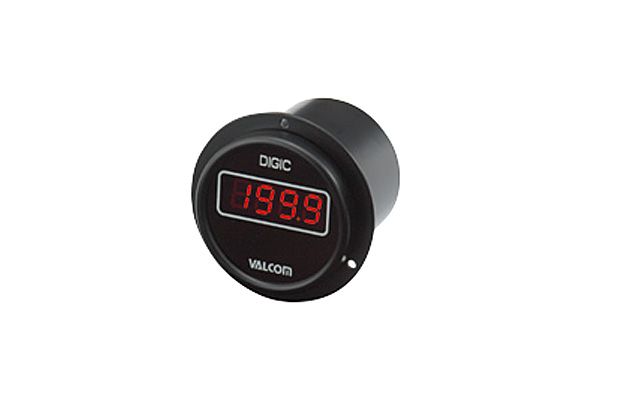

* Actual products may differ from photo depending on specifications.

Use in combination with pressure sensors or load cells.

  • Abundant analog output available.(4 to 20 mA, 1 to 5 V, 0 to 5 V, 0 to 10 V, etc.)
  • Easy-to-view large display of 3 ½-digit, approx. 15 mm in character height.
  • VPMC and sensor are calibrated as a pair, including the sensor cable length, and constitute a high-accuracy digital pressure meter.
Can be combined with sensors Can be combined with all models of pressure sensors and load cells.
Sensor specifications Refer to the pages of pressure sensors and load cells.
Calibration of amplifier and sensor VPMC amplifiers and pressure sensors or load cells have been calibrated as a pair.
Amplifiers and sensors have been calibrated as a pair under the same serial number.


Display 1999 3 1/2digits High brightness red LED (character height of approx. 15mm)
Display conversion speed 3 times/sec (Standard) Specify 1–15 times/sec.
Accuracy ±0.05%F.S.±1digit
Operating temperature range 0–55°C (No freezing)
Operating humidity range 0–90%RH (No condensation)
Dimensions φ98×74 (D:Protrusions not included)
Weight Approx. 600g (Varies with specification)
Accessories Operating manual 1 copy (Specify English or Japanese.)
Test report 1 copy (*1)

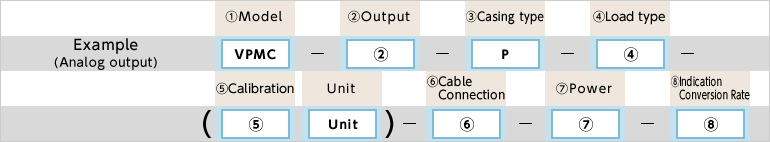

Model Selection


Pressure Sensor or Load Cell Selection

Click here for the specifications of pressure sensors, and click here for the loads cells
Specify the applicable models.
[e.g.] VPMC-A3-P-PS-10.00N-1/VLS-1K (3m cable included)

Selection Cheak Model Specifications
1.Model VPMC Bourdon-replaceable round digital pressure display amplifier with analog output
2.Analog output - - Output type Response frequency Load resistance
  D Display only
(no output)
- -
  A1 1mV/digit
(±1999mV max.)
7Hz This calue has been calculated as the response frequency(=1/2T (Hz)) based on the measured step response (0–100%) and rise time (T) with the sensor bridge resistance of 350Ω. The response frequency is detemined by the sensor to be used. Consult with us when focusing on the response. 10kΩ or more
  A2 1–5V
  A3 4–20mA 250Ω or less
  A4 0–5V 10kΩ or more
  A5 0–10V
*Only 4(DC24V) can be selected for power supply
3.Casing type P Separate
4.Load type   Blank When combined with a pressure sensor, you do not need to specify a model for the load type
  PS Specify only when combined with a load cell Compression
  PL Tersile
  PSL Tersile and compression
*When specifying tensile and compression, enter + or - in the display range.
5.Calibration     Pressure 1.000MPa (0–1.000)MPa
500kPa (0–500)kPa
±100.0kPa (-100.0–100.0)kPa
Load type 20.0kN (0–20.0)kN
100.0kN (0–100.0)kN
±1.00kN (-1.00–1.00)kN
6.Cable connection   Blank Enter the shape of the connector on the pressure sensor side to be combined (Blank for the load cell) Standard connector
  W Waterproof connector
  S With directly connected cable
7.Power [Power consumption]   1 AC100V[2VA]
  11 AC110V[2VA]
  2 AC200V[2VA]
  22 AC220V[2VA]
  4 DC24V[100mA]
  5 DC12V[100mA]
8.Indication conversion rate
    Standard 3 times/sec option (  times/sec)
*Specify 1–15 times/sec

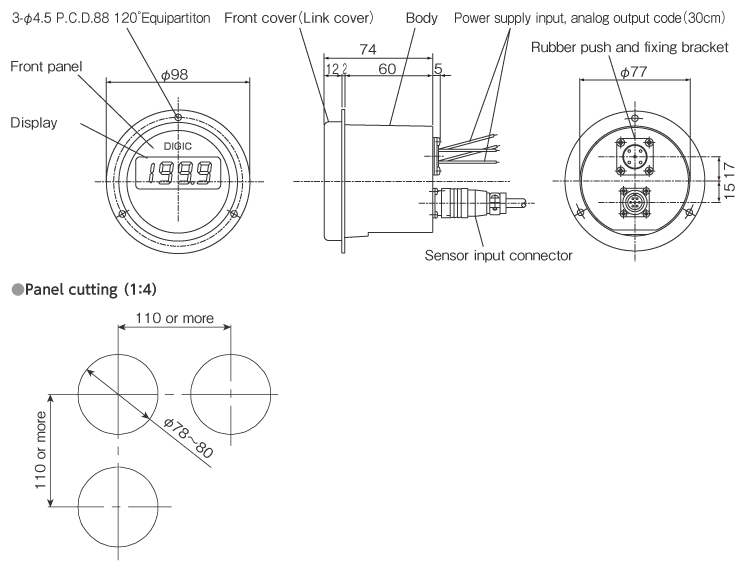

Dimensions (Analog output Separate type) (Unit: mm)

External dimensions

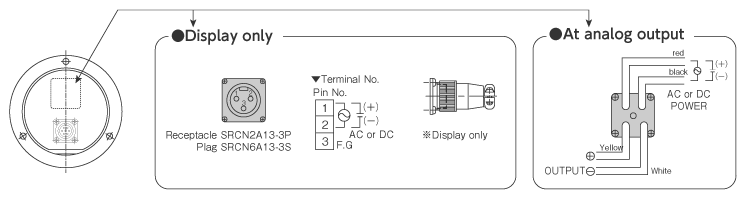

Power, Output Specifications (Analog output)

Power, Output Specifications (Analog output)
