VGMH series

Checking pressure sensor and load cell* values on the spot

* Strain gauge transducer

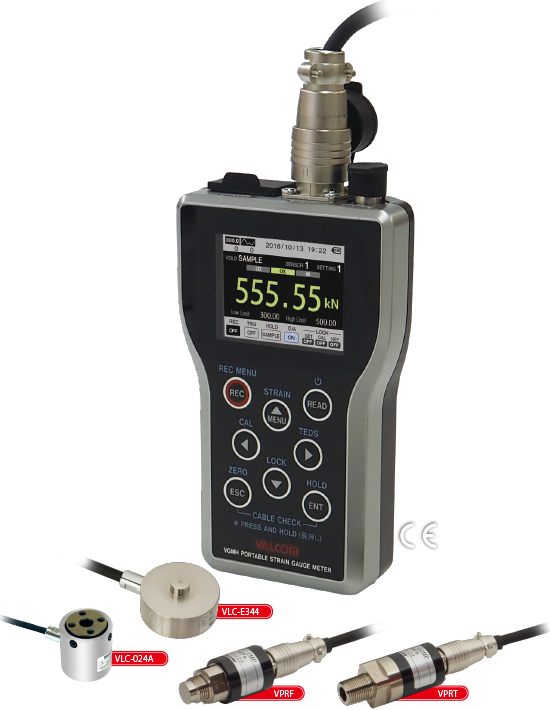

Portable Strain Gauge Meter
VGMH series

VGMH Series enables you to quickly check pressure and load* for easy analysis and calibration in the field!
* Strain gauge transducer

VGMH series

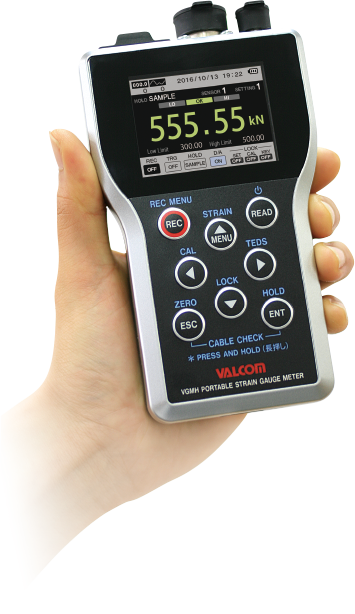

Using this hand-held meter, you can readily check the values of load cells or pressure sensors installed on the shop floor. This is helpful for pressure/load measurement in the field where signals can be checked only in distant locations or if you need to check one device after another. In a compact body that fits in one hand, it has advanced features such as color bar meter and graph overlay. Besides, VGMH Data Viewer can be downloaded free of charge. This data management software allows you to easily prepare various highly functional reports of distribution or transition of measurement data by connection with PC.

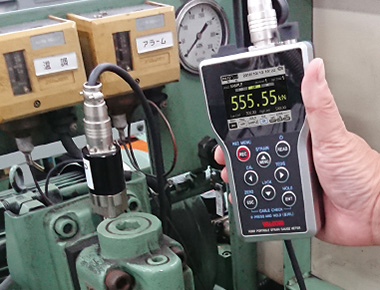

Pressure check on hydraulic equipment
Pressure check on hydraulic equipment

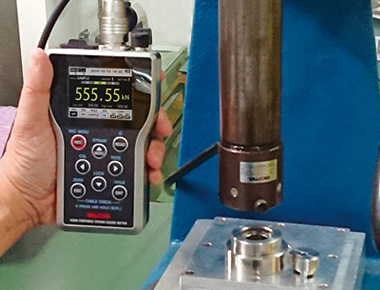

Press and press-fit load control
Press and press-fit load control

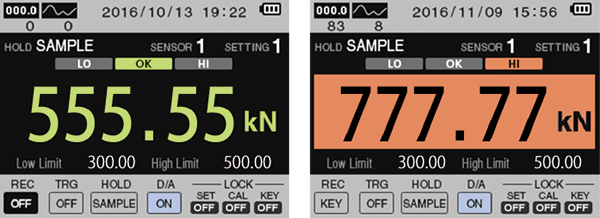

Color graphic LCD screen
  • Clear and easy-to-read color LCD
  • Values on safe or hazardous levels can be intuitively color-coded.
  • Color graphic LCD screen

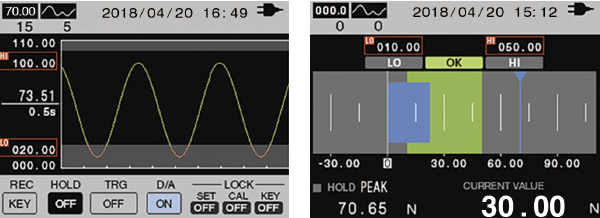

Waveform & bar meter display
  • Whether the measured value is proper, insufficient, or excessive can be intuitively grasped at a glance.
  • Waveform & bar meter display

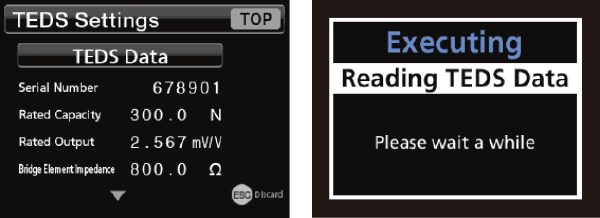

TEDS function(*1) (Transducer Electronic Data Sheet)
  • Reads the sensor(*2) information to automatically, and records calibration values when the power is turned on.
  • Sensor(*2) information can be displayed and rewritten.
  • TEDS function

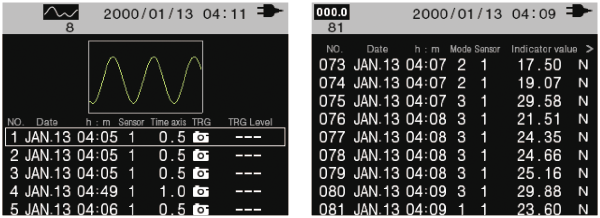

Indicator value list
  • This shows a list of recorded indicator values.
  • Waveform screen can be recorded, displayed and compared.
  • Indicator value list

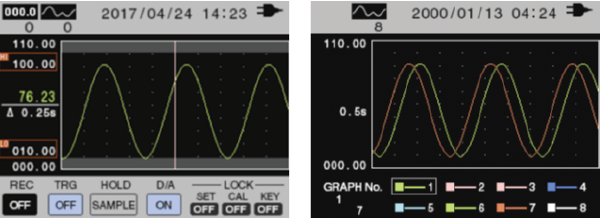

Graph analysis and overlay functions
  • Process reproducibility check
  • Easy to understand graphs by comparison with data of non-defective products
  • Graph analysis and overlay functions
Static Strain Disp. Mode
  • Set whether to show the input signal(*2) with the strain amount.
  • Use when checking sensor(*2) output and unsteadiness in indicator values, including for sensors and cables, and when making adjustments for discrepancies.
  • 静ひずみ表示

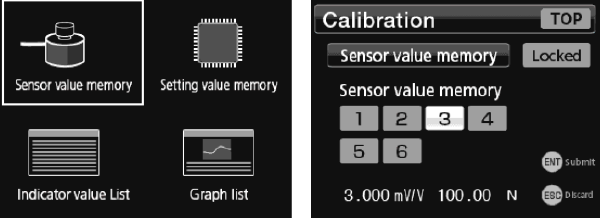

6 types of sensor (*2) data can be stored.
  • Sensor (*2) specific values need not be input every time since they can be stored.
  • Frequently used data sets and graphs can be called up quickly.
  • 6 types of sensor data can be stored.

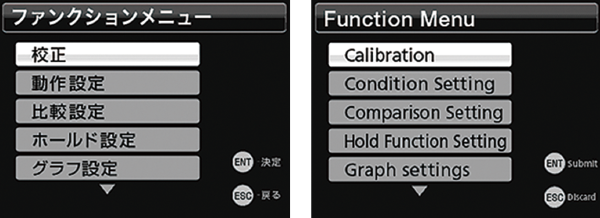

Languages support
  • For use overseas (for business trips)
  • You can select the language, Japanese or English.
  • Languages support
Interrupted wire(*2) checking
  • Wire disconnecting becomes readily apparent at a field.
  • If the possibility of an interruption is detected, the location of the possible interruption will be shown in red.
  • Interrupted wire checking

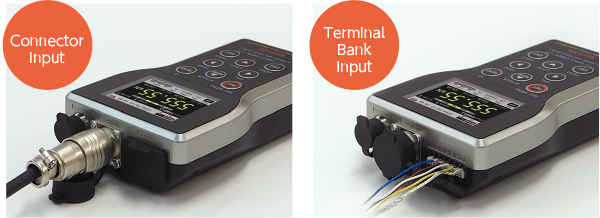

Two sensor (*2) input lines
  • Supports multiple measurements thanks to the enabled connector input and terminal block (loose wire) input.
  • Two sensor input lines

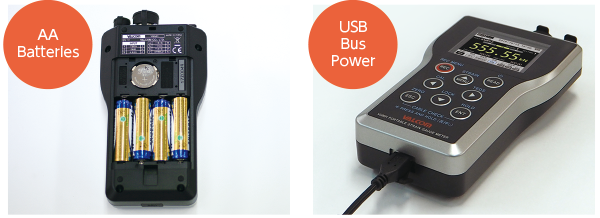

Multiple power supply system
  • Operation on four AA batteries power
  • Micro-B USB port use to supply bus power
  • Multiple power supply system

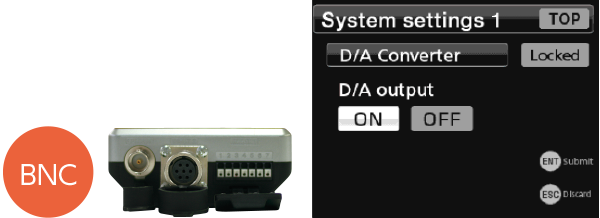

D/A output
  • You can achieve analog output that corresponds to the full scale as voltage output within ±2V. Available as a dynamic strain amplifier.
  • D/A output

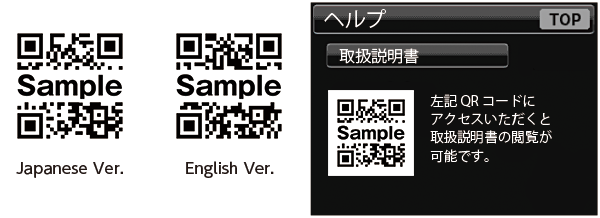

Download owner's manual
  • Download the owner's manual from the QR code.
  • Download owner's manual

(*1) This function is available for use in combination with the TEDS-compatible sensors.
(*2) Strain gauge transducers such as pressure sensors, load cells, torque sensors.

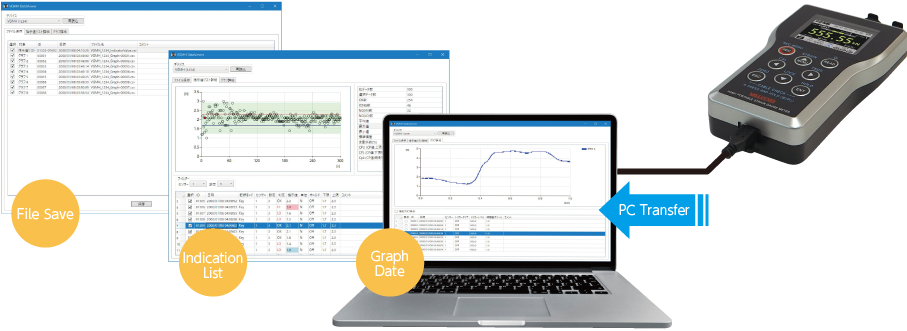

Data Management SoftwareVGMH Data Viewer

Measurement data can be saved in CSV (Excel) format on PC or arranged in a list to show whether they fall within the predetermined upper and lower limits.
Also, values involving time-series change can be plotted in graphs with ease.

Data Management Software VGMH Data Viewer

"VGMH Data Viewer" is the software for management of data recorded by VGMH, and download free.
However, membership is required to download software.

Recommended hardware
PC with Intel Core 2 Duo or faster processor, 1GB or more memory

Supported OS
Windows 7 SP1 (32/64bit)
Windows 8.1 (32/64bit)
Windows 10 (32/64bit)
(As of April 2018)

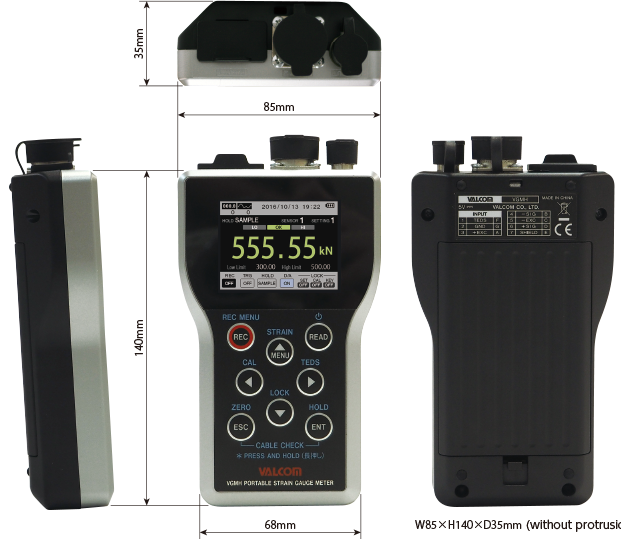

External drawings

External drawings

Option

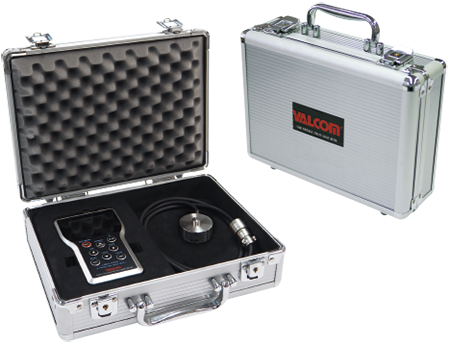

●Carrying case(Hard) CC-VGMH-H

Carrying case(Hard) CC-VGMH-H

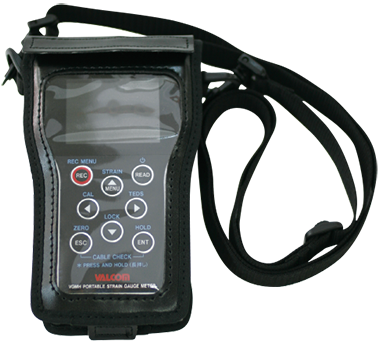

●Carrying case(Soft) CC-VGMH-S

Carrying case(Soft) CC-VGMH-S
Specifications
Mode VGMH
Compatible sensors Strain gauge transducer
Signal input terminals Round connector (NDIS7P)/terminal bank (connect only one at a time)
Excitation Voltage DC2.5V±5%(30mA maximum current)
Signal input range ±5mV/V
Equivalent input/TEDS Calibration range 0.3mV/V– 5.0mV/V
Calibration precision Within 0.1%F.S.
(when using a 1m standardφ8mm, 6-core shielded cable with 350Ω impedance, when 5mV/V)
Precision Nonlinearity Within 0.01%F.S.±1Digit (when 5mV/V)
Zero drift Within 0.5µV/°C (input conversion value)
Gain drift 0.005%/°C or less
A/D conversion 1000 times/second, 24-bit
Digital filter Moving average (select from OFF, 16, 32, 64, 128, 256, 512, 1024, 2048)
D/A output Output connector BNC
Output voltage ±2.0V
Resolution 70.16µV typ
Nonlinearity 0.02%F.S. or less
Zero drift 0.1mV/°C or less
Gain drift 0.003%/°C or less
TEDS function IEEE1451.4 class 2 mix mode interface
Display Display 2.4" color TFT LCD
Display modes Setting screens, indicator value digital display, graph display, recorded data list display, static strain display
Languages Japanese/English
Indicator value Display range −99999–99999
Decimal point Display position selectable
Displayed items Calibration settings Zero calibration/span calibration (TEDS calibration, actual load calibration, equivalent input calibration)
Function settings High limit, low limit, comparison mode, hysteresis, nearly zero,
moving average, motion detect, zero tracking, digital zero, digital zero offset,
zone definition, hold mode, control lock, minimum grid, digital zero limit,
clear digital zero, select data output, D/A converter
Hold functions Sample hold, peak hold, bottom hold, zone definition hold (peak, bottom)
Data recording Indicator value 300 maximum
Recorded contents: ID number, date and time, recording mode, sensor value memory number, indicator value
Graph recording 8 maximum
Recorded contents: ID number, date and time, sensor value memory number, trigger mode, graph waveform
Power supply 4 alkaline or NiMH AA batteries
USB bus power (built-in Micro-USB B connector)
Operating temperature range 0–40°C
Storage temperature range −20–60°C
Operating humidity range 85% RH or less (without condensation)
Applicable standards CE marking, VCCI (Class A), FCC (Class A)
External dimensions(W×H×D) Approximately 85mm×140mm×35mm (without protrusions)
Weight About 320 g (including batteries)
