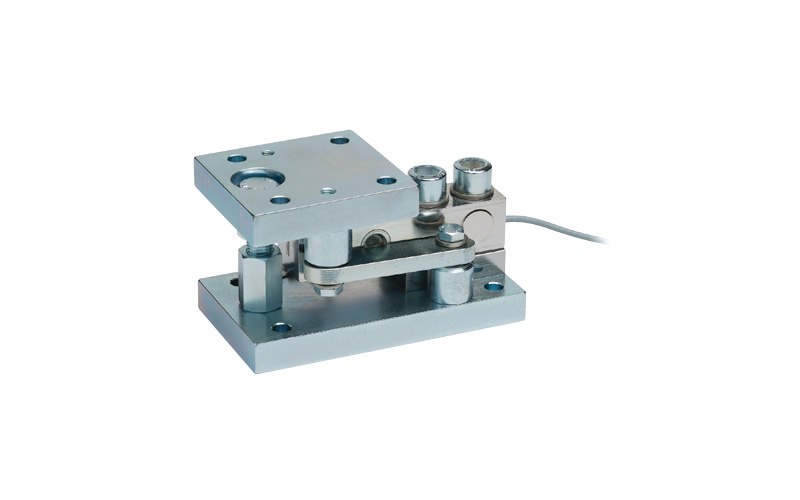

Weigh Module type Load Cell
VHLCB2C3/MLBR series
110kg–4.4ton
- Suitable for tank weighing
- Module type
- Particularly good environmental resistance
- Overload protection and uplift prevention mechanisms included
- Compact design with limited height
- Anti-vibration mechanism with a stay rod
- Self-standing design with bendall bearing
- Made of stainless steel
Specifications
| Rated output | 1.94mV/V±0.1% |
|---|---|
| Nonlinearity | ±0.0170%R.C. |
| Hysteresis | ±0.0166%R.C. |
| Zero balance | −0.190–0.030mV/V |
| Temperature effect on zero balance | ±0.0140%R.C./10°C (*1) |
| Temperature effect on load | ±0.0140%R.C./10°C |
| Safe overload rating | 150%R.C.(110kg,220kg,550kg,1.1t) 120%(1.76t,2.2t,4.4t) |
| Temperature compensation range | −10–40°C (No condensation or freezing) |
| Safe temperature range | −30–70°C (No condensation or freezing) |
| Input terminal resistance | 350–480Ω |
| Output terminal resistance | 350±2Ω |
| Recommended excitation voltage | 5V |
| Excitation voltage range | 0.5–15V |
| Insulation resistance | 5000MΩ |
| IP Rating | IP68/IP69, Compliant with EN 60529 (IEC 60529) (Note 1) |
| Cable | TPE 6-core Shielded cable, See dimension N in table below. |
- (*1) 110kg, 550kg, 1.1t:±0.0127%R.C./10°C
- Creep 30min: ±0.0166%R.C.
- (Note 1) Sealing performance of the cable outlet may deteriorate due to the change of cable jacket over years.
Model selection
| Selection | Model | Rated capacity | Deflection at R.C. | A | B | C | D |
|---|---|---|---|---|---|---|---|
| VHLCB2C3/MLBR-110kg | 110kg(1.079kN) | Approx. 0.5mm | 93.6±1.6 | 170 | 100 | 70 | |
| VHLCB2C3/MLBR-220kg | 220kgf (2.158kN) | ||||||
| VHLCB2C3/MLBR-550kg | 550kgf (5.394kN) | ||||||
| VHLCB2C3/MLBR-1.1t | 1.1tonf (10.79kN) | ||||||
| VHLCB2C3/MLBR-1.76t | 1.76tonf (17.26kN) | Approx. 1.4mm | |||||
| VHLCB2C3/MLBR-2.2t | 2.2tonf (21.58kN) | Approx. 0.5mm | 125.3±2 | 220 | 120 | 84 | |
| VHLCB2C3/MLBR-4.4t | 4.4tonf (43.15kN) |
| Model | E | F | φG | H | J | K | φL | N | Weight |
|---|---|---|---|---|---|---|---|---|---|
| VHLCB2C3/MLBR-110kg | 17 | 136 | 13.5 | 15 | 19 | 17 | 104 | 3m | Approx. 7kg–Approx. 10kg |
| VHLCB2C3/MLBR-220kg | |||||||||
| VHLCB2C3/MLBR-550kg | |||||||||
| VHLCB2C3/MLBR-1.1t | |||||||||
| VHLCB2C3/MLBR-1.76t | |||||||||
| VHLCB2C3/MLBR-2.2t | 25.5 | 175 | 14 | 18 | 23 | 19.5 | 135 | 6m | |
| VHLCB2C3/MLBR-4.4t |
- *Weight includes cable.

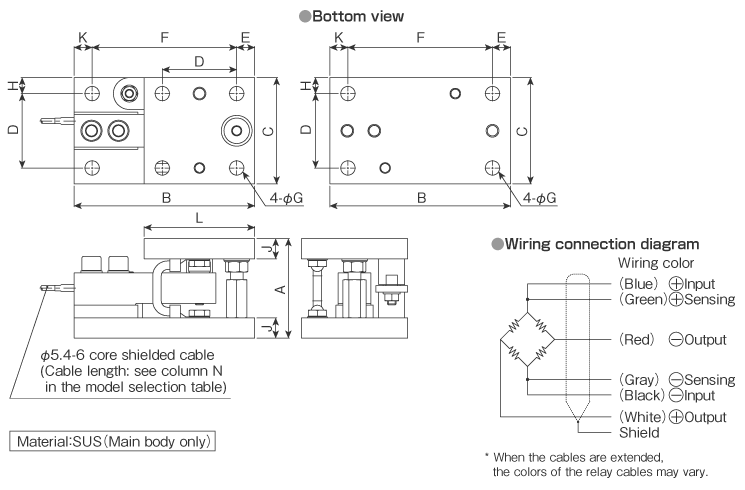

External dimensions (Unit: mm)
Load Cell
