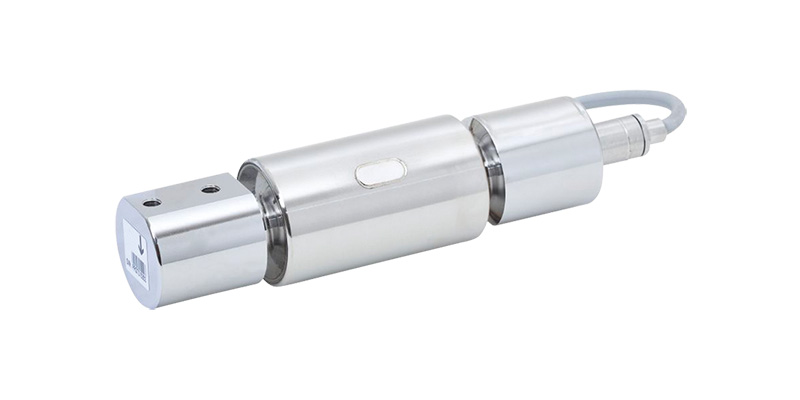

Single Point type Load Cell
VPW25C3
10kg, 20kg

  • Overload protection (Ultimate overload rating: 1000%)
  • Fully made of stainless steel
  • Clean design, nearly free from edges and fissures
  • Full sealed and welded casing with IP68 or IP69K rating that endures severe cleaning environment

Specifications

Rated output 2.0±0.2mV/V
Nonlinearity ±0.0166%R.C.
Hysteresis ±0.0166%R.C.
Temperature effect on zero balance ±0.0140%R.C./10°C
Temperature effect on load −10–20°C:±0.0117%R.C./10°C
20–40°C:±0.0175%R.C./10°C
Overload rating under service load 150%R.C. (at a point not more than 120 mm away from the center)
Ultimate overload rating 1000%R.C. (at a point 20 mm away from the center)
Destruction load 1500%R.C. or less
Allowable dynamic load 70%R.C. (at a point not more than 50 mm away from the center)
Temperature compensation range −10–40°C (No condensation or freezing)
Safe temperature range −20–50°C (No condensation or freezing)
Input terminal resistance 380±15Ω
Output terminal resistance 360±15Ω
Recommended excitation voltage 5V or less
Excitation voltage range 1–12V (Max. 15V)
Insulation resistance 1GΩ or less (DC100V)
IP Rating IP68 (Added test condition: Soak for 100 hours in a water tank of 1 m in depth.)
IP69K (High-pressure cleaning possible)
Cable φ5.4-6-core Shielded cable
3m with crimp terminal
  • Creep 30min: 0.017%R.C.
  • (Note 1) Sealing performance of the cable outlet may deteriorate due to the change of cable jacket over years.

Model selection

Selection Model Rated capacity Deflection at R.C. Maximum Load Area Weight
  VPW25C3-10kg 98.07N 0.18mm 400×400mm Approx. 0.8kg
  VPW25C3-20kg 196.14N 0.18mm 400×400mm Approx. 0.8kg
  • *Weight includes cable.

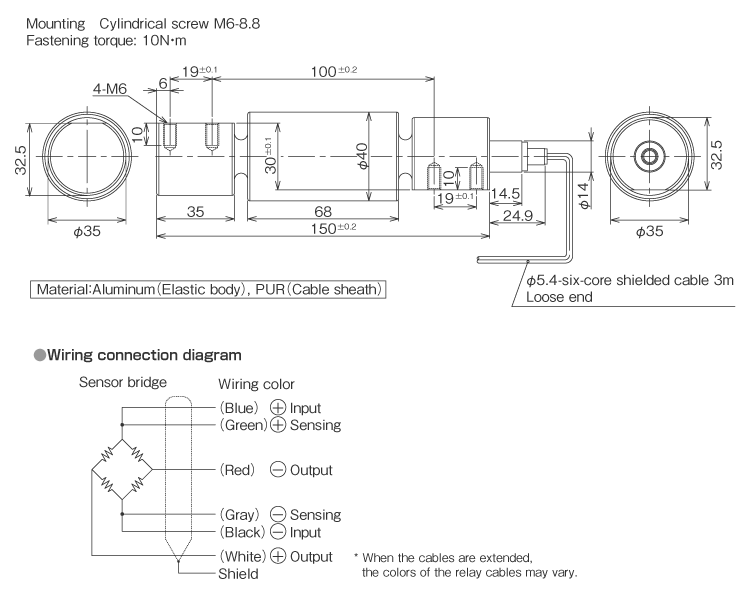

External dimensions (Unit: mm)

External dimensions
