Made-to-order

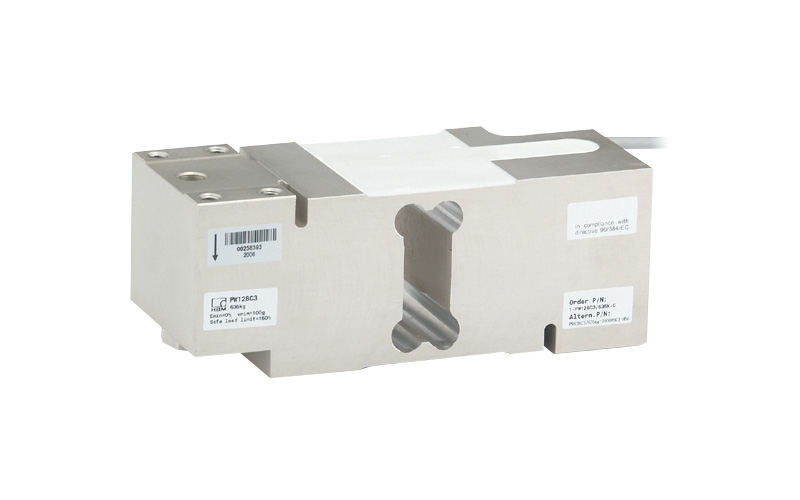

Single Point type Load Cell
VPW12CC3 series
50kg–750kg
- High accuracy
- Good environmental resistance
Specifications
| Rated output | 2.0±0.2mV/V |
|---|---|
| Nonlinearity | ±0.0166%R.C. |
| Hysteresis | ±0.0166%R.C. |
| Zero balance | ±0.1mV/V |
| Temperature effect on zero balance | See table below. |
| Temperature effect on load | 20–40°C:±0.0175%R.C./10°C -10–20°C:±0.0117%R.C./10°C |
| Safe overload rating | 150%R.C. |
| Temperature compensation range | −10–40°C (No condensation or freezing) |
| Safe temperature range | −10–50°C (No condensation or freezing) |
| Input terminal resistance | 300–500Ω |
| Output terminal resistance | 300–500Ω |
| Recommended excitation voltage | 5V |
| Excitation voltage range | 15V |
| Insulation resistance | 2GΩ |
| IP Rating | Equivalent to IP67 (Note 1) |
| Cable | φ5.4-6-core Shielded cable 3m |
- Creep 30min: ±0.0166%R.C. Eccentric error: ±0.0233%R.C.
- (Note 1) Sealing performance of the cable outlet may deteriorate due to the change of cable jacket over years.
Model selection
| Selection | Model | Rated capacity | Minimum load cell Verification interval | Temperature effect on zero balance | Maximum Load Area | Deflection at R.C. | Weight |
|---|---|---|---|---|---|---|---|
| VPW12CC3-50kg | 50kg (490.3N) | 10g (0.0980N) | ±0.0280%R.C./10°C | 800×800mm | Approx. 0.5mm | Approx. 2.4kg | |
| VPW12CC3-75kg | 75kg (735.5N) | 10g (0.0980N) | ±0.0186%R.C./10°C | ||||
| VPW12CC3-100kg | 100kg (980.7N) | 20g (0.1961N) | ±0.0280%R.C./10°C | ||||
| VPW12CC3-150kg | 150kg (1.471kN) | 20g (0.1961N) | ±0.0186%R.C./10°C | ||||
| VPW12CC3-200kg | 200kg (1.961kN) | 50g (0.4903N) | ±0.0350%R.C./10°C | ||||
| VPW12CC3-250kg | 250kg (2.452kN) | 50g (0.4903N) | ±0.0280%R.C./10°C | ||||
| VPW12CC3-300kg | 300kg (2.942kN) | 50g (0.4903N) | ±0.0233%R.C./10°C | ||||
| VPW12CC3-500kg | 500kg (4.903kN) | 100g (0.9807N) | ±0.0280%R.C./10°C | ||||
| VPW12CC3-635kg | 635kg (6.227kN) | 100g (0.9807N) | ±0.0221%R.C./10°C | ||||
| VPW12CC3-750kg | 750kg (7.355kN) | 100g (1.9614N) | ±0.0186%R.C./10°C |
- *Weight includes cable.

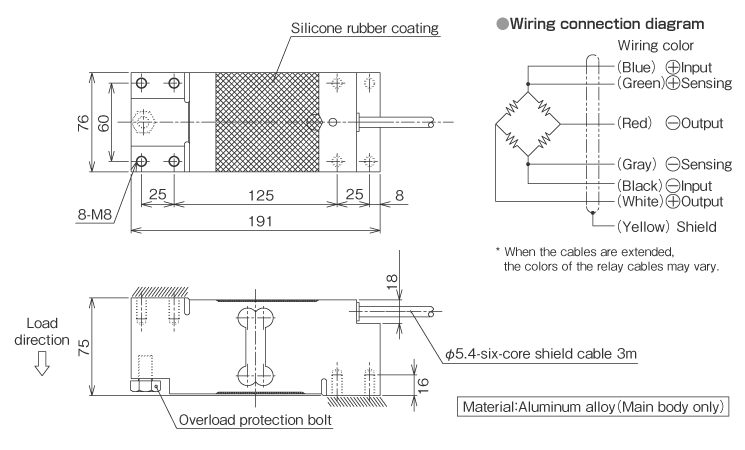

External dimensions (Unit: mm)
Load Cell
