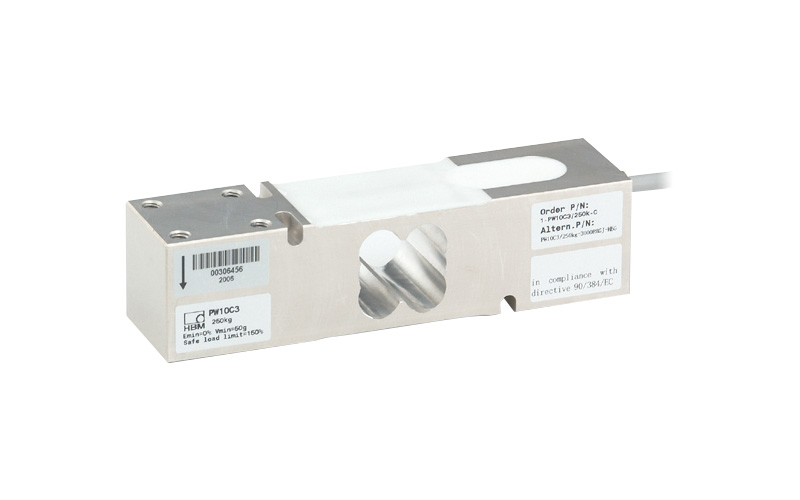

Single Point type Load Cell
VPW10AC3 series
50kg–300kg

  • High accuracy
  • Good environmental resistance

Specifications

Rated output 2.0±0.2mV/V
Nonlinearity ±0.0166%R.C.
Hysteresis ±0.0166%R.C.
Zero balance ±0.1mV/V
Temperature effect on load −10–20°C:±0.0117%R.C./10°C
-20–40°C:±0.0175%R.C./10°C
Safe overload rating 150%R.C.
Safe Side Load Level 300%R.C.
Temperature compensation range −10–40°C (No condensation or freezing)
Safe temperature range −10–50°C (No condensation or freezing)
Input terminal resistance 300–500Ω
Output terminal resistance 300–500Ω
Recommended excitation voltage 5V or less
Excitation voltage range 15V
Insulation resistance 2000MΩ
IP Rating Equivalent to IP67 (Note 1)
Cable φ5.4-6-core Shielded cable 3m
  • Creep 30min: ±0.0166%R.C. Eccentric error: ±0.0233%R.C.
  • (Note 1) Sealing performance of the cable outlet may deteriorate due to the change of cable jacket over years.

Model selection

Selection Model Rated capacity Minimum load cell Verification interval Temperature effect on zero balance Maximum Load Area
  VPW10AC3-50kg 50kg (490.3N) 10g (0.0980N) ±0.0280%R.C./10°C 600×500mm
  VPW10AC3-100kg 100kg (980.7N) 20g (0.1961N) ±0.0280%R.C./10°C
  VPW10AC3-150kg 150kg (1.471kN) 20g (0.1961N) ±0.0186%R.C./10°C
  VPW10AC3-200kg 200kg (1.961kN) 50g (0.4903N) ±0.0350%R.C./10°C
  VPW10AC3-250kg 250kg(2.451kN) 50g(0.4903N) ±0.0280%R.C./10°C
  VPW10AC3-300kg 300kg (2.942kN) 50g (0.4903N) ±0.0233%R.C./10°C
  • Deflection at R.C.: Approx. 0.5mm
  • Weight: Approx. 600g

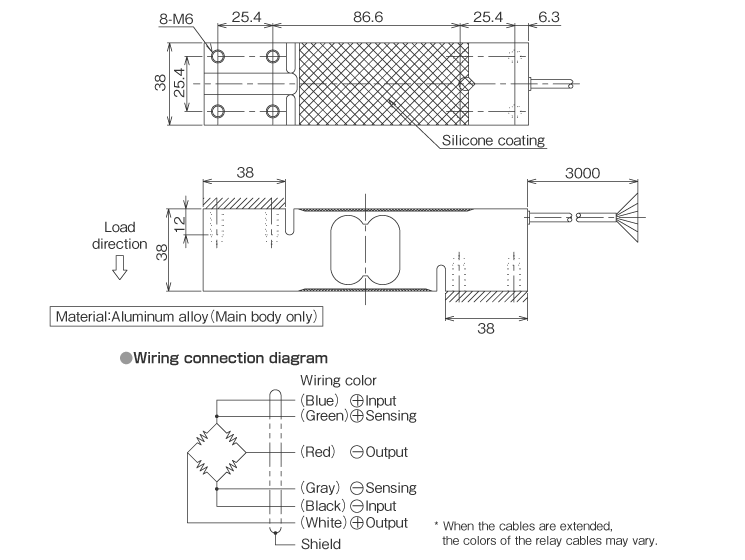

External dimensions (Unit: mm)

External dimensions
