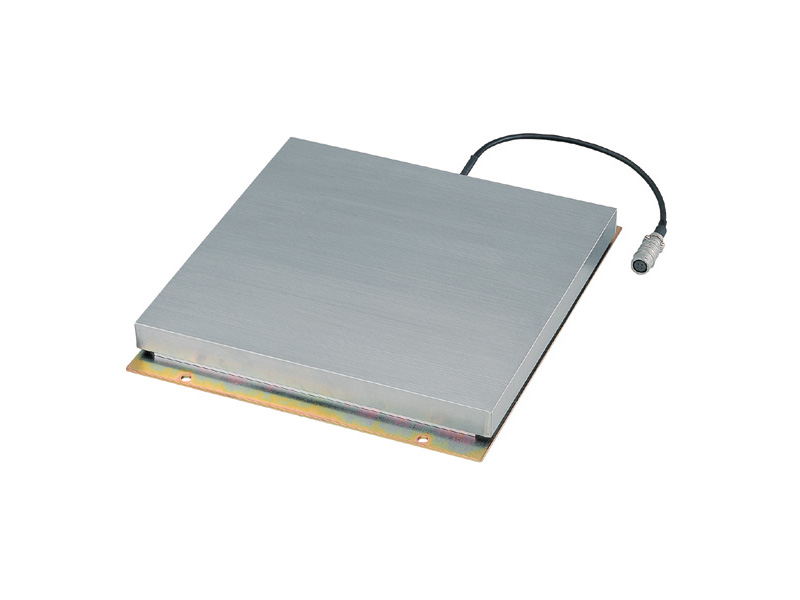

Floor Scale type Load Cell
VLTT series
50kg–500kg
*As for 500 kg, only a transducer is.

  • Ultralow profile design of 31 mm in height.
  • Amplifier built-in type also available
  • Selectable between transmitter and transducer.

Specifications1(Load transmitter)

Safe overload rating 150%R.C.
Accuracy Within ±0.3%R.C. (Non Linearity, Hysteresis, Repeatability included)
Analog output 4–20mA
Power supply[Current consumption] DC24V±10% [Approx. 20mA]
Load Resistance 500Ω or less
Temperature compensation range 0–50°C (No condensation or freezing)
Safe temperature range 0–60°C (No condensation or freezing)
Temperature Effect ±1%R.C./10°C
Cover Material SUS304
Base Plate Material 140–200:Aluminum
250–500:SPCC (Chromate plating)
Cable 2-core Shielded cable
Flame-retardant, oilproof vinyl sheath

Specifications2(Load transducer)

Safe overload rating 150%R.C.
Accuracy Within ±0.3%R.C. (Non Linearity, Hysteresis, Repeatability included)
Rated output 2mV/V±1%
Recommended excitation voltage 10V DC
Maximum excitation voltage 30V DC
Temperature compensation range −10–50°C (No condensation or freezing)
Safe temperature range −10–60°C (No condensation or freezing)
Temperature Effect ±1%R.C./10°C
Cover Material SUS304
Base Plate Material 140–200: Aluminium
250–500:SPCC (Chromate plating)
Cable 4-core Shielded cable
Flame-retardant, oilproof vinyl sheath

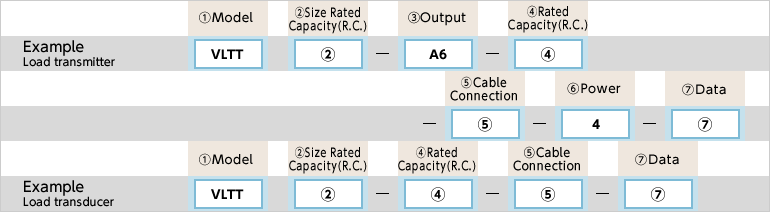

Model selection

Model selection

Selection Check Model Specifications
1.Model   VLTT Load transmitter (Built-in Amplifier type)
  VLTT Load transducer
2.Size/Rated capacity
(*1)
  2 200 (Can be selected between 50 and 100 kg.)
  3 250 (Can be selected between 100 and 200 kg.)
  4 300 (Can be selected between 50, 100 and 200 kg.)
  5 420 (Can be selected between 100 and 200 kg.)
  6 500 (Can be selected between 100 and 200 kg.)
  7 500 (Can be selected between 400 and 500 kg.)
*As for 500 kg, only a transducer is.
3.Analog output A6 4–20mA (2-wire) *To be selected for load transmitter only
4.Rated capacity   050 50kg
  100 100kg
  200 200kg
  400 400kg
  500 500kg
*As for 500 kg, only a transducer is.
7.Cable connection   S01 Cable extension 1m
  S02 Cable extension 2m
  S03 Cable extension 3m (Standard)
  S04–99 Cable extension 4–99m
8.Power supply 4 DC15–26V *To be selected for load transmitter only
9.Data   N Examination result (3-point measurement)/(Standard)
  T Traceability documents
*Traceability documents breakdown
1:Traceability certificate, 2:Traceability system diagram, 3:Examination result(3-point measurement)
  • (*1) Note that some sizes may not be selected depending on the rated capacity.

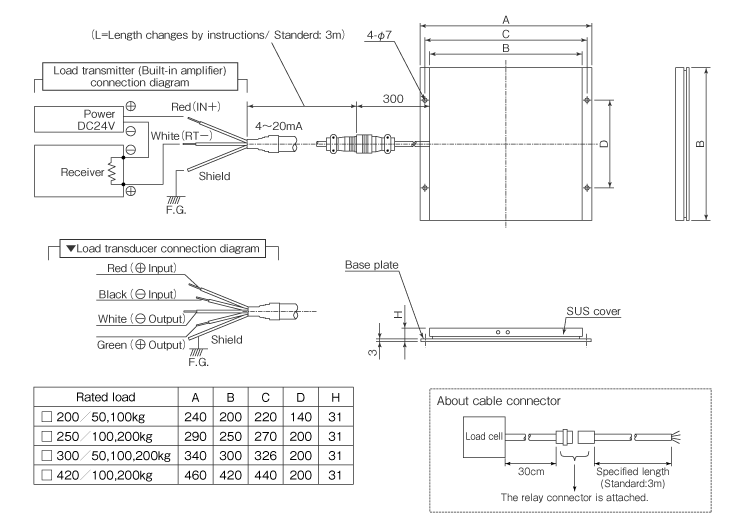

External dimensions (Unit: mm)

External dimensions
