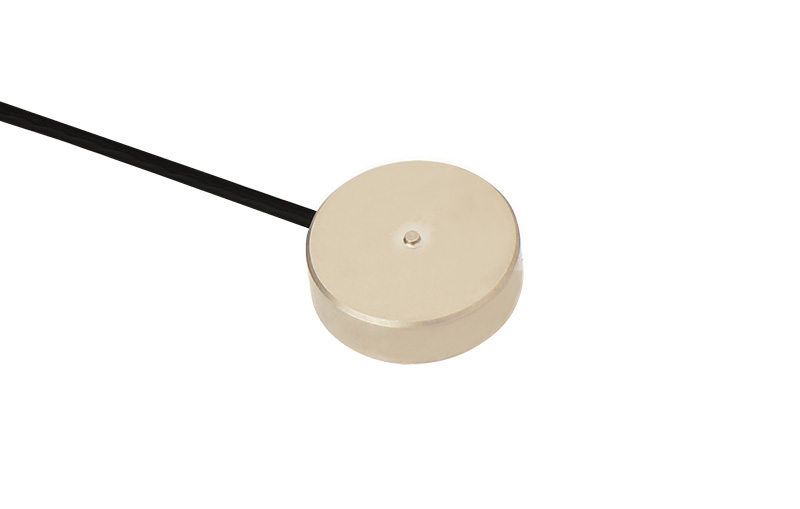

Sub-miniature Button Load Cell
VLS series
5N–1kN

  • Ultrasmall design

Specifications

Rated output 1.0mV/V±0.4mV/V, 0.8mV/V±0.4mV/V(VLS-0.5K)
Nonlinearity ±1%R.C.
Hysteresis ±1%R.C.
Repeatability ±1%R.C.
Zero balance ±0.2mV/V
Temperature effect on zero balance ±2%R.C./10°C
Temperature effect on load ±2%R.C./10°C
Safe overload rating 150%R.C.
Temperature compensation range 0–50°C (No condensation or freezing)
Safe temperature range −10–60°C (No condensation or freezing)
Input terminal resistance 350±10Ω
Output terminal resistance 350±10Ω
Recommended excitation voltage 5V or less
Maximum excitation voltage 8V
Insulation resistance 1000MΩ or more (DC 50V) (Bridge–Housing)
IP rating Equivalent to IP60 (Main body only) (Note 1)
Cable φ1.8mm 4-core Shielded cable 3m, directly-connected
  • (Note 1) Sealing performance of the cable outlet may deteriorate due to the change of cable jacket over years.

Model selection

Selection Model Rated capacity Deflection at R.C. φA B C φD Weight
  VLS-0.5K 4.903N Approx. 0.05mm φ12 4 0.5 φ1 Approx. 6g
  VLS-1K 9.807N
  VLS-2K 19.61N
  VLS-5K 49.03N
  VLS-10K 98.07N φ15 5 Approx. 10g
  VLS-20K 196.1N
  VLS-50K 490.3N φ20 9.5 1.5 φ2 Approx. 20g
  VLS-100K 980.7N φ3 Approx. 22g
  • *Weight includes cable.

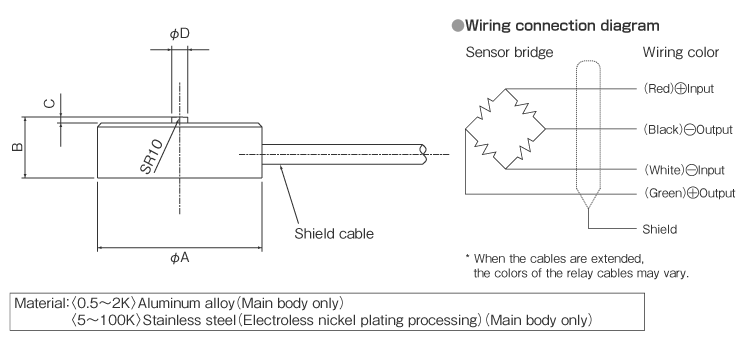

External dimensions (Unit: mm)

External dimensions
