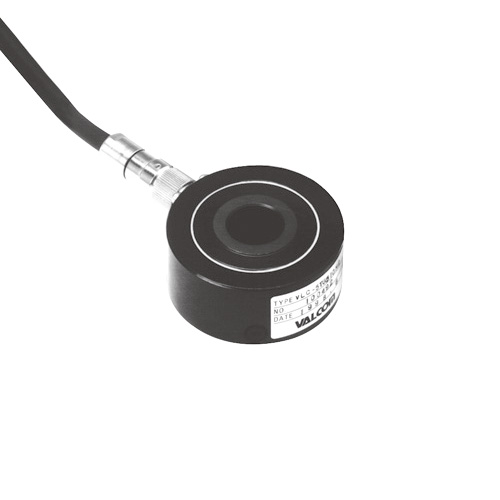

Miniature Washer type Load Cell
VLC-G510A series
20kN–50kN

  • Compact center-hole type that can be installed anywhere.
  • Robot cable (5 m, standard)

Specifications

Rated output 0.850–1.150mV/V
Nonlinearity ±1%R.C.
Hysteresis ±1%R.C.
Repeatability ±1%R.C.
Zero balance −0.050–0.050mV/V
Temperature effect on zero balance ±0.2%R.C./10°C
Temperature effect on load ±0.2%R.C./10°C
Safe overload rating 150%R.C.
Temperature compensation range −5–60°C (No condensation or freezing)
Safe temperature range −10–75°C (No condensation or freezing)
Input terminal resistance 343.0–357.0Ω
Output terminal resistance 343.0–357.0Ω
Recommended excitation voltage 8V or less
Maximum excitation voltage 12V
Insulation resistance 1000MΩ or more (DC 50V)
IP rating Equivalent to IP60 (Main body only) (Note 1)
Cable φ6mm 4-core shielded robot cable (KDF-SB) 5m
  • (Note 1) Sealing performance of the cable outlet may deteriorate due to the change of cable jacket over years.

Model selection

Selection Model Rated capacity Deflection at R.C. D Weight
  VLC-20KNG510A 20kN Approx. 0.02mm 20 Approx. 500g
  VLC-50KNG510A 50kN 24
  • *Weight includes cable.

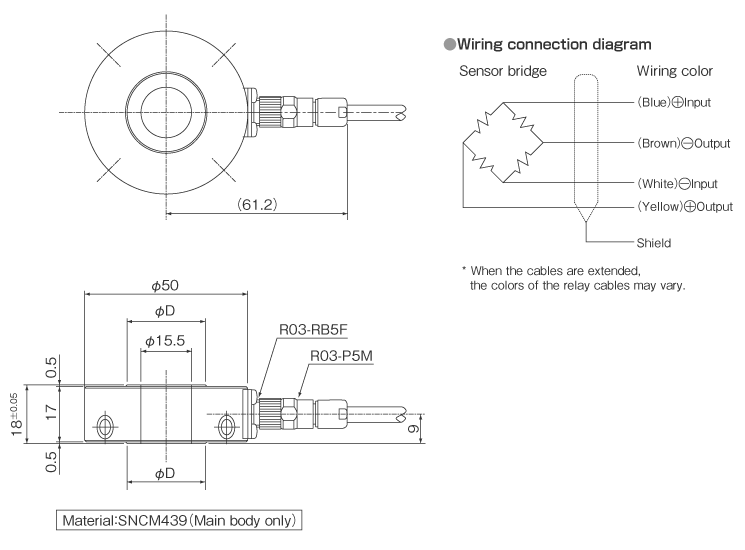

External dimensions (Unit: mm)

External dimensions
