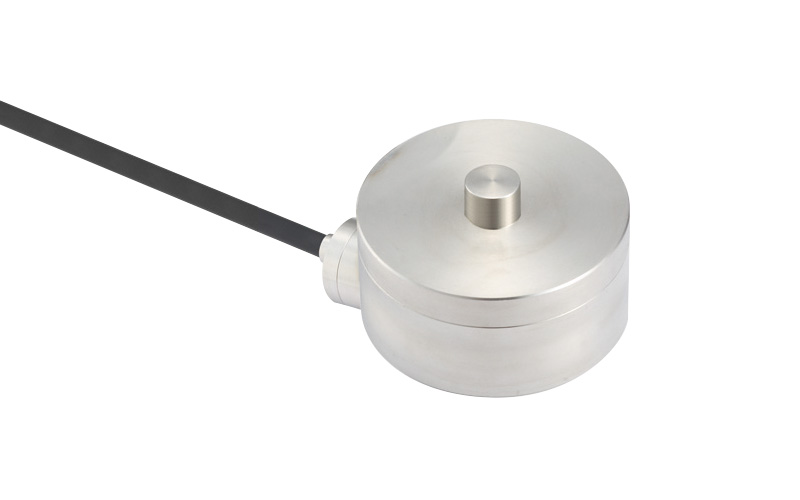

Environment-Poof Button Load Cell
VLC-G471M2 series
2kN–50kN

  • Double-sealed cable connection for improved water resistance.
  • Suitable to tension control for paper, etc.

Specifications

Rated output 1.5mV/V±2%
Nonlinearity ±0.1%R.C.
Hysteresis ±0.1%R.C.
Repeatability ±0.1%R.C.
Zero balance ±5%R.O.
Temperature effect on zero balance ±0.05%R.C./10°C
Temperature effect on load ±0.05%R.C./10°C
Safe overload rating 200%R.C.
Temperature compensation range −10–60°C (No condensation or freezing)
Safe temperature range −15–75°C (No condensation or freezing)
Input terminal resistance 350Ω±2%
Output terminal resistance 350Ω±2%
Recommended excitation voltage 8V or less
Safe excitation voltage 12V
Insulation resistance 1000MΩ or more
IP rating Equivalent to IP65 (Note 1)
Cable φ8-4-core Shielded cable (CESV-B) 10m Non-stranded wire
  • (Note 1) Sealing performance of the cable outlet may deteriorate due to the change of cable jacket over years.

Model selection

Selection Model Rated capacity Deflection at R.C. Weight
  VLC-2KNG471M2 2kN 0.09mm Approx. 3.3kg
  VLC-5KNG471M2 5kN 0.05mm
  VLC-10KNG471M2 10kN 0.04mm
  VLC-20KNG471M2 20kN 0.03mm
  VLC-50KNG471M2 50kN 0.02mm
  • *Weight includes cable.

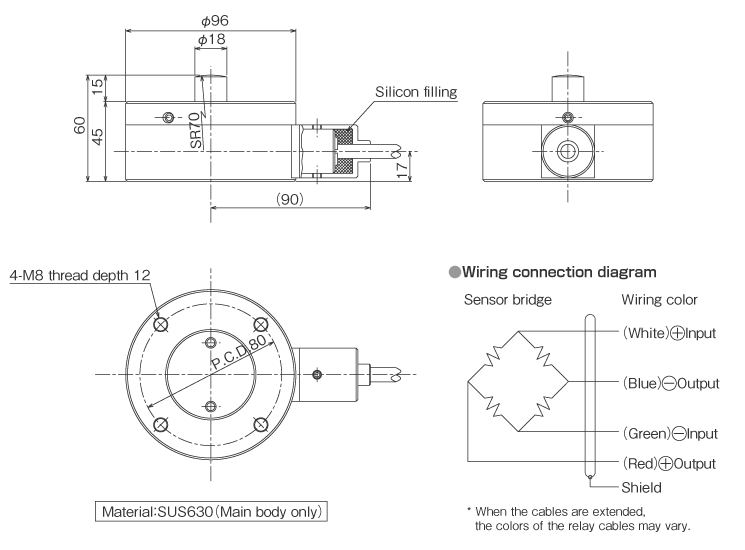

External dimensions (Unit: mm)

External dimensions
