Specialized manufacturer of Digital Pressure Meters and Load Cells

VALCOM CO.,LTD.

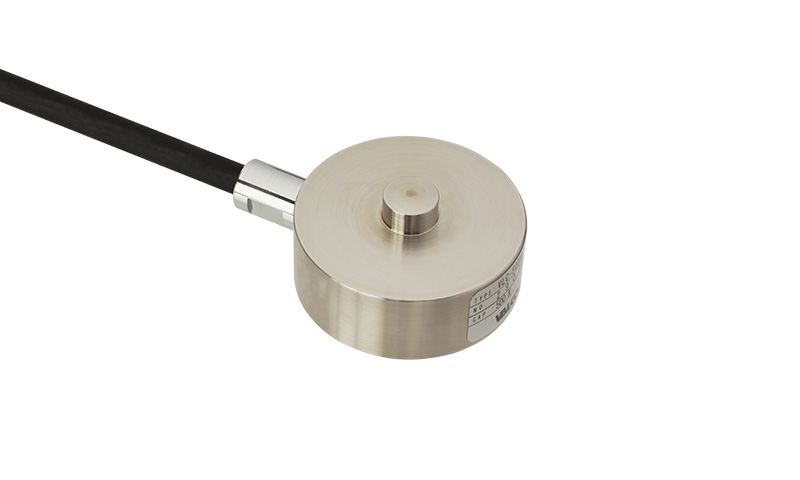

Load button type load cell
VLC-E344 series
500N–20kN

  • Ideal for measuring load changes during press-fit and press processes
  • Robot cable (5 m, standard)

Specifications

Rated output 1.995–2.005mV/V
Nonlinearity ±0.15%R.C.
Hysteresis ±0.1%R.C.
Repeatability ±0.05%R.C.
Zero balance −0.060–0.060mV/V
Temperature effect on zero balance ±0.05%R.C./10°C
Temperature effect on load ±0.1%R.C./10°C
Safe overload rating 150%R.C.
Temperature compensation range −10–70°C (No condensation or freezing)
Safe temperature range −15–80°C (No condensation or freezing)
Input terminal resistance 350Ω±2%
Output terminal resistance 350Ω±2%
Recommended excitation voltage 1–10V
Maximum excitation voltage 15V
Insulation resistance 1000MΩ or more (DC 50V)
IP rating Equivalent to IP64 (Main body only) (Note 1)
Cable φ6mm 4-core shielded robot
cable (KDF-SB) 5m, directly-connected
  • (Note 1) Sealing performance of the cable outlet may deteriorate due to the change of cable jacket over years.

Model selection

Selection Model Rated capacity Deflection at R.C. Weight
  VLC-500NE344 500N Approx. 0.15mm Approx. 550g
  VLC-1KNE344 1kN Approx. 0.10mm
  VLC-2KNE344 2kN
  VLC-5KNE344 5kN
  VLC-10KNE344 10kN Approx. 0.07mm
  VLC-20KNE344 20kN
  • *Weight includes cable.

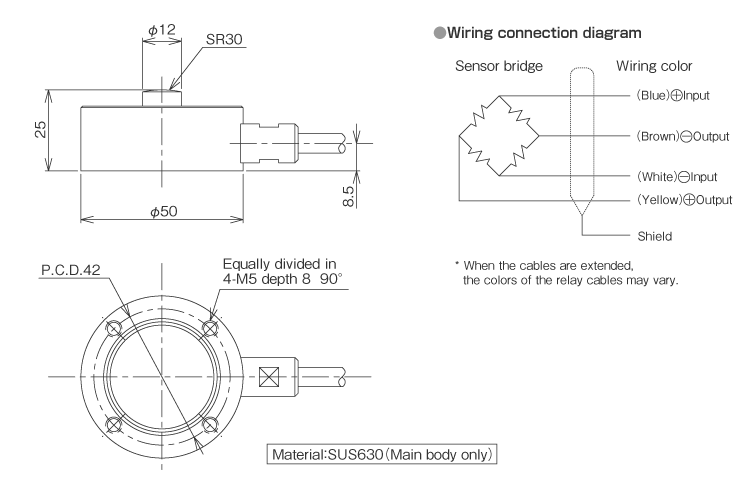

External dimensions (Unit: mm)

External dimensions
