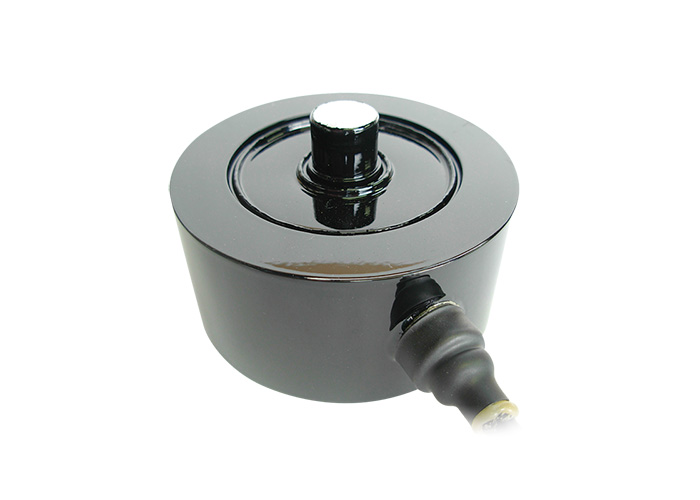

Load button type load cell
VLC-218 series
50kN–200kN

  • High accuracy
  • Robot cable (5 m, standard)

Specifications

Rated output 2mV/V±0.1mV/V
Nonlinearity ±0.2%R.C.
Hysteresis ±0.2%R.C.
Repeatability ±0.1%R.C.
Zero balance ±0.1mV/V
Temperature effect on zero balance ±0.1%R.C./10°C
Temperature effect on load ±0.1%R.C./10°C
Safe overload rating 150%R.C.
Temperature compensation range −10–60°C
Safe temperature range −10–60°C
Input terminal resistance 420Ω±40Ω
Output terminal resistance 350Ω±5Ω
Recommended excitation voltage 5V or less
Maximum excitation voltage 10V
Insulation resistance 1000MΩ or more (DC 50V)
IP rating Equivalent to IP64 (Main body only) (Note 1)
Cable φ5-4-core shielded robot cable 5m
  • (Note 1) Sealing performance of the cable outlet may deteriorate due to the change of cable jacket over years.

Model selection

Selection Model Rated capacity Deflection at R.C. H B h Weight
  VLC-50KN218 50kN Approx. 0.13mm 35 40 18 Approx. 1.5kg
  VLC-100KN218 100kN 40 45 20
  VLC-200KN218 200kN 40 45 20
  • *Weight includes cable.

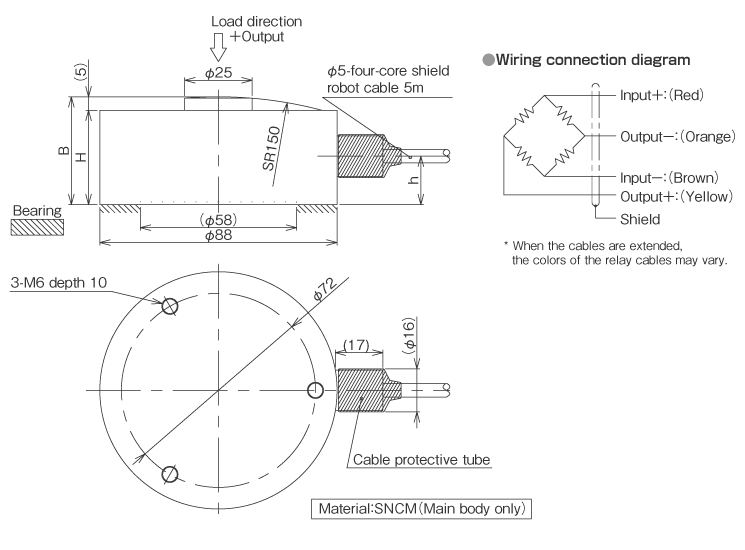

External dimensions (Unit: mm)

External dimensions
