Specialized manufacturer of Digital Pressure Meters and Load Cells

VALCOM CO.,LTD.

Made-to-order

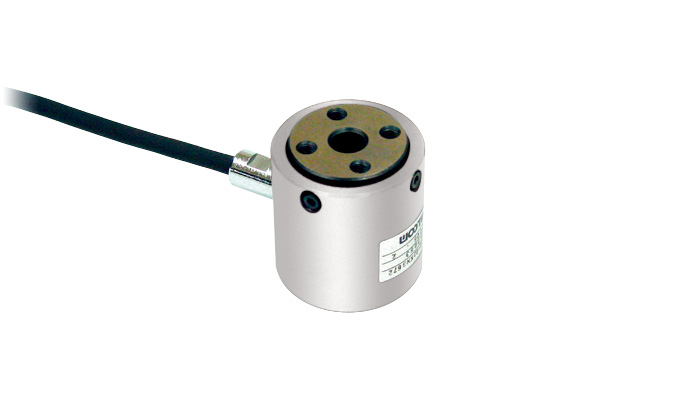

Flat type Load Cell
VLC-024A series
5kN–100kN

  • Compact and flat type easy to be attached to shafts or cylinders.
  • Low cost type

Specifications

Rated output 1mV/V±0.1mV/V
Nonlinearity ±0.5%R.C.
Hysteresis ±0.5%R.C.
Repeatability ±0.3%R.C.
Zero balance ±0.1mV/V
Temperature effect on zero balance ±0.1%R.C./10°C
Temperature effect on load ±0.1%R.C./10°C
Safe overload rating 150%R.C.
Temperature compensation range −10–60°C (No condensation or freezing)
Safe temperature range −10–60°C (No condensation or freezing)
Input terminal resistance 420Ω±50Ω
Output terminal resistance 350Ω±5Ω
Recommended excitation voltage 5V or less
Maximum excitation voltage 10V
Insulation resistance 1000MΩ or more
IP rating Equivalent to IP54 (Note 1)
Cable φ5-4-core shielded robot cable 5m, directly-connected
  • (Note 1) Sealing performance of the cable outlet may deteriorate due to the change of cable jacket over years.

Model selection

Selection Model Rated capacity Deflection at R.C. Weight
  VLC-5KN024A 5kN Approx. 0.02mm Approx. 1kg
  VLC-10KN024A 10kN
  VLC-20KN024A 20kN
  VLC-30KN024A 30kN
  VLC-50KN024A 50kN
  VLC-100KN024A 100kN
  • *Weight includes cable.

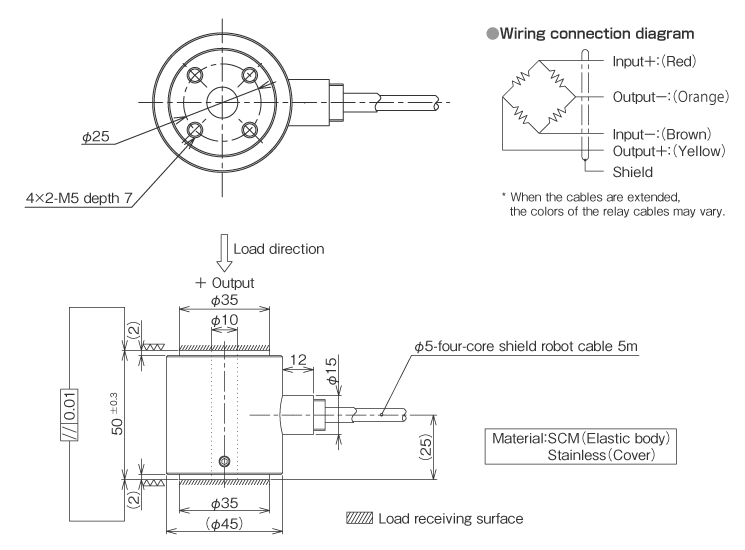

External dimensions (Unit: mm)

External dimensions
