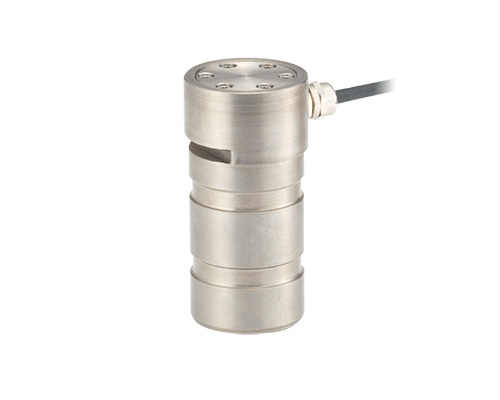

Pin type load cell
VLC-023 series
5kN–100kN

  • Good environmental resistance
  • Abundant variations available
  • Suitable for crane & hoist, steel and paper
  • Made to order

Specifications

Rated output 0.500–1.500mV/V
Nonlinearity ±2%R.C.
Hysteresis ±2%R.C.
Repeatability ±1%R.C.
Zero balance −0.100–0.100mV/V
Temperature effect on zero balance ±0.3%R.C./10°C
Temperature effect on load ±0.5%R.C./10°C
Temperature compensation range −10–60°C (No condensation or freezing)
Safe temperature range −10–60°C (No condensation or freezing)
Input terminal resistance 345.0–355.0Ω
Output terminal resistance 345.0–355.0Ω
Recommended excitation voltage 5V or less
Maximum excitation voltage 10V
Insulation resistance 1000MΩ or more(DC50V)
IP Rating Equivalent to IP65, Sealed with filler (Note 1)
Cable φ7mm 4-core shielded cable 3m
  • (Note 1) Sealing performance of the cable outlet may deteriorate due to the change of cable jacket over years.

Model selection

Selection Model Rated capacity φd A B C φD F G H I J Weight
  VLC-5KN-023 5kN 30 96 28 60 44 10 8 24 4 4 Approx. 0.8kg
  VLC-10KN-023 10kN
  VLC-20KN-023 20kN
  VLC-50KN-023 50kN 40 116 30 83 49 14 10 35 6 9.5 Approx. 1.6kg
  VLC-100KN-023 100kN 50 152 35 112 50 16 12 56 8 7 Approx. 2.5kg
  • *Weight includes cable.

Contact our sales office for other details, special specifications and dimensions.

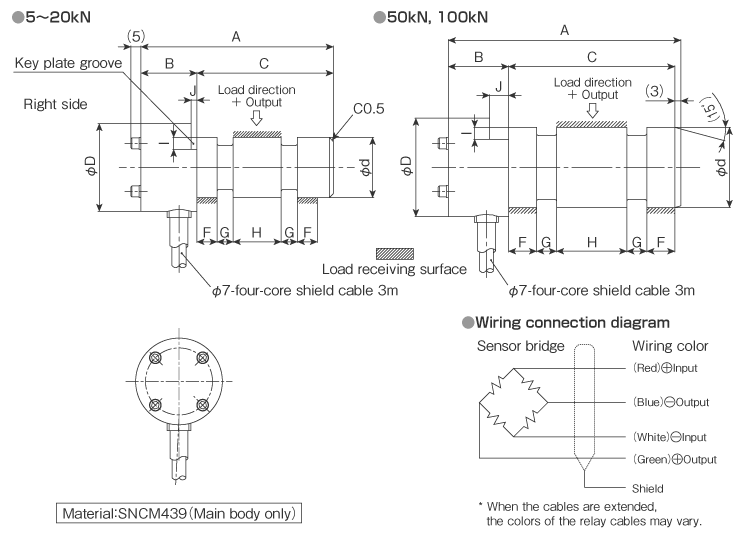

External dimensions (Unit: mm) [Reference]
