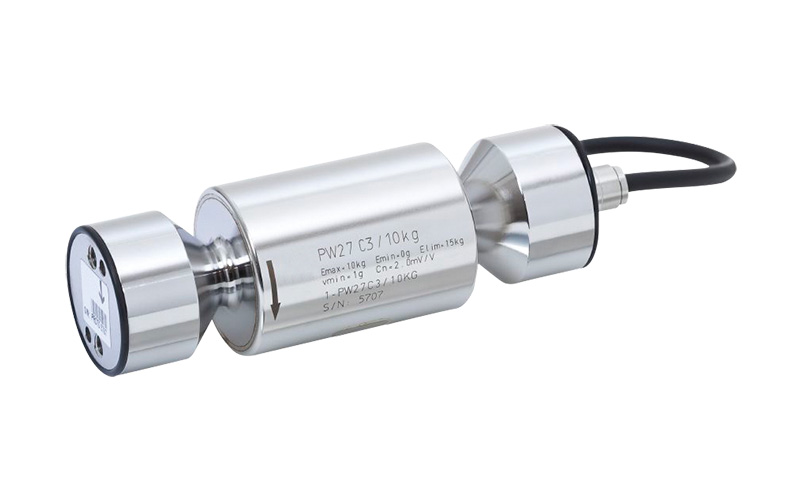

EHEDG-certified load cell
PW27
10kg, 20kg

PW27

Manufacturer:
Hottinger Baldwin Messtechnik GmbH (Germany)

Select a model in combination with
our amplifiers
  • Overload protection (Safe overload rating: 1000%)
  • Aseptic load cell
  • Fully made of stainless steel
  • Special antibacterial cable adopted
  • Clean design, nearly free from edges and fissures
  • Full sealed and welded casing with IP68 or IP69K rating that endures severe cleaning environment

Specifications

Rated output 2.0±0.2mV/V
Nonlinearity ±0.0166%R.C.
Hysteresis ±0.0166%R.C.
Temperature effect on zero balance ±0.0140%R.C./10°C
Temperature effect on load −10–20°C:±0.0117%R.C./10°C
20–40°C:±0.0175%R.C./10°C
Safe overload rating 1000%R.C. (at a point 20 mm away from the center)
Allowable dynamic load 70%R.C. (at a point not more than 50 mm away from the center)
Temperature compensation range −10–40°C (No condensation or freezing)
Safe temperature range −20–70°C (No condensation or freezing)
Input terminal resistance 380±15Ω
Output terminal resistance 360±10Ω
Recommended excitation voltage 5V
Excitation voltage range 0.5–12V (Max. 15V)
Insulation resistance 1GΩ or less
IP Rating Equivalent to IP68/IP69K (Note 1)
Cable φ5.4-6-core Shielded cable 3m
with crimp terminal
  • Creep 30min: 0.017%R.C.
  • (Note 1) Sealing performance of the cable outlet may deteriorate due to the change of cable jacket over years.

Model selection

Selection Model Rated capacity Deflection at R.C. Maximum Load Area Weight
  PW27C3MR-10kg 98.07N 0.18mm 400×400mm Approx. 0.8kg
  PW27C3MR-20kg 196.14N 0.18mm 400×400mm Approx. 0.8kg
  • *Weight includes cable.

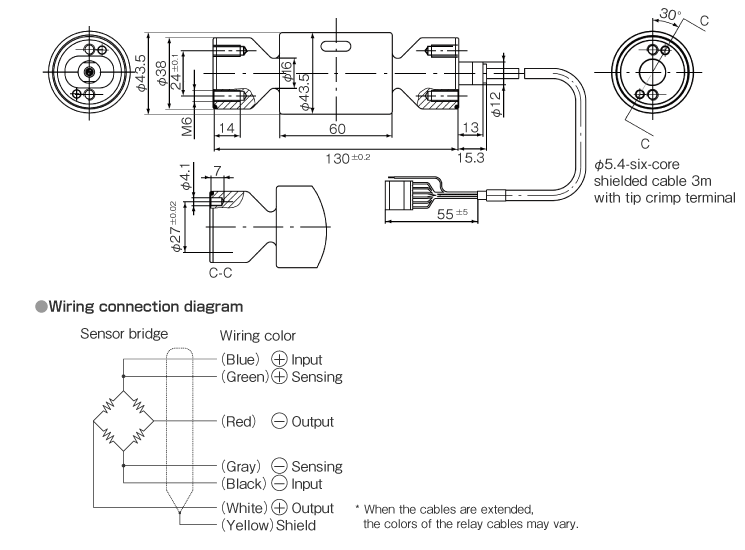

External dimensions (Unit: mm)

External dimensions

What is EHEDG ?

  • The European Hygienic Engineering and Design Group (EHEDG) was founded in 1989 as a consortium of equipment manufacturers, food producers, research and educational institutes, as well as public health authorities, with the common aim of promoting hygiene during the processing and packaging of food products.
  • EHEDG provides certificates for the benefits of equipment suppliers and food producers. EHEDG may authorize the use of the EHEDG certification logo for the equipment complying with the EHEDG hygienic engineering standards.
  • From the hygienic engineering perspective, EHEDG activities focus on "ensuring food safety" in food production industry and "providing practical guidelines for sound food production".
  • EHEDG activities are not limited to Europe. Based on the philosophy of global harmonization, EHEDG is working on many projects in cooperation with ISO, IDF, as well as 3-A, NSF in the United States, and other standard-setting organizations worldwide.
  • To assure and maintain food quality and safety, it is necessary to understand correct hygienic engineering and to maintain and control the production systems. EHEDG has provided 39 guidance documents for proper hygienic engineering for different areas of food production equipment and machinery.
