Load cell
The Principle of Load Cell

Structural schematics for Load Cells

Structural schematics for Load Cells

These sensors use the strain-gauges, which are bonded in to the best suited position of the strained body (cell) by the load.

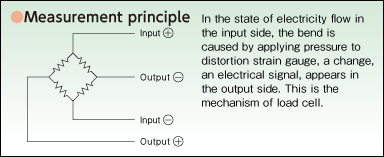

These sensors use 4-gauges (Wheatstone bridge configuration) or more gauges, because of canceling unbalance strain gauges

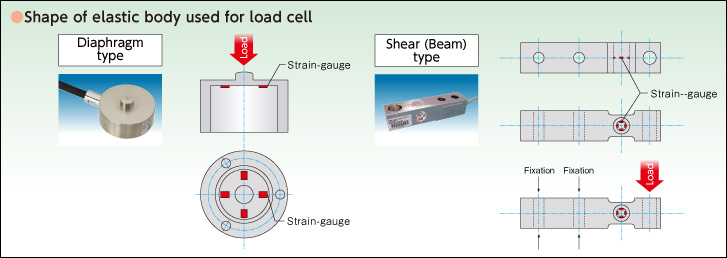

Shape of elastic body used for load cell

Shape of elastic body used for load cell
