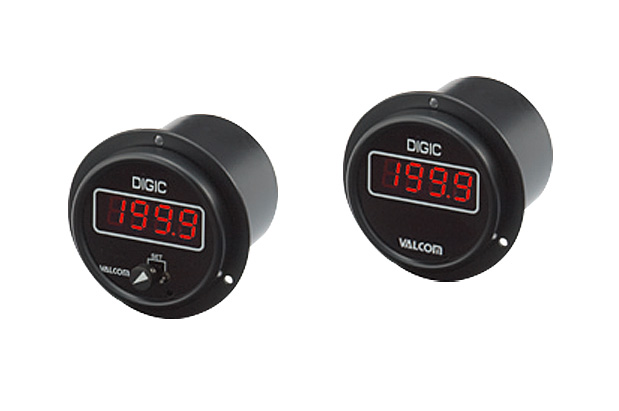

Bourdon-replaceable Round Digital(Pressure/Load) Meter with 1 Comparison Setting Output
VPMC series Sensor separate type Comparison setting output


* Actual products may differ from photo depending on specifications.


Use in combination with pressure sensors or load cells.

  • One comparative setting output included as standard.
  • Easy-to-view large display of 3 ½-digit, approx. 15 mm in character height.
  • VPMC and sensor are calibrated as a pair, including the sensor cable length, and constitute a high-accuracy digital pressure meter.
Can be combined with sensors Can be combined with all models of pressure sensors and load cells.
Sensor specifications Refer to the pages of pressure sensors and load cells.
Calibration of amplifier and sensor VPMC amplifiers and pressure sensors or load cells have been calibrated as a pair.
Amplifiers and sensors have been calibrated as a pair under the same serial number.

Specifications

Display 1999 3 1/2digits High brightness red LED (character height of approx. 15mm)
Display conversion speed 3 times/sec (Standard) Specify 1–15 times/sec.
Accuracy ±0.05%F.S.±1digit
Operating temperature range 0–55°C (No freezing)
Operating humidity range 0–90%RH (No condensation)
Dimensions φ98×74 (D: Protrusions not included)
Weight Approx. 600g (Varies with specification)
Accessories Operating manual 1 copy (Specify English or Japanese.)
Test report 1 copy (*1)

Model Selection

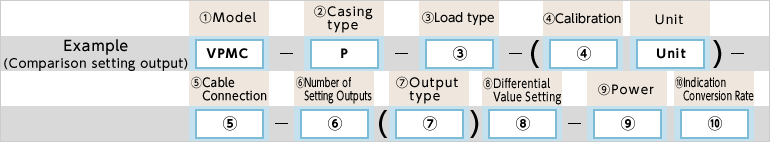

Example

Pressure Sensor or Load Cell Selection

Click here for the specifications of pressure sensors, and click here for the loads cells.
Specify the applicable models.
[e.g.] VPMC-P-101.3kPa(abs)-1VAM(H)△P-1/VHR3-100A (3m cable included)

Selection Cheak Model Specifications
1.Model VPMC Bourdon-replaceable round digital pressure display amplifier with analog output
2.Casing type P Separate
3.Load type   Blank When combined with a pressure sensor, you do not need to specify a model for the load type
  PS Specify only when combined with a load cell Compression
  PL Tersile
  PSL Tersile and compression
*When specifying tensile and compression, enter + or - in the display range.
4.Calibration     Example of calibration range Pressure:
1.000MPa (0–1.000)MPa
500kPa (0–500)kPa
±100.0kPa (-100.0–100.0)kPa
Load:
20.0kN (0–20.0)kN
100.0kN (0–100.0)kN
±1.00kN (-1.00–1.00)kN
5.Cable connection   Blank Enter the shape of the connector on the pressure sensor side to be combined (Blank for the load cell) Standard connector
  W Waterproof connector
  S With directly connected cable
6.Number of setting output - - Output type Response frequency Load resistance
  1VA 1-setting/Photomos Relay output/Inside setting type 0.5msec. or less AC/DC 250V 0.1A
Peak 400V
  1VAM 1-setting/Photomos Relay output/Outside setting type 0.5msec. or less
7.Output type   H High limit output Always specify the output when placing an order
  L Low limit output
8.Differential value setting
(Volume adjustment type)
  Blank None of =△P setting
  △P Hysteresis=△P setting
Hysteresis setting variable range=Within 10% of ther sensor's rated capacity (*2)
9.Power [Power consumption]   1 AC100V[2VA]
  11 AC110V[2VA]
  2 AC200V[2VA]
  22 AC220V[2VA]
  4 DC24V[100mA]
  5 DC12V[100mA]*Not available when analog output is A5
10.Indication conversion rate
(Option)
    Standard 3 times/sec Option   times/sec)
*Specify 1–15 times/sec

Dimensions (Unit: mm)

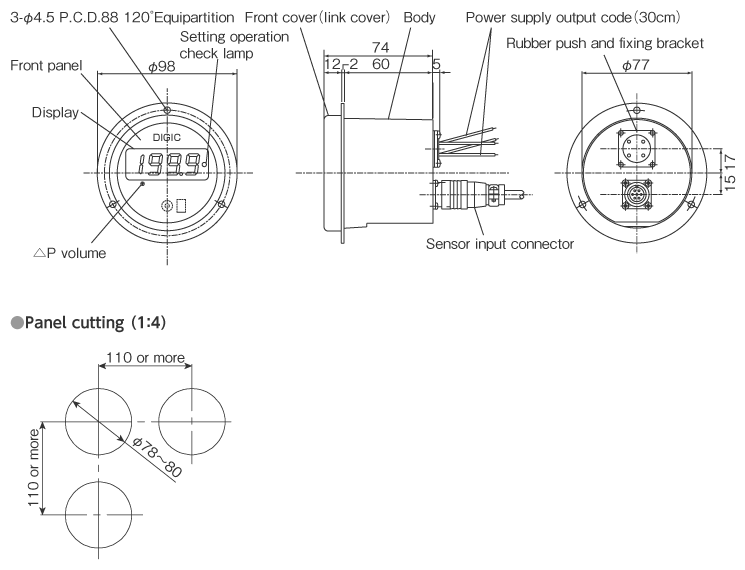

External dimensions

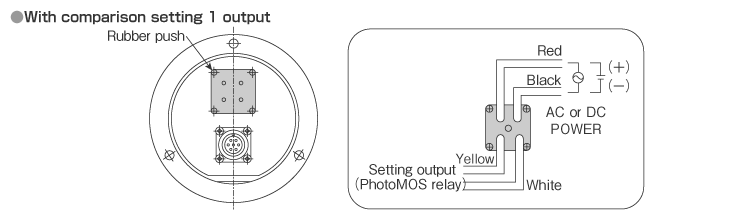

Power, Output Specifications (With comparison setting)

Power, Output Specifications (With comparison setting)

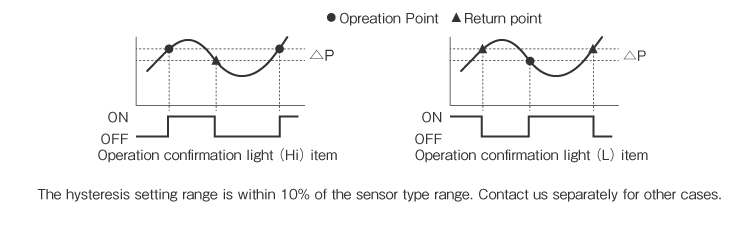

Hysteresis (Volume adjustment)

Hysteresis(Volume adjustment)
